0.5 rpm dc gear motor

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT MOTOR
Model Number	GMP24-370CA	Usage	Other, Paper feeder,Bank equipment,AD equipment
Certification	ROHS, Other, ROHS, QS9000,TS16949	Type	Other, dc planetary gear motor
Torque	35 kg.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Totally Enclosed
Speed(RPM)	10-29 RPM	Continuous Current(A)	0.03 A
Output Power	1.18 W	Voltage(V)	12 V
Efficiency	Other, 65%

0.5 rpm dc gear motor;
1.gear ratio: 3.7-720
2.Speed:10-1500 RPM
3.Large torque and low noise

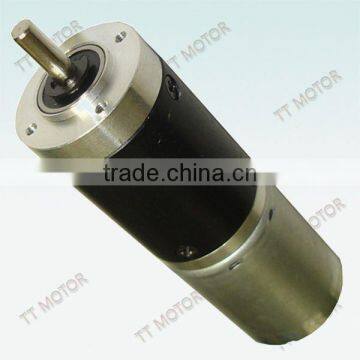

gear motor:GMP24-370CA

24mm dc planetary gear motor of dc12v

0.5 rpm dc gear motor

1.Automatic curtain machines
2.Medical equipment .Rotary machine advertising lights

3.Dc Gear motors can match encoder,3,12ppr

4.size:24.0*60.0 mm,60 mm length mini planetary gear motor

5.Reduction Ratio:1/3.7,1/5.2,1/19, 1/27, 1/51,1/71,1/100,1/139,

1/189, 1/264,1/369,1/516,1/720,1/2671,1/3730

6.We can send samples first,and the delivery time is 15-20 days

Gear motor Technical Data

Gearbox with motor:GMP24-370CA-22170-XXX

Reduction ratio	4	19	27	51	100	189	264	369	981	1370
Length mm	26	28	28	32.5	32.5	37.5	37.5	37.5	42	42
No-load speed rpm	1300	280	195	104	54	29	21	15	5.7	4.1
Rated speed rpm	1200	253	178	94	48	25	18	13	5.1	3.8
Rated torque kg.cm	0.077	0.32	0.45	0.73	1.44	2.49	3.48	4.43	5	5
entary tolerance torque kg.cm	0.6	2.47	3.52	5.7	11.2	15	15	15	15	15

Gearbox with motor:GMP24-370CA-15360-XXX

Reduction ratio	4	19	27	51	100	189	264	369	981	1370
Length mm	26	28	28	32.5	32.5	37.5	37.5	37.5	42	42
No-load speed rpm	1300	280	195	104	54	29	21	15	5.7	4.1
Rated speed rpm	1200	253	178	94	48	25	18	13	5.1	3.8
Rated torque kg.cm	0.077	0.32	0.45	0.73	1.44	2.49	3.48	4.43	5	5
entary tolerance torque kg.cm	0.6	2.47	3.52	5.7	11.2	15	15	15	15	15

Gearbox with motor:GMP24-370CA-12560-XXX

Reduction ratio	4	19	27	51	100	189	264	369	981	1370
Length mm	26	28	28	32.5	32.5	37.5	37.5	37.5	42	42
No-load speed rpm	870	180	130	69	35	19	13.6	10	3.8	2.7
Rated speed rpm	750	158	110	59	30	16	11.4	8	3.5	2.6
Rated torque kg.cm	0.065	0.27	0.38	0.61	1.2	2.1	2.9	4	5	5
entary tolerance torque kg.cm	0.4	1.67	2.36	3.83	7.5	13	15	15	15	15
