Product Details

Place of Origin	Guangdong, China	Brand Name	TT Motor
Model Number	GMP24-TEC2419	Usage	Car, Home Appliance, Other, Car, Home Appliance, optical equipment
Certification	ROHS, Other, ROHS, QS9000,TS16949,ISO14000	Type	Other, Brushless gear motor
Torque	Max 30Kg.cm	Construction	Permanent Magnet
Commutation	Brushless	Protect Feature	Totally Enclosed
Speed(RPM)	Min 5 rpm	Continuous Current(A)	110-160 mA
Output Power	1-5 W	Voltage(V)	7-28 V
Efficiency	Other, 75%

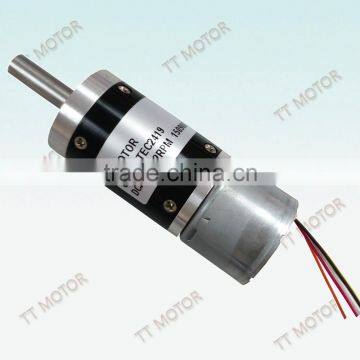

24mm dc Brushless motor with planetary gear box

1.Reduction Ratio:3-1000

2.size: 24.0 X 65.0mm, just 65mm length micro motor

3.Widely used in automatic energy saving bath,

both shaft brushless motor,electrical controlled valve,
oxygen machine,optical equipment,Automat power tools,etc.

Motor Technical Data

Gearbox with motor:GMP24-TEC2419-1262-XXX

Reduction ratio	19	27	51	71	100	139	189	264	369	516
Length mm	36	36	42	42	42	42	49	49	49	49
No-load speed rpm	300	210	120	85	60	44	31	22	15	11
Rated speed rpm	250	175	90	65	45	32	24	17	12	9
Rated torque kg.cm	0.2	0.3	0.6	0.8	1.2	1.6	1.8	2.6	3.6	5
entary tolerance torque kg.cm	1	1.5	2.5	3	5	10	10	10	10	10

Gearbox with motor:GMP24-TEC2419-2487-XXX

Reduction ratio	19	27	51	71	100	139	189	264	369	516
Length mm	36	36	42	42	42	42	49	49	49	49
No-load speed rpm	440	310	160	120	85	60	45	32	22	16
Rated speed rpm	350	245	130	90	65	50	35	25	18	13
Rated torque kg.cm	0.2	0.3	0.6	0.8	1.2	1.6	1.8	2.6	3.6	5
entary tolerance torque kg.cm	1	1.5	2.5	3	5	10	10	10	10	10

We can offer the samples first ,the MOQ is 100 pieces ,and the delivery time is 15-20 days.
