dc brushless electrical door motor
Negotiable
/ Piece
100 Pieces(Min.Order)
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | TEC3650 |
Product Description
Dc brushless door motor
Description:
brushless motor,TEC3650 is widely used in:
1.automatic energy saving bath
2.both shaft brushless motor
3.electrical controlled valve
4.oxygen machine,optical equipment
1.automatic energy saving bath
2.both shaft brushless motor
3.electrical controlled valve
4.oxygen machine,optical equipment
5.Automat cordless power tool,lighting
6.size:36*50mm,50mm lenth micro motor
7.Additional Descriptions:
Built-in driver
PWM Pulse wide speed range
Clockwise/Counter-clockwise rotation
FGSpeed feedback signal
Over-current protection
Over-voltage protection
Under-voltage protection
10000H life time
PWM Pulse wide speed range
Clockwise/Counter-clockwise rotation
FGSpeed feedback signal
Over-current protection
Over-voltage protection
Under-voltage protection
10000H life time
8.Samples can be sent to you for your reference first,
or you can make the samples as your specifications as well.
Data sheet:
Type | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
TEC3650-2465 | 24.0 | 6500 | 200 | 5400 | 200 | 1000 | 11 | 1180 | 2.0 |
TEC3650-2440 | 24.0 | 4000 | 120 | 3200 | 200 | 600 | 6.6 | 1000 | 2.0 |
|
|
|
|
|
|
|
|
|
|

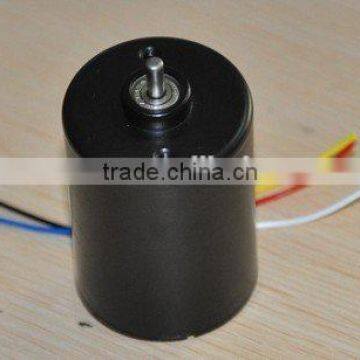

Products picture:
We can offer you the samples for your reference first.
