Home > Products > Brushless gear motor > DC Motor for Radio Control Model
DC Motor for Radio Control Model
- HK
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | GMP22-TEC2419 |
Product Description
Specifications
22mm dc brushless motor with planaetary gearbox1.Small size,low noise
2.High torque,Built-in driver
3.Life time 5000-15000 H

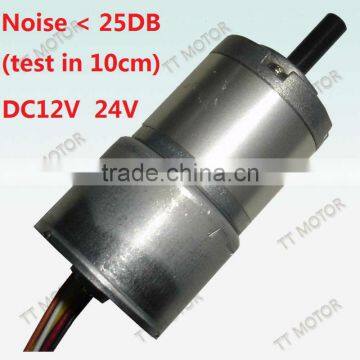

DC Motor for Radio Control Model
22mm dc brushless motor with planaetary gearbox
24mm Planetary Gearbox plus 24mm brushless motor
1.Widely used in pump robot,lock. Auto shutter, USB fan,Slot machine,Money detector,
Coin refund devices,Currency count machine, Towel dispensers,
Automaitic doors,Peritoneal machine,Automatic TV rack,
Office equipemt ,Household appliances,Automatic
2.Voltage:12,24V
3.Brushless gear motor Speed: 3-1500RPM
4.gear motor Stall Torque: Max 30kg.cm
5.Low noise,low current no spark
6.Small size,low noise
7.High torque,Built-in driver.
8.Can be equipped with gearbox,Reduction Ratio:3-1000
9.size:24*65 mm,just 65mm length mini motor
10.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.
Gear motor Technical Data
Gearbox with motor:GMP22-TEC2419-1262-XXX
Reduction ratio | 16 | 62 | 84 | 104 | 231 | 316 | 370 | 455 | 1014 |
|
Length mm | 18.1 | 21.7 | 21.7 | 21.7 | 25.4 | 25.4 | 25.4 | 25.4 | 29 |
|
No-load speed rpm | 360 | 100 | 73 | 58 | 25 | 18 | 15 | 13 | 6 |
|
Rated speed rpm | 300 | 75 | 55 | 45 | 20 | 15 | 12 | 10 | 4.5 |
|
Rated torque kg.cm | 0.2 | 0.7 | 1.0 | 1.2 | 2.3 | 3.0 | 3.7 | 4.5 | 8 |
|
entary tolerance torque kg.cm | 0.5 | 1.5 | 2.5 | 3.5 | 7 | 9 | 9 | 9 | 9 |
|
Gearbox with motor:GMP22-TEC2419-2487-XXX
Reduction ratio | 16 | 62 | 84 | 104 | 231 | 316 | 370 | 455 | 1014 |
|
Length mm | 18.1 | 21.7 | 21.7 | 21.7 | 25.4 | 25.4 | 25.4 | 25.4 | 29 |
|
No-load speed rpm | 500 | 135 | 100 | 82 | 37 | 26 | 23 | 18 | 8 |
|
Rated speed rpm | 420 | 100 | 80 | 65 | 30 | 22 | 18 | 15 | 6.9 |
|
Rated torque kg.cm | 0.2 | 0.7 | 1.0 | 1.2 | 2.3 | 3.0 | 3.7 | 4.5 | 8 |
|
entary tolerance torque kg.cm | 0.5 | 1.5 | 2.5 | 3.5 | 7 | 9 | 9 | 9 | 9 |
|
