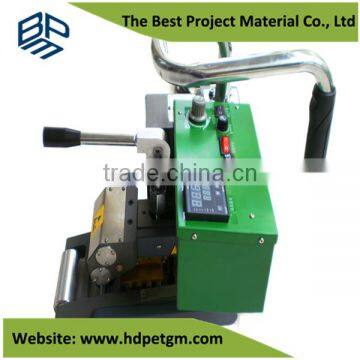

Best Price Hdpe Pvc Geomembrane Liner Welding Machine for Pool

Geo-membrane welder is a new welding machine which is developed by our company. They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP

The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.

This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.

Technical parameters

Voltage (V): 220V

Frequency (Hz): 50/60Hz

Power (P): 1800W

Welding speed (V): 0.5-5m/min Adjustable

Heating temperature (T): 0-450°C Adjustable

Thickness of material to be welded: 1.0mm-3.0mm

Overlap width: 12cm

Welding width: 15mm×2, interior cavity 15mm

Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine

Dimensions:   L50cm x W37cm x H40cm

Net Weight: 13kg

Gross Weight: 17.5kg

Insulation class: class II

Main Components:

Maintenance

Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.

 Packed in aluminum box or carton box as per your requirements.
