Specifications

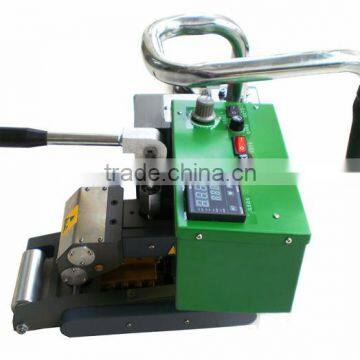

              1800w HDPE geomembrane hot wedge welder

 Discription:

Geo-membrane Overlap Wedge Welder

    Summarize

Geo-membrane welder can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused

material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP.

   Technical Parameter

1.  Output Voltage:220V

      Frequency:50Hz

2,Power:1800W

3,Welding speed:0.5~5m/min

4  The temperature of Heating up:0~450°C

5,The thickness of welding material:1.0mm~3.0mm(Single membrane thickness)

6,Welding width:14mm×2   Interior Cavity :16mm

7,Welding intention≥85%Maternity material(Resistance to the direction of cutting)

8,Joint width:120mm

9 .Machine body weight:13kg

    Working principle

Electric machine carried with above and below pressure wheel and turn it  through speed-slow box and chain steel, and heating the bracket

up and turn thermal wedge to plug in.

 Maintenance

Please clean the dunghill in the thermal wedge and the mud when not using it.
