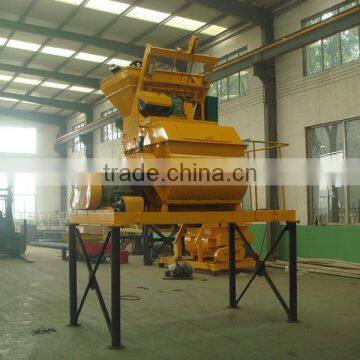

JS model concrete mixer machine

FOB Price

USD $4,500 - $6,800 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port qingdao /tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Model Number	JS500/750
Motor Power	5.5KW	Mixing Power	18.5KW
Charging Capacity	0.56m³	Reclaiming capacity	0.35 m³
Speed of Mixing Drum	35r/min	Water Supply Mode	auto
Working Cycle Period	60s	Discharge Way	Automatic
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

concrete mixer machine
1.high efficiency
2.low energy consumption
3.easy maintenance

1.Stir homogenously
2.Revolve steady, easy to operate
3.Short working cycle period

1.Introduction:

1)JW350 concrete mixer is kind of mandatory mixer, automatic material feeding, automatic water calculate and feeding.

2)This machine can mix dry concrete, plasticity concrete and lightweight aggregate concrete, can be used in usual building site, road construction, bridge project and small and middle concrete components factories.

2.Advantages:

1)Tight structure,

2) Easy operating process

3)Low noise, low consume

4)High quality mixing work, high productivity

Types		JS500	JS750
Feed Volumes(L)		800	1200
Discharging Volumes(L)		500	750
Productivity(m3/h)		25-30	30-35
Maximum Aggregate Size (mm)		80/60	80/60
Agitating vane	Stirring Speed(r/min)	30.4	29.3
Agitating vane	Qty(kw)	2*7	2*7
Agitation Motor	Model	Y180M-4	Y200L-4
Agitation Motor	Power(kw)	18.5	30
Lifting Motor Model	Model	132M-4	132M-4
Lifting Motor Model	Power(kw)	5.5	7.5
Pump	Model	WB-50-40-95	WB-50-40-95
Pump	Power	0.75	0.75-1.1
Electric putter	Model	DT500-3011	DT500-3011
Electric putter	Power	1.1	1.1-1.5
Hopper lifting(m/min)		34	34
Overall Dimension(LWH)m	On transportation	2.522.8572.145	3.63.42.8
Overall Dimension(LWH)m	On working	4.643.035.78	3.63.45.8
Machine weight(kg)		4160	7000
