Home > Products > Product 1 - Paper Making Machine > Gongyi City Meida Toilet Tissue Paper Making Machine Install Abroad Whatsapp +8618537138115
Gongyi City Meida Toilet Tissue Paper Making Machine Install Abroad Whatsapp +8618537138115
- toilet tissue paper making machine shipped from qingdao china
- T/T Credit Card PayPal
You May Like
-
Gongyi City Meida High Quality Full Automatic Hemp Toilet Paper Making Machine Cheap Price TT LC Payment
-
Cheap Price Small Tissue Paper Making Machine Waste Paper Virgin Pulp,straw,wood Etc as Raw Materials for Africa
-
High Quality Small Scale Toilet Paper Making Machine Factory Price
-
Home Use Mini Toilet Paper Making Machine Capacity 500kg per Day Trade Assurance Accept
-
Second Hand Used Tissue Paper Making Machine Complete Sets From Pulp Equipment Until Paper Making Equipment
-
Best Price Paper Napkin Making Machine Engineer Install Abroad Welcome to See Running Machine
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Other, toilet tissue paper making machine | Place of Origin | Henan, China | |
| Brand Name | Meida | Model Number | 1575mm | |
| Voltage | 380v | Power(W) | 50000w | |
| Dimension(L*W*H) | 2950*1320*1500mm | Weight | 30tons | |
| Certification | Other, ISO9000 | Warranty | 12 MONTH | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Gongyi City Meida toilet tissue paper making machine Install Abroad Whatsapp +8618537138115
The basic technical parameter of - toilet tissue paper making machine
| 1 model | 1575 toilet tissue paper making machine |
| 2. Output paper | Toilet paper,napkin paper |
| 3. Gram weight(g/m2) | 12—48g/m2 |
| 4. Net paper width (mm) | 1575mm |
| 5. Design work speed (m/min) | 100----150m/min |
| 6. Work speed (m/min) | 80--120m/min |
| 7. Daily capacity (t/d) | 3-4t/d ( based on different size dryer ) |
| 8. Drive way | AC variable frequency, section drive |
| 9 Model design | Box structure, operation by left or right hand |
| 10. Sizing way: | Inversion Pulping |
| 11. Matched felt | Normal Chemical fiber woven felt |
| 12. Forming wire type | Stainless Steel plate |
| 13 structural layout | Monolayer |
| 14. Power (v, HZ) | standards 380v/50HZ/3 phase ( if need we change voltage,please tell us ) |
| 15. Pneumatic medium | Compressed air, 0.6 MPa, level 3 industrial compressed air standards |
| 16.Steam | 0.3MPa-0.6Mpa |
| 17. Water quality standard | PH-7, total alkalinity(take CaCO3 as example, mg/L)≤350 |
| 18. Factory area: | 300-400m2 |
| 19.Worker number | 5-8 worker |
| 20. Raw material | Rice straw, wheat straw, wood, waste paper, virgin pulp ( different raw materials need use different paper pulp machines, so better tell us your raw materials in advance) |
The Raw Materials
Notes : raw materials can be various, but different raw materials need different paper pulping machine ,so whole line price is different too

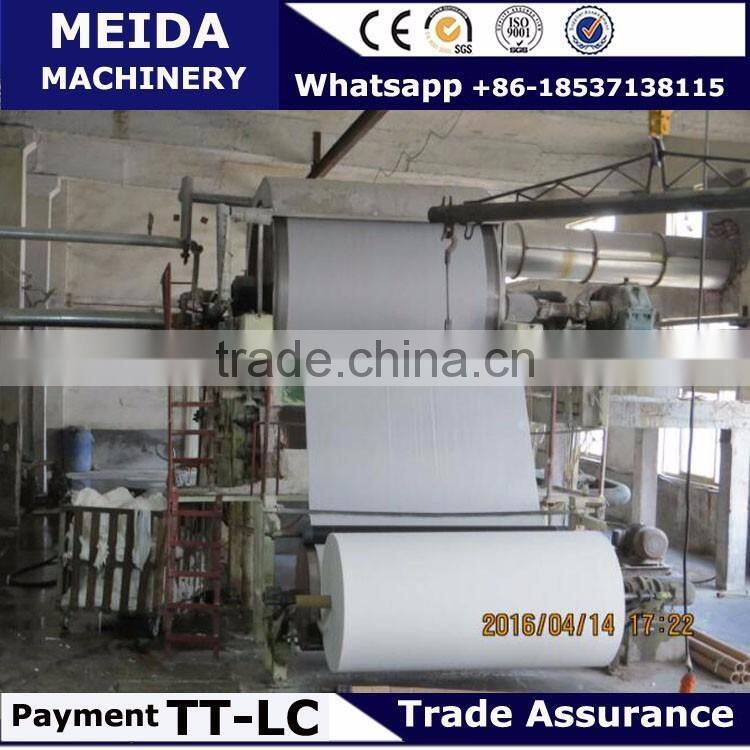

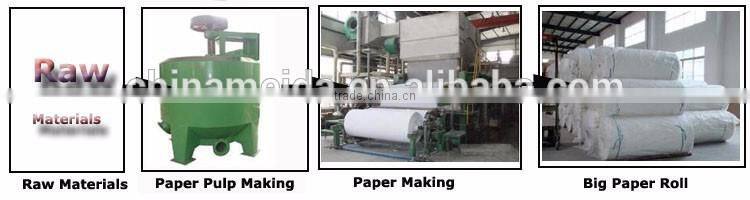

The Jumboo Paper Roll Making Process

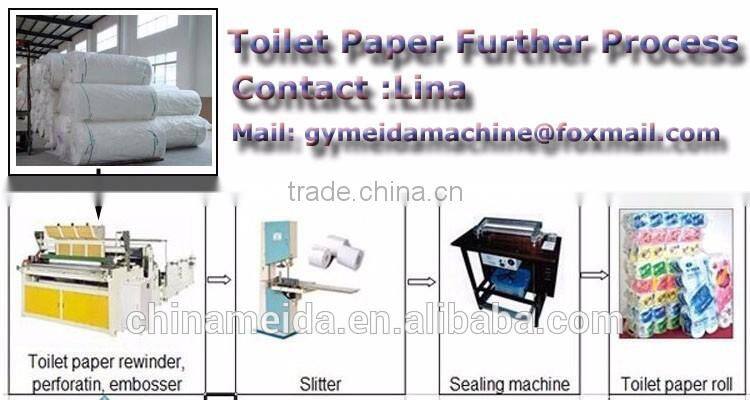

The Small Toilet Paper Roll Making Process

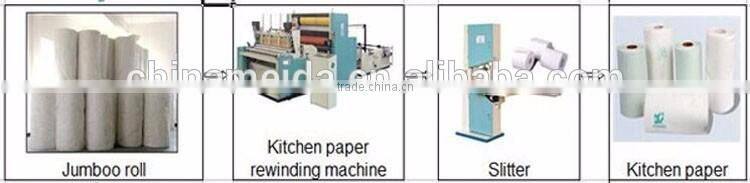

The Kitchen Paper Roll Making Process

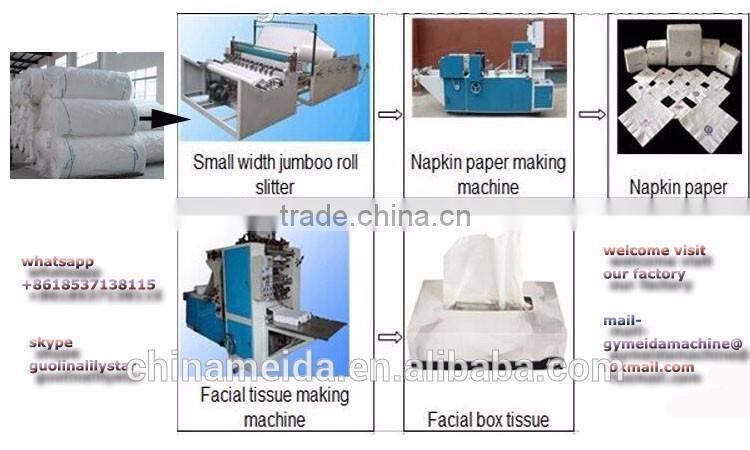

The Napkin Paper/Facial Boxed Paper Making Process

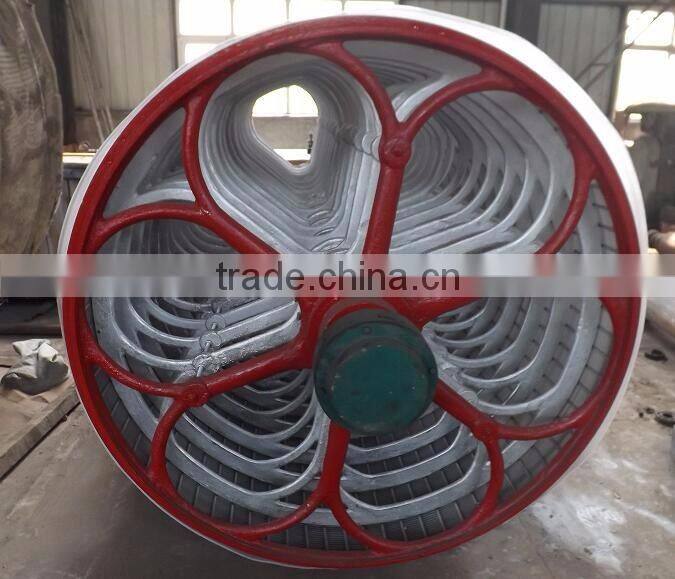

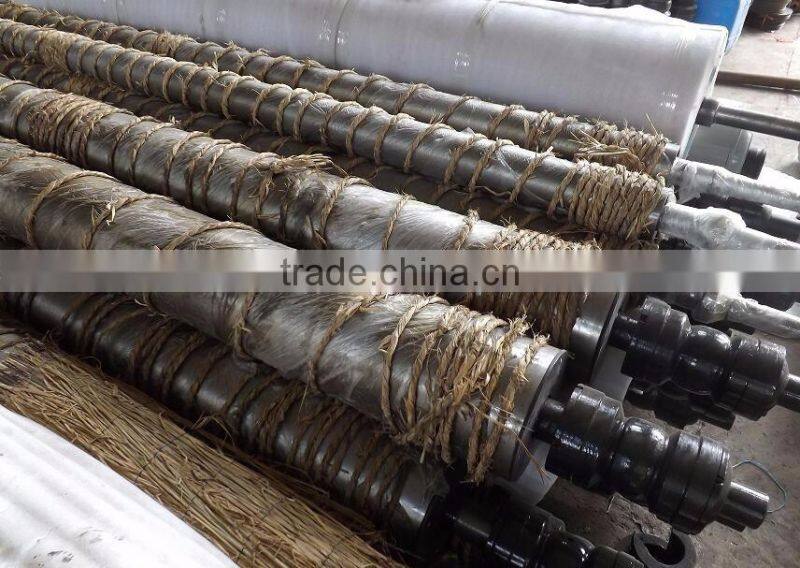

| Machine Parts-toilet tissue paper making machineName: Cylinder
Materials: Stainless steel structure for the film, cast iron spokes Bearing :113622(3618) |

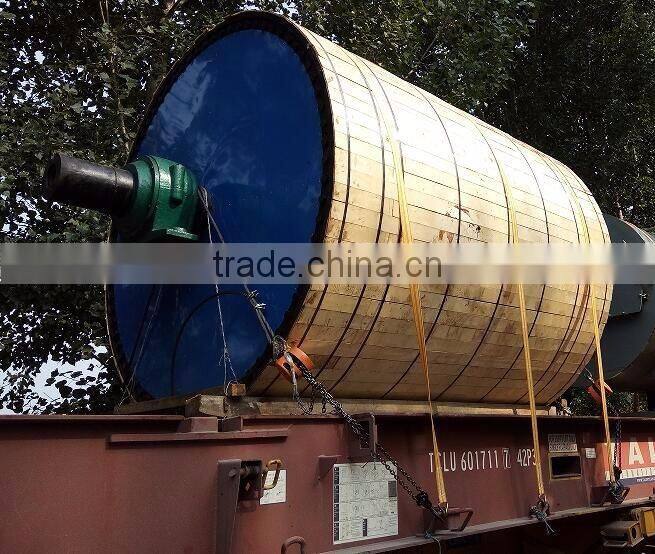

Main Parts-toilet tissue paper making machineName : dryer Cylinder block material: HT200 | |
| Machine Parts-toilet tissue paper making machineName: couch roller rubber hardness:shore A38±2° Cladding thickness: 25mm Spindle nose: 45#steel for thermal refining Bearing: 113620 |

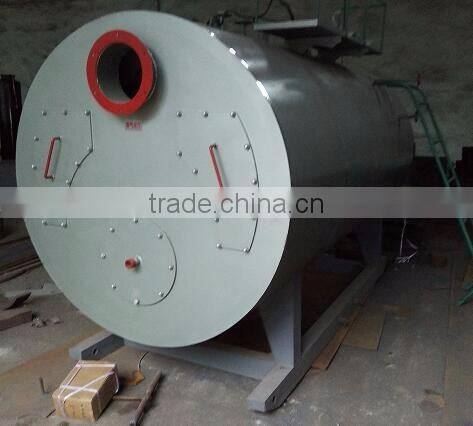

Main Features-toilet tissue paper making machineName: boiler
Boiler style : GAS / OIL / COAL 3 style | |
Pre-Sales Service -toilet tissue paper making machine* Inquiry and consulting support. * Come to our factory to see machine * View local customers' running factory
|
After-Sales Service-toilet tissue paper making machine* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. |
Contact
For more details of Gongyi City Meida toilet tissue paper making machine Install Abroad Whatsapp +8618537138115
Please Contact Whatsapp +8618537138115
The toilet tissue paper making machinewith models we have :
600/787/1092/1200/1575/1600/1760/1880/2400/2880/3200/etc for choose etc
Welcome contact us by tell us more detailes include your raw materials,your final products, your daily capacity to help us suggest and make best quote for you
Payment : TT /LC
kraft paper make machine ,click to see more models
toilet paper make machine, click to see more models
