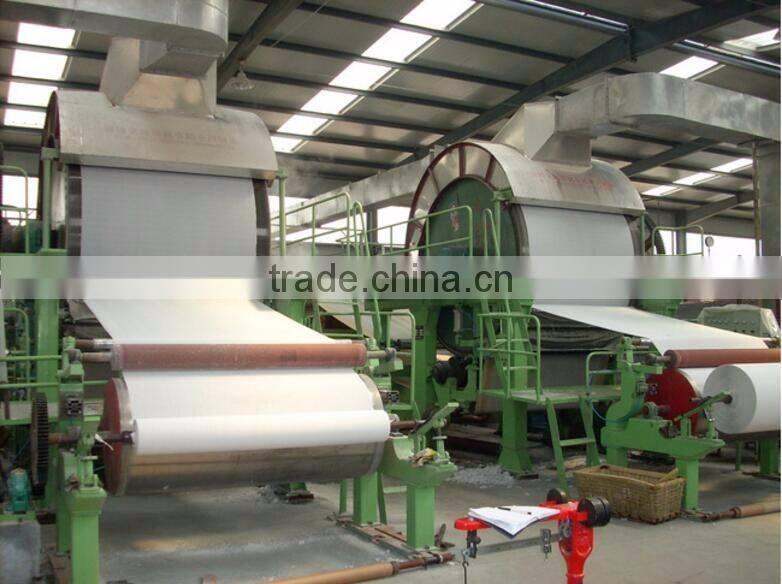

Toilet tissue paper production line waste paper recycle virgin pulp bamboo wheat straw as raw materials

Toilet tissue paper production line waste paper recycle virgin pulp bamboo wheat straw as raw materials

The basic technical parameter of -  Toilet tissue paper production line
1. 1760 Toilet Paper Making Machine
2. Output paper: Toilet paper
3. Gram weight(g/m2)12—48g/m2
4. Net paper width (mm): 1760mm
5. Design work speed (m/min):100----150m/min
6. Work speed (m/min): 80--120m/min
7. Daily capacity (t/d): 3-6t/d ( based on different size dryer )
8. Drive way: AC variable frequency, section drive
9.Model design: Box structure, operation by left or right hand
10. Sizing way: Inversion Pulping
11. Matched felt: Normal Chemical fiber woven felt
12. Forming wire type: Stainless Steel plate
13 structural layout: Monolayer
14. Power (v, HZ): standards 380v/50HZ/3 phase ( if need we change voltage,please tell us )
15. Pneumatic medium: Compressed air, 0.6 MPa, level 3 industrial compressed air standards
16.Steam: 0.3MPa-0.6Mpa
17. Water quality standard: PH-7, total alkalinity（take CaCO3 as example, mg/L）≤350
18. Factory area: 300-400m2
19.Worker number: 5-8 worker
20. Raw material: Rice straw, wheat straw, wood, waste paper, virgin pulp ( different raw materials need use
different paper pulp machines, so better tell us your raw materials in advance)

Contact

For more details of Toilet tissue paper production line waste paper recycle virgin pulp bamboo wheat straw as raw materials

Please Contact Whatsapp +8618537138115

The Toilet tissue paper production line  with models we have :
600/787/1092/1200/1575/1600/1760/1880/2400/2880/3200/etc for choose etc

Welcome contact us by tell us more detailes include your raw materials,your final products, your daily capacity to help us suggest and make best quote for you

Machine Parts-Toilet tissue paper production line

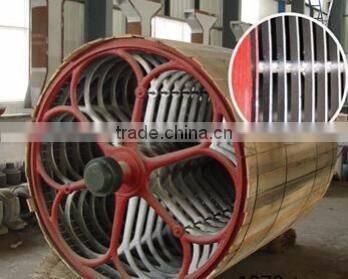

Name: Cylinder

Materials:

Stainless steel structure for the film, cast iron spokes

Main Parts-Toilet tissue paper production line

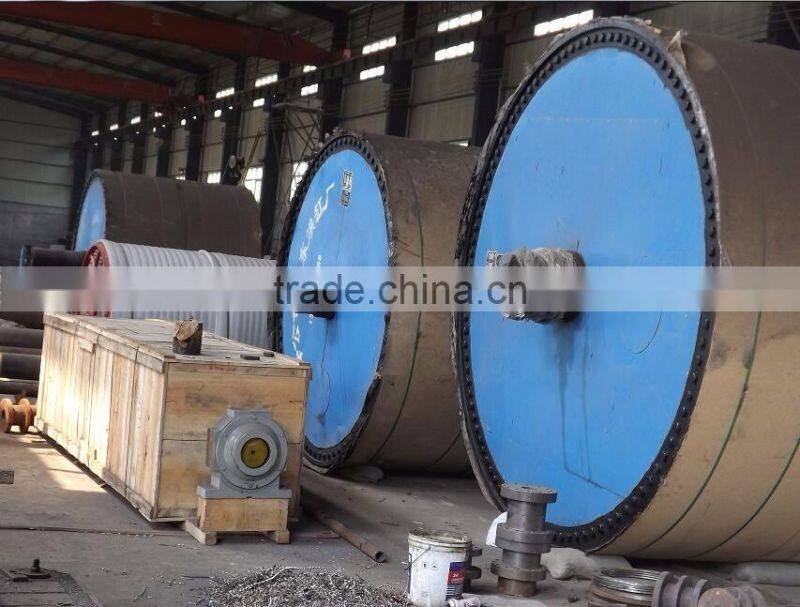

Name : dryer
Materials:

Cylinder block material: HT200
Cylinder head: HT250
Surface hardness: HB220
Surface roughness: ≤0.9 mu
The highest work pressure: 0.35MPa
Hydrostatic pressure: 0.8MPa
Bearing: 3113168

Machine Parts-Toilet tissue paper production line

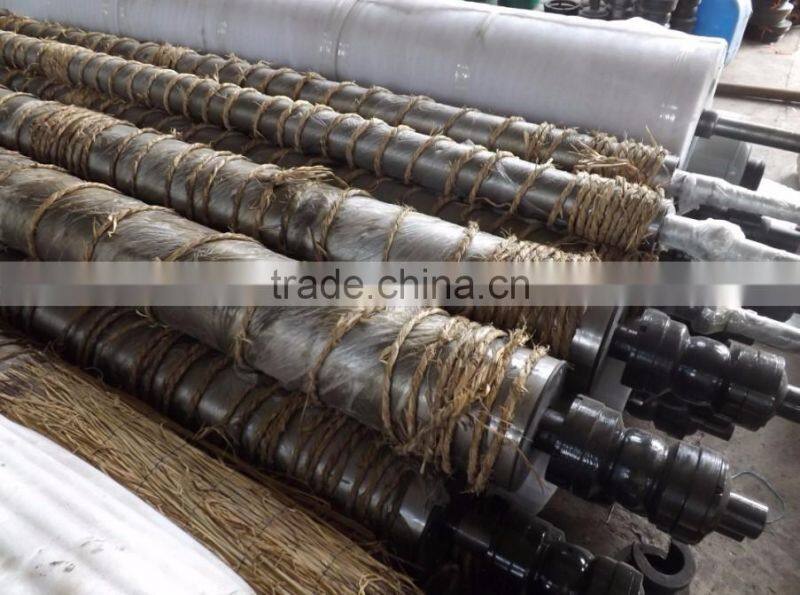

Name: couch roller
Materials:

Main Features-Toilet tissue paper production line

Name: rack
Materials : Rack beams, pressure arm for the Q235 steel plate or cast iron box-type structure
