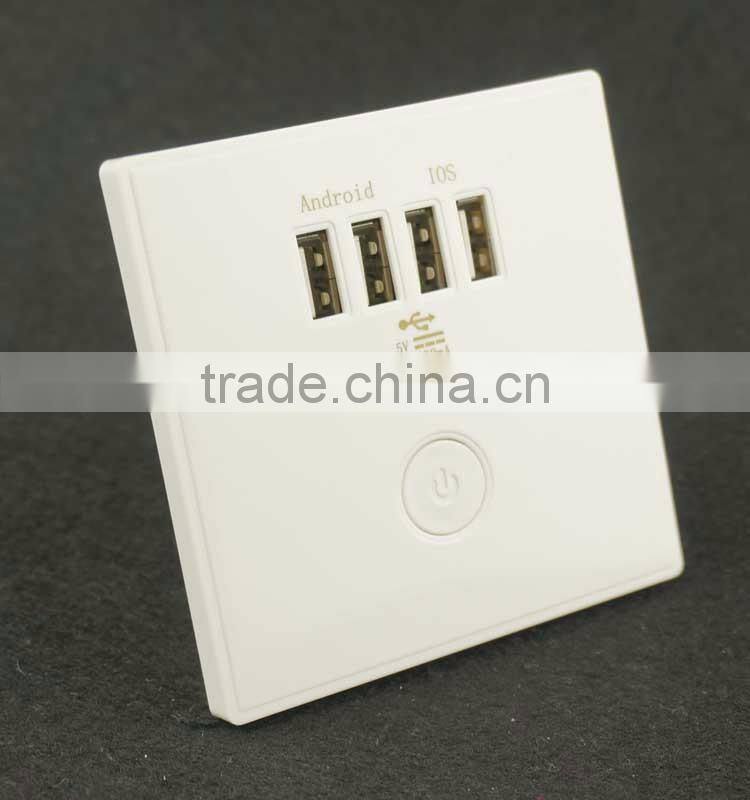

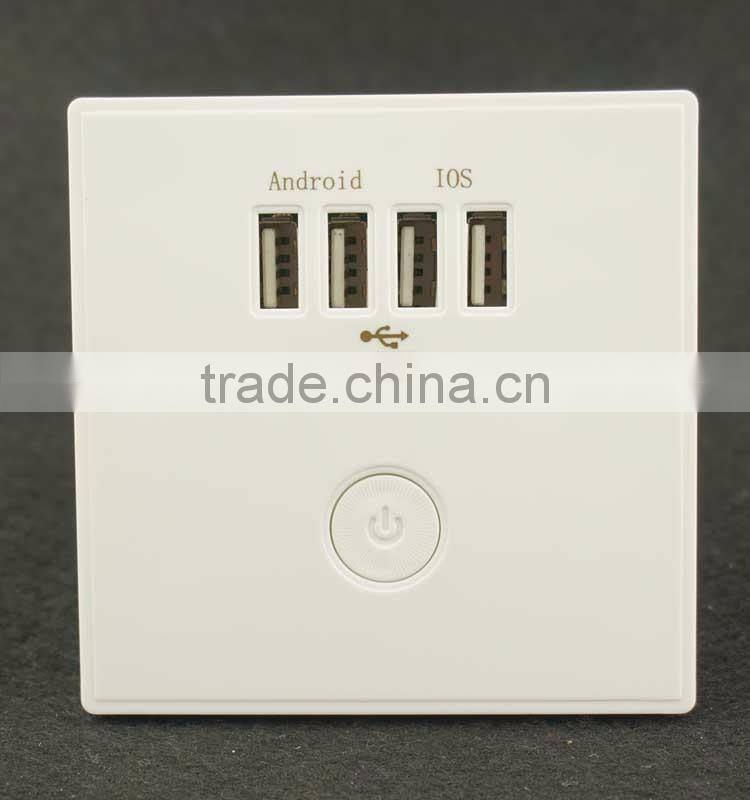

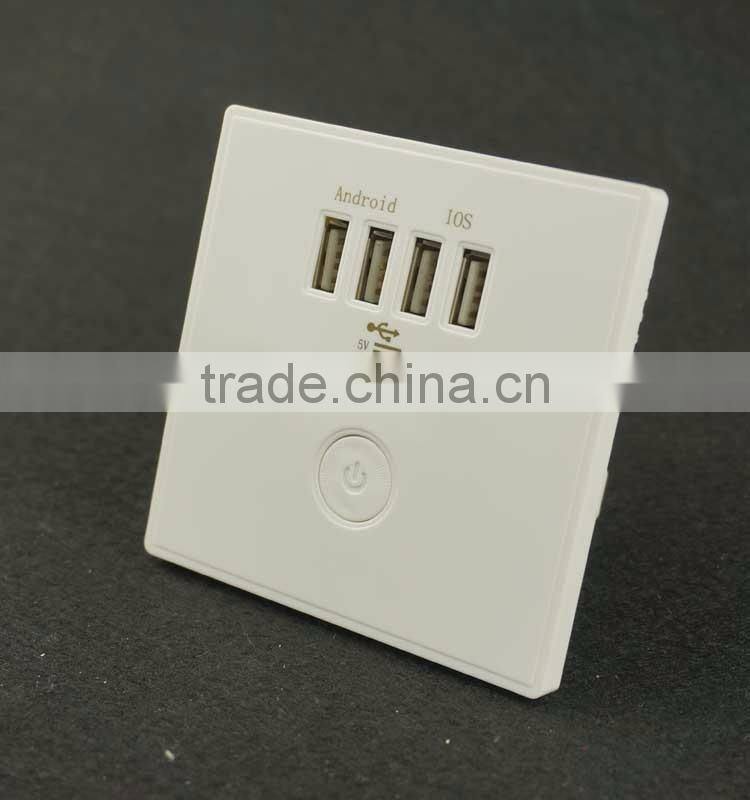

Universal Wall Socket Usb Charger With 4 Usb Power Charger

Specifacation:

INSTALLATION  INSTRUCTIONS

  Introduction

1. This product is a 10A250V wall receptacle with USB charging function. Charge most of your

portable devices directly from the USB wall socket without using the wall receptacle .

No adapter required. USB socket is suitable for charging most 5V/3.1A, 5V/4.8A, 5V/6.0A devices ,IOS, Android, Windows Phone .

 Specifications

  Dimension : 86*86*40mm

Mounting hole distance : 60mm

  Color :  White

Weight : 5V/3.1A /100g, 5V/4.8A /130g, 5V/6.0A /143g

  Working Voltage : 13A ,110~220 V

Working Temperature : -15℃ to 40℃

  USB Output : DC 5V/3.1A, 5V /4.8A, 5V /6.0A

Testing Standard : EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009,

EN 61000-3-3:2008 , EN 60884-1:2002, EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

 CAUTION

1. Use copper or copper clad wire only . Do not use it with aluminum wire .

2. To prevent severe shock or electrocution always turn the power OFF at the service panel

before working with wiring .

3. Do not install in wet locations or in a location where the receptacle can get splashed with liquid .

4. Indoor use only .

5. Designed for Residential / General-Purpose, All Smart Devices builds in USB Power supply.

6. This product is designed with a total charging capacity of (3.1, 4.8, 6.0) amps .

7. Drawing a combined current of greater than (3.1, 4.8, 6.0) from the two USB charging

  ports will result in overheating and damage to the device .

  Wiring

Caution: To prevent severe shock or electrocution always turn the power OFF at the service panel befor working with wiring .

 Stripping the insulation from the wire : Stripping the insulation from the wire about 0.4 inch .

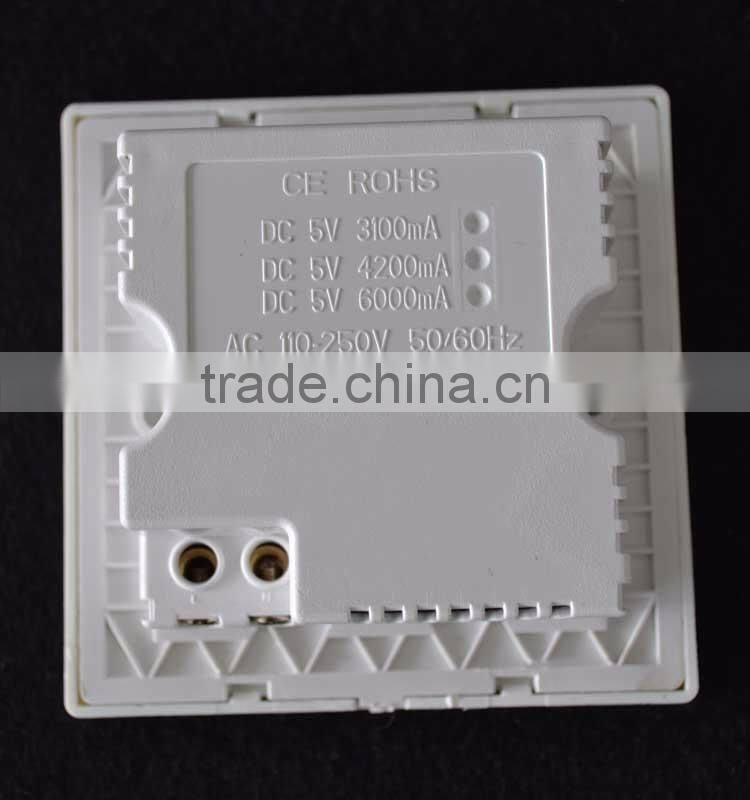

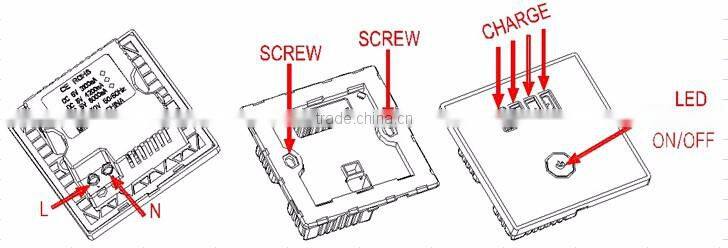

 Connecting the Neutral and Live Wires:

   1. Turn the power “OFF”.

   2. Loosen both side screws using a flat screw-driver .

   3. Insert neutral and live wire into the opening marked with N , L.

   4. Tighten both side screws using the flat screw-drive.
