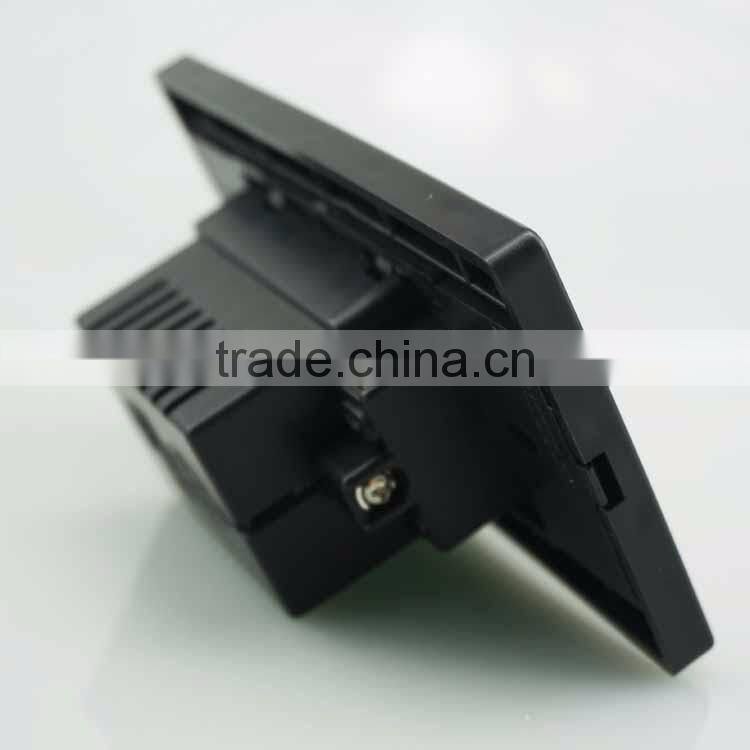

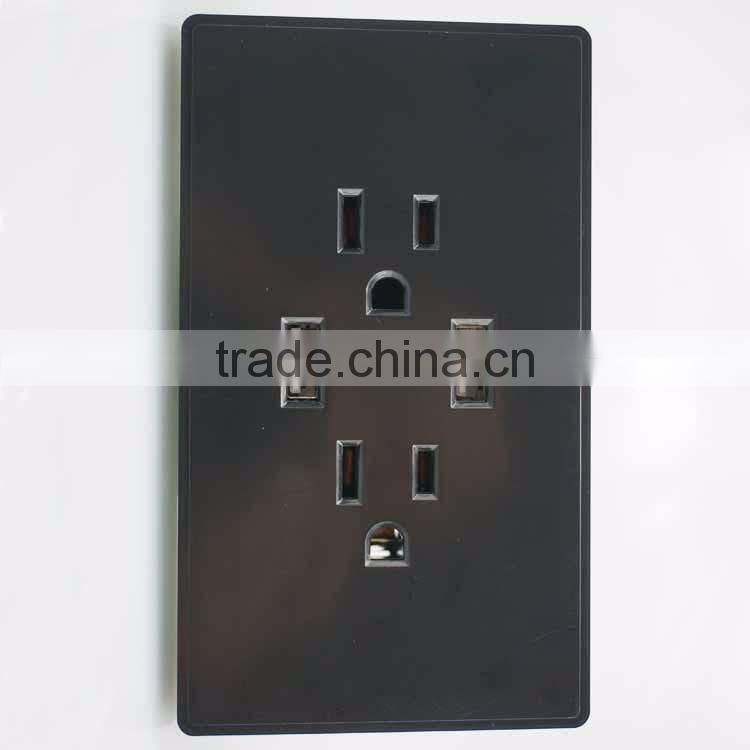

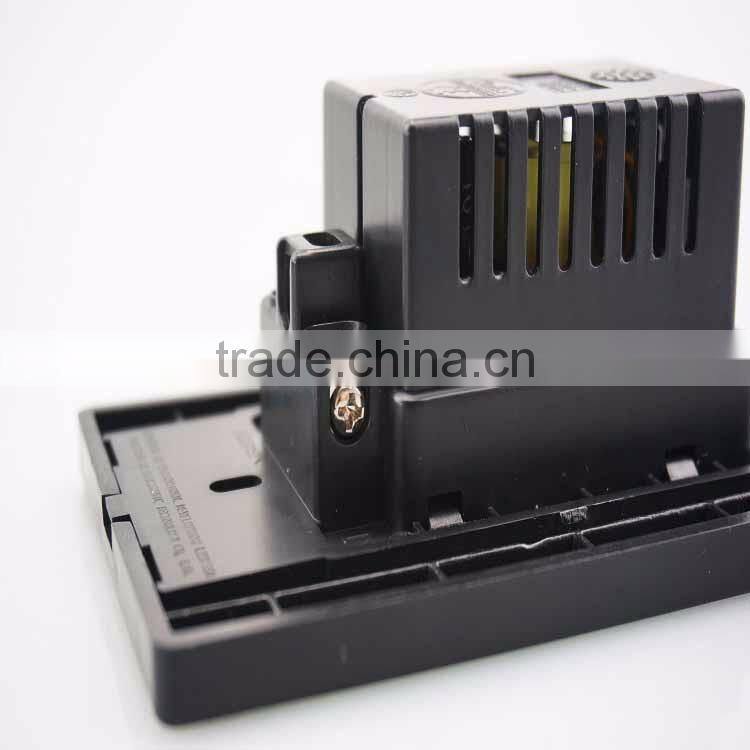

US Smart Electric Switch and Socket With Dual Usb Wall Socket Plug

Specifacation:

INSTALLATION  INSTRUCTIONS

  Introduction

1.This product is a 13A wall receptacle with USB charging function . Charge most of your portable devices directly from the USB wall socket without using the wall receptacle. No adapter required . USB socket is suitable for charging most 5V/1.0A, 5V/2.1A devices, Android, IOS or Windows Phone .

2. Specifications:

Dimension : 119*69*40mm

Color :  White, Silver, Gold, Black

Mounting hole distance : 82mm

  Working Voltage : 15A ,125V

  Working Temperature : -15℃ to 40℃

  USB Output : DC 5V2.1A

Testing Standard :

  CAUTION

1. Use copper or copper clad wire only . Do not use it with aluminum wire .

2. To prevent severe shock or electrocution always turn the power OFF at the service panel before working with wiring .

3. Do not install in wet locations or in a location where the receptacle can get splashed with liquid .

4. Indoor use only .

5. Designed for Residential / General-Purpose, All Smart Devices builds in USB Power supply.

6. This product is designed with a total charging capacity of  2.1amps .

7. Drawing a combined current of greater than (1.0, 2.1) from the two USB charging ports will result in overheating and damage to the device .

  Wiring

 Caution : To prevent severe shock or electrocution always turn the power OFF at the service panel before working with wiring .

 Stripping the insulation from the wire : Stripping the insulation from the wire about 0.4 inch .

 Connecting the Neutral, Live and Earth Wires:

  1.Turn the power “OFF”.

  2.Loosen both side screws using a flat screw-driver .

  3.Insert neutral, live and earth wire into the opening marked with N ,L and E.

  4.Tighten both side screws using the flat screw-drive.

 Connecting the Green Wire : Loop the wire clockwise 2/3 of the way around the screw .
