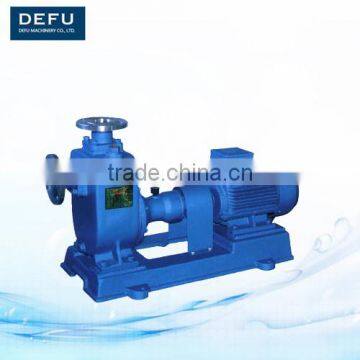

Self-priming centrifugal oil pump with electric engine
- 500 Set / Sets per Month
- Shanghai or Ningbo
- Credit Card
You May Like
-
Wenzhou DEFU CYZ series Self-priming explosion proof centrifugal pump crude oil pump
-
Self Priming Dirty Oil Pump/Self Priming Sewage Pump/Self Priming Oil Pump
-
Wenzhou DEFU Brand CYZ-A self-priming centrifugal oil pump, horizontal & vertical type
-
CZY Series Horizontal Self-priming Centrifugal Lube Oil Pump
-
DEFU Brand CYZ-A Self Priming Dirty Water Pump/Self Priming Sewage Pump/Self Priming Oil Pump
-
DEFU Brand Self-suction Centrifugal Oil Pump/CYZ-A Series Self Priming Oil Pumping Machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEFU | |
| Model Number | CYZ-A | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Oil | |
| Power | Other, Electric, Electric motor/diesel engine | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, oil |
Product Description
Specifications
Power: From 1.1KW to 132KWMax. Head: From 20m to 55m
Max. Flow: From 3.2m3/h to 550
Self-priming centrifugal oil pump with electric engine
Product Description
CYZ-A series self priming centrifugal oil pump is a new modified centrifugal pump which is developed on the
basis of absorbing and overseas advanced technology of the same product and combining many years design
and manufacturing experience of our company.
It is widely used to transport gasoline, kerosene, diesel oil, oil for aviation in oil warehouse, oil station, oil tanker,
dock tank truck, airdrome etc. It can also be used in chemical industry, pharmaceutics, brewage, electroplate,
printing and dyeing, papermaking, electric power, mine etc.
Features:♦ Working Principle: Centrifugal, self-priming
♦ Main applications: Diesel Oil, Gasoline, Kerosene, Water, Sea Water
♦ Casing Material: cast iron, stainless steel
♦ Impeller Material: bronze, stainless steel
♦ Power: motor driven and engine driven for option. Trailer type can be designed according to customer's request.
Performance
Model | Flow (m3/h) | Lift (m) | Suction head(m) | Speed (r/min) | Self priming capacity | Power(kw) | Ports size(mm) |
40CYZ-A-40 | 10 | 40 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-12 | 15 | 12 | 6.5 | 2900 | 2.4 | 1.5 | 50 |
50CYZ-A-20 | 18 | 20 | 6.5 | 2900 | 1.9 | 2.2 | 50 |
50CYZ-A-30 | 20 | 30 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-35 | 14 | 35 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-40 | 10 | 40 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-50 | 12.5 | 50 | 6.5 | 2900 | 1.4 | 5.5 | 50 |
50CYZ-A-65 | 15 | 60 | 6.5 | 2900 | 1.3 | 7.5 | 50 |
50CYZ-A-75 | 20 | 75 | 6.5 | 2900 | 1.3 | 11 | 50 |
65CYZ-A-15 | 30 | 15 | 6.5 | 2900 | 2 | 3 | 65 |
65CYZ-A-32 | 25 | 32 | 6 | 2900 | 1.5 | 5.5 | 65 |
80CYZ-A-13 | 35 | 13 | 6 | 2900 | 3.4 | 3 | 80 |
80CYZ-A-17 | 43 | 17 | 6 | 2900 | 1.8 | 4 | 80 |
80CYZ-A-22 | 40 | 22 | 6 | 2900 | 1.9 | 5.5 | 80 |
80CYZ-A-25 | 50 | 25 | 6 | 2900 | 1.5 | 7.5 | 80 |
80CYZ-A-32 | 50 | 32 | 6 | 2900 | 1.5 | 7.5 | 80 |
80CYZ-A-55 | 60 | 55 | 6 | 2900 | 1.5 | 18.5 | 80 |
80CYZ-A-70 | 60 | 70 | 6 | 2900 | 1.2 | 22 | 80 |
100CYZ-A-20 | 100 | 20 | 6 | 2900 | 1.8 | 11 | 100 |
100CYZ-A-40 | 100 | 40 | 6 | 2900 | 1.8 | 22 | 100 |
100CYZ-A-40A | 100 | 40 | 6 | 1450 | 1.5 | 22 | 100 |
100CYZ-A-65 | 100 | 65 | 6 | 2900 | 1.8 | 30 | 100 |
100CYZ-A-75 | 100 | 75 | 6 | 2900 | 1.8 | 30 | 100 |
150CYZ-A-55 | 170 | 55 | 5 | 2900 | 1.8 | 45 | 150 |
150CYZ-A-65 | 170 | 65 | 5 | 2900 | 1.3 | 55 | 150 |
150CYZ-A-80 | 160 | 80 | 5 | 2900 | 1.2 | 55 | 150 |
200CYZ-A-32 | 400 | 32 | 5 | 1450 | 2 | 55 | 200 |
200CYZ-A-63 | 280 | 63 | 5 | 1450 | 1.5 | 90 | 200 |
200CYZ-A-65 | 350 | 65 | 5 | 1450 | 1.5 | 75 | 250 |
250CYZ-A-32 | 550 | 32 | 5 | 1450 | 2 | 90 | 250 |
250CYZ-A-50 | 400 | 50 | 5 | 1450 | 2 | 90 | 250 |
300CYZ-A-50 | 500 | 50 | 5 | 1450 | 2 | 110 | 300 |
250CYZ-A-55 | 450 | 55 | 5 | 1450 | 2 | 110 | 250 |
250CYZ-A-75 | 400 | 75 | 5 | 1450 | 1.5 | 132 | 250 |
300CYZ-A-32 | 600 | 32 | 5 | 1450 | 2 | 90 | 300 |
300CYZ-A-55 | 550 | 55 | 5 | 1450 | 2 | 132 | 300 |
