High Flow Rate Water Pump for Water Plant Drainge Pump

High flow double suction pump for water plante, power station, shipping industry

Tpow or S series double suction pump is a high flow rate water pump.

it adopts domestic and foreign most outstanding self-balanced axial force and the radial force water power model at present , stable performance,high efficiency,compact structure ,slightly vibration ,and high pressure-resistance pump body,installment service convenient installment and maintenance.

Main Features

1.This water pump is designed with two impeller in the same diameter , so , the flow rate is doubled.Moreover , the symmetric structure of the impeller will not generate axial force,making for the stable operation of the product.

2.As a horizontal split case pump ,the suction inlet and discharge outlet are located under the axis of the water pump ,vertical to the axle.There is no need for the user to dismantle the pipeline for inspection and maintenance.

3.The inlet and outlet for the double suction centrifugal pump is positioned in the same direction.Contributing to the convenient arrangement and installation of the pump and the water pipe.

4.The rotor is designed with composable parts.So,it is available to hoist the high head pump for maintenance .Additionally ,parts for one rotor can be used for reverse rotation,as well,

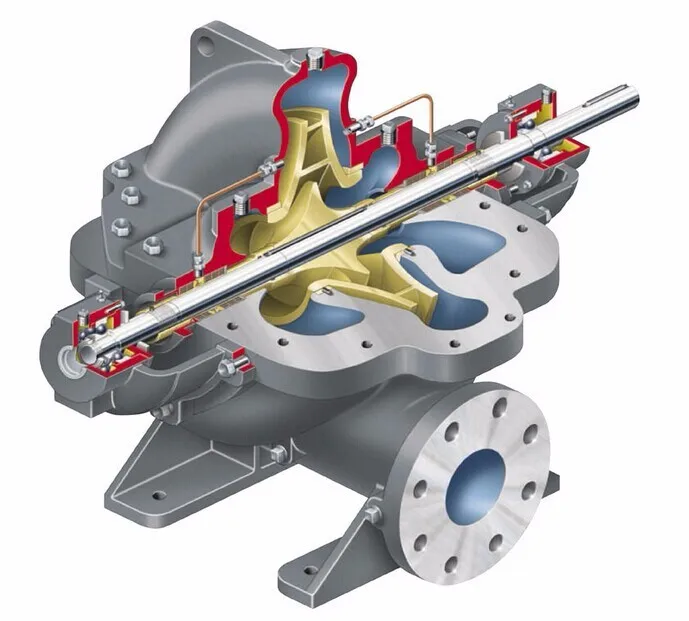

bare pump struture

This water pump is designed with two impeller in the same diameter , so , the flow rate is doubled.Moreover , the symmetric structure of the impeller will not generate axial force,making for the stable operation of the product.

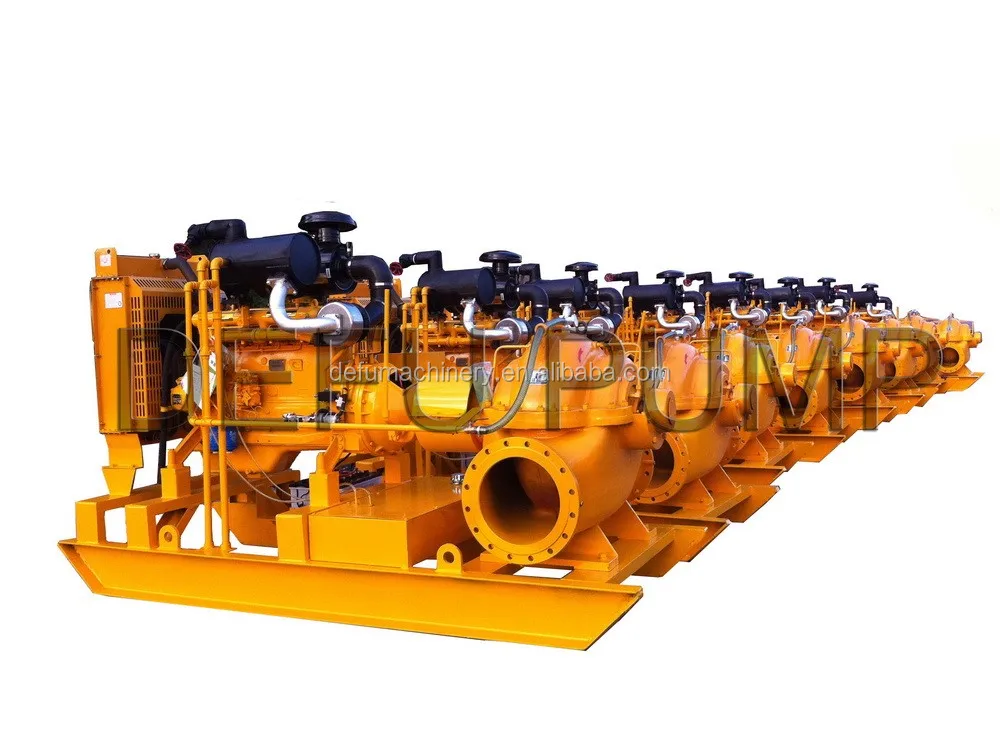

DIESEL ENGINE
Brand: Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Diesel driving : air or water cooled

Power range: 50hp-1066hp

Electric motor

Number of poles: 2P/4P/6P/8P/10P

Trailer

Type : two or four wheels trailer
