Double Suction Centrifugal Pump
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
DEFU-Tpow double suction water pumps with diesel engine
-
Diesel high pressure engine water pump (TPOW)
-
Diesel engine double suction water pump for fire
-
150S-78A Double suction water pump with electric motor
-
High Capacity Double Suction Split case Centrifugal water Pump
-
200S- 63 high capacity diesel engine double suction water pump for agriculture
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEFU | |
| Model Number | TPOW | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, WATER, Irrigation,water supply,heat water,oil,chemical industry |
Product Description
Specifications
Double Suction Centrifugal PumpCabiler Size:80-800mm
Range of Flow: 50-11600m3/h
Head:0-200m
Horizontal Single-Stage Double Suction
Centrifugal Water Pump
Specifications
Outlet diameter: DN80-800mm
Capacity:Q ≤11600m3/h(3222L/S)
Head: H ≤200m
Working Pressure: up to 25bar (2.5Mpa)
Operation temperature: up to +105°C
Voltage: U=380V, 6kV,10kV
Net.Weight(bare pump): 181KGS-7809KGS
Motor: can be with electric motor and diesel engine
Accessories: fuel tank, control panel, two or four wheels trailers, silence-box or weather-proof etc.
Delivery Time:
Bare Pump_about 10days
Pump with Electric Motor___about 15days
Pump with Diesel Engine___about 20days
PS: For the different quantities and requirements etc, the delivery time will be different
Part Material
| Part | Material |
| Pump casing: | Casing pig, Ductile cast iron, Cast steel |
| Impeller: | Casing pig, Bronze,Silicon brass, Stainless steel |
| Shaft: | Stainless steel. Carbon steel |
| Seal-ring on pump casing: | Casing pig, Bronze,Silicon brass, Stainless steel |
Performance Curve
Parameters Table (More models please contact us, thank you!)
Usages:
1.Fire fighting system 2. Irrigation 3. Sewage 4. Flood 5. Waterworks 6. Electric power station 7.Industrial water supply 8. shipbuilding industry 9. General use in oil refining industry etc
Spare Parts

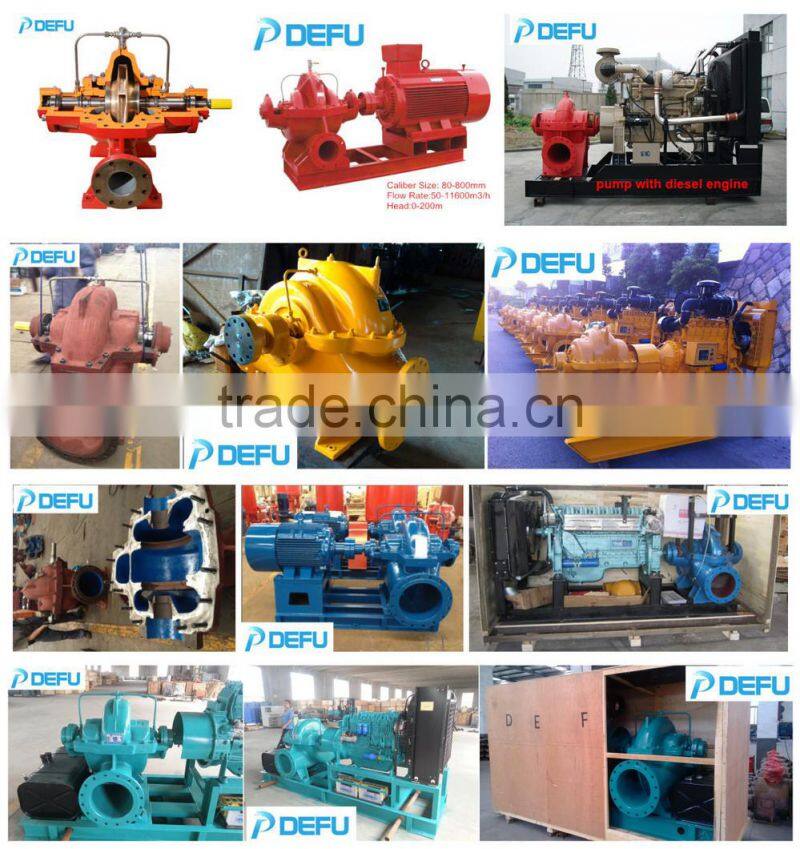

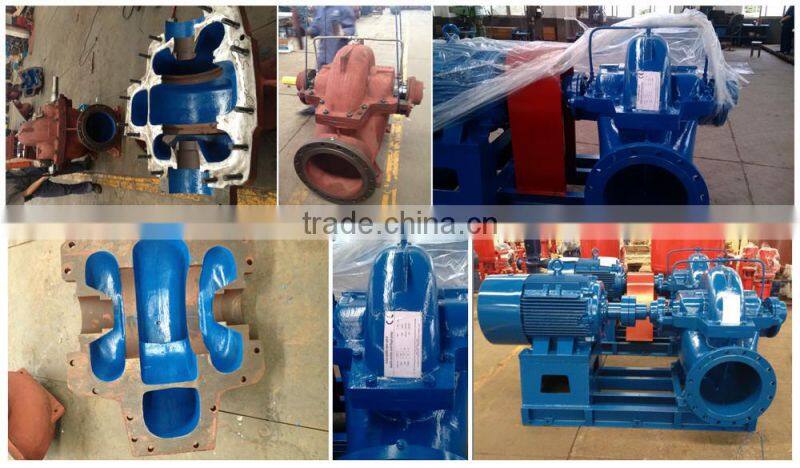

Product Show
Packages: Plywood case
Company Products
Pratical Application
