Introduxtion of automatic irrigation system

hose traveler irrigation machine is suitable for farmland, stadiums, golf courses, soccer fields, lawns, meadows, parks, gardens and a variety of crops.
High efficient, energy-saving, reliable,simple and impact type water turbine driving device, chain transfer motion,low working pressure,compact,easy to operate,big irrigation area.

Parameter of automatic irrigation system

Parts of the automatic irrigation system

1. Impact type water turbine

Assembled on the reel to flow location and the drive shaft is made of stainless steel, the use of mechanical seal, seal shaft seal rotating speed is 100-700 r/min, water yield of 3-20 m3 / h.

2. PE water pipe

PE pipe is a kind of high-tech products, one end of it on the reel, and through the horizontal axis to water supply, it has to do with water spray on the other side of the road.

3. Reducer
A standard cone enveloping cylindrical worm gear and worm gear reducer.

4. Guide
It is about a thread guide rod and can shift the drive, it can ensure that the PE pipe automatic recovery, each layer are volume very neatly.

5. Speed regulating device
It is mainly composed of PE pipe roller, swinging rod, ball valve, make the nozzle ramp consistent speed and depth of precipitation.

6. Safety device
It is a linkage, every time at the termination of the irrigation, sprinkler car can automatically lift to transport location and strike safe touch rod, clutch automatic release in the rotating device, reel stop running.

7. Brake
New braking device, the reel to prevent reversals, simple operation, drag and drop the PE pipe easier.

8. Sprinkler car
It is symmetric wheel structure, in order to make PE pipe tensile convenience, he has a pull type hook assembly.

9. Rack
Composed of rectangular pipe welding, good rigidity.All structure by the hot dip galvanized processing, has the good anti-corrosion performance.

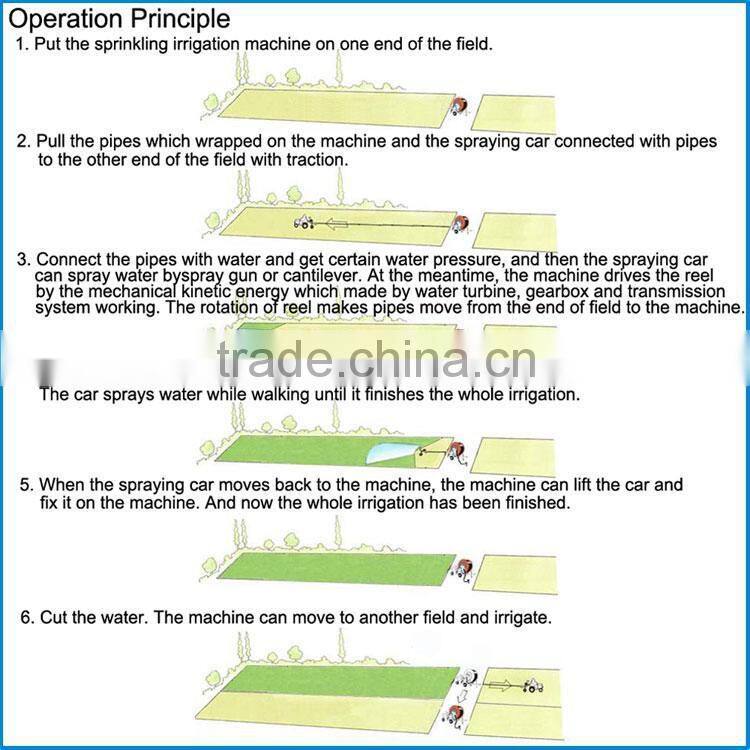

Operation principle of automatic irrigation system

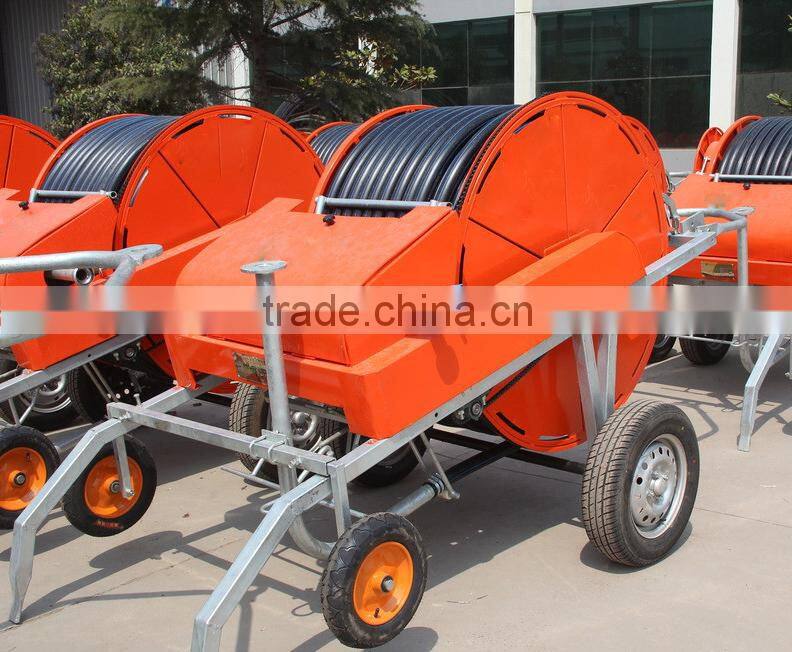

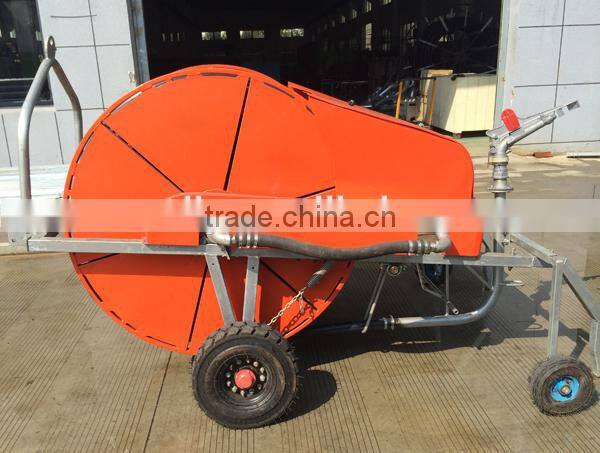

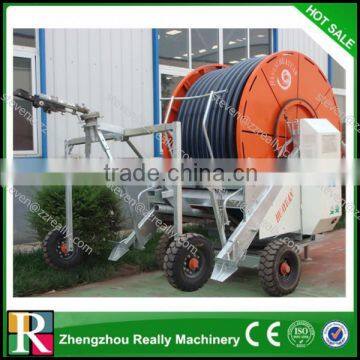

the irrigation machine pictures
