Home > Products > New Products > High efficiency and ISO9001:2008 Certificate Coal Press Machine
High efficiency and ISO9001:2008 Certificate Coal Press Machine
USD $7,000 - $8,000
/ Set
1 Set(Min.Order)
- 80 Set / Sets per Month
- qingdao shanghai tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Induction Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | Hongji | Model Number | QM Series | |
| Certification | ISO9001:2008 |
Product Description
Specifications
Single Stage Coal Gasifiera. competitive price and high quality
b. safe and easy for operation
c. environment protection

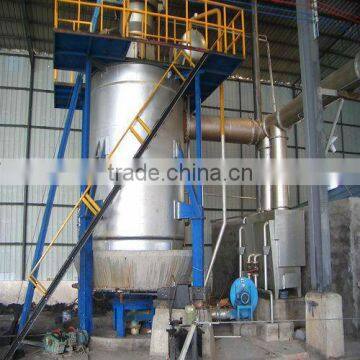

Coal Gasifier Introdution
Coal gasifier is one of the high production capacity and high gasification efficient gasifier. The coal gasifier is widely used in metallurgical,mechanical,chemical industry, nonferrous metal industry and other industries. It is used to convert the combustible matter into combustible gas which could utilize the industrial gas and heating various furnaces or the products directly. The coal gasifier has the characteristics of high yield, high efficiency, convenient to operate and with better adaptability, etc.
1. Design
Under the medium of gasification, heated through hearth, solid fuel produces flammable gas fixed with gas, which would be passed to the muzzle of heating treatment furnace by gas line for combustion to heat the work pieces.
2. Characteristics
sound smoke abatement effect and being for environment protection, the important facility in heating treatment system.
3. Applicability
Mainly used in machine, metallurgy, non-ferrous metal. chinaware, glass, chemical industries.
Features of Coal Gasifier
1) Convenient to remove slags;
2) Easy to operate and maintain;
3) Long service life;
4) Continual and cyclical manufacturing;
5) It is safe to use for with double safe control;
6) Evenly combusting.
2) Easy to operate and maintain;
3) Long service life;
4) Continual and cyclical manufacturing;
5) It is safe to use for with double safe control;
6) Evenly combusting.
Technical Parameters of Coal Gasifier
Name | Unit | Gasifier Model | |||||||||
QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 | QM1.8 | QM2.0 | QM2.4 | QM2.6 | QM3.0 | ||
Hearth diameter | mm | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 |
Valid hearth area | m*m | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 |
Applicable fuel | Weak viscosity carbon black, smokeless carbon, coke | ||||||||||
Fuel size | mm | 25-80 | |||||||||
Fuel consumption | kg/h | 40-100 | 70-140 | 120-190 | 160-350 | 350-460 | 500-600 | 500-720 | 700-1040 | 850-1200 | 1700-2000 |
Gasifying agent | air, vapour | ||||||||||
Gas capacity | Nm3/h | 140-350 | 245-490 | 420-670 | 560-1200 | 1200-1600 | 1500-2100 | 1750-2500 | 2500-3600 | 3000-4300 | 6000-7000 |
Gas heat value | Kj/N m3 | 5020-5670 | 5020-6000 | ||||||||
Water jaket heating area | m*m | 4.02 | 5.02 | 6.78 | 10..37 | 11..06 | 12.44 | 17..58 | 21..87 | 23..69 | 30..16 |
Steam capacity | kg/h | 60 | 80 | 130 | 200 | 220 | 260 | 350 | 420 | 600 | 840 |
Gas outlet temperature | degree | 400-500(related with the coal) | 400-500(related with the coal) | ||||||||
Gas outlet pressure | Pa | <1000 | <980-1470 | <1470-1960 | |||||||
Gas outlet diameter | mm | 219 | 325 | 325 | 426 | 426 | 529 | 630 | 720 | 820 | 1020 |
Air pressure | Pa | <3000 | <4000 | ||||||||
Saturated air temperature | degree | 50-60 | 50-65 | ||||||||
Ash pan rotation speed | r/h | 0.177-1.77 | |||||||||
Gross weight | T | 3.5 | 4.5 | 5 | 7.5 | 10 | 20 | 23..4 | 29..8 | 32 | 37..6 |
Total power | Kw | <6 | <6 | <6 | <7 | <8 | <10 | <14 | <20 | <20 | <27 |
Air inlet diameter | mm | 108 | 108 | 140 | 165 | 219 | 325 | 325 | 426 | 426 | 426 |
