Home > Products > coal gasifier > China Famous Single stage coal gasifier to make coal gas

China Famous Single stage coal gasifier to make coal gas

FOB Price

USD $7,000 - $8,000 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port QINGDAO SHANGHAI TIANJIN ETC
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Induction Furnace
Usage	Heat Treatment Furnace	Place of Origin	Henan, China
Brand Name	HONGJI	Model Number	QM Series
Power(W)	<27	Weight	3.5-38
Certification	ISO9001:2008 & CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Coal Gasifier Features:
a. competitive price and high quality
b. safe and easy for operation
c. environment protection

Coal Gasifier Introdution

Coal gasifier is one of the high production capacity and high gasification efficient gasifier. The coal gasifier is widely used in metallurgical,mechanical,chemical industry, nonferrous metal industry and other industries. It is used to convert the combustible matter into combustible gas which could utilize the industrial gas and heating various furnaces or the products directly. The coal gasifier has the characteristics of high yield, high efficiency, convenient to operate and with better adaptability, etc.

1. Design

Under the medium of gasification, heated through hearth, solid fuel produces flammable gas fixed with gas, which would be passed to the muzzle of heating treatment furnace by gas line for combustion to heat the work pieces.

2. Characteristics

sound smoke abatement effect and being for environment protection, the important facility in heating treatment system.

3. Applicability

Mainly used in machine, metallurgy, non-ferrous metal. chinaware, glass, chemical industries.

Features of Coal Gasifier

1) Convenient to remove slags;
2) Easy to operate and maintain;
3) Long service life;
4) Continual and cyclical manufacturing;
5) It is safe to use for with double safe control;
6) Evenly combusting.

Technical Parameters of Coal Gasifier

Name	Unit	Gasifier Model
		QM0.8	QM1.0	QM1.2	QM1.5	QM1.6	QM1.8	QM2.0	QM2.4	QM2.6	QM3.0
Hearth diameter	mm	800	1000	1200	1500	1600	1800	2000	2400	2600	3000
Valid hearth area	m*m	0.5	0.785	1.13	1.77	2.01	2.54	3.14	4.52	5.31	7.07
Applicable fuel	Weak viscosity carbon black, smokeless carbon, coke
Fuel size	mm	25-80
Fuel consumption	kg/h	40-100	70-140	120-190	160-350	350-460	500-600	500-720	700-1040	850-1200	1700-2000
Gasifying agent	air, vapour
Gas capacity	Nm3/h	140-350	245-490	420-670	560-1200	1200-1600	1500-2100	1750-2500	2500-3600	3000-4300	6000-7000
Gas heat value	Kj/N m3	5020-5670				5020-6000
Water jaket heating area	m*m	4.02	5.02	6.78	10..37	11..06	12.44	17..58	21..87	23..69	30..16
Steam capacity	kg/h	60	80	130	200	220	260	350	420	600	840
Gas outlet temperature	degree	400-500(related with the coal)					400-500(related with the coal)
Gas outlet pressure	Pa	<1000					<980-1470			<1470-1960
Gas outlet diameter	mm	219	325	325	426	426	529	630	720	820	1020
Air pressure	Pa	<3000					<4000
Saturated air temperature	degree	50-60					50-65
Ash pan rotation speed	r/h	0.177-1.77
Gross weight	T	3.5	4.5	5	7.5	10	20	23..4	29..8	32	37..6
Total power	Kw	<6	<6	<6	<7	<8	<10	<14	<20	<20	<27
Air inlet diameter	mm	108	108	140	165	219	325	325	426	426	426

Coal Gasifier Working Principle:

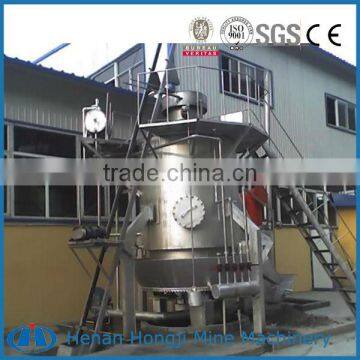

Product Pictures:

Certificate and Honour:

Contact information:

Bella Liu

Henan Hongji Mine Machinery Co.,Ltd

Mob:+86-13937153782

Tel:+86-371-67668558

Fax:+86-371-67662768

Skype:bella_hongji

Looking forward to hearing from you and welcome to visit our factory!
