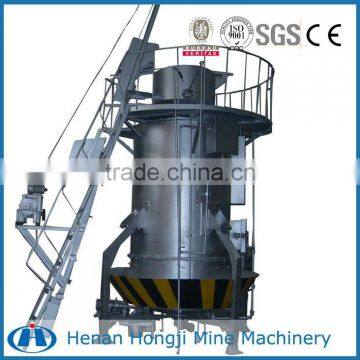

High quality coal gasifier for electric generator power

FOB Price

USD $7,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port qingdao shanghai tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Hongji	Model Number	QM2.0
Usage	Other, coal, dryer, Boiler, Kilin,Electric generator	Voltage	<1960
Power(W)	<27	Weight	3.5-37.6T
Certification	CE,ISO,SGS	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas	Production Rate	1600

Product Description

Specifications

coal gasifier Features:
1.Easy to operate
2.Heating uniformity
3.Supply gas continuously and steadily

al gasifier specification:

(1).quick start&small invest
(2).safe and pro-environment
(3).save 20% fuel
(4).ISO9001-2008,CE

coal gasifier is hongji's major product, professional technology support and all-around service

can be offered to you, we also can made according to your special requirments. Welcome you

visit our company to know more about us!

2.Composition of Single Stage Coal Gas Generator:
CO: 23-27%
H2: 12-17%
CH4: 2-3.5%
CO2: <5%
N2: 50-54%

3.Technics of Single Stage hot gas station:

Single stage gasifier generater coal gas with the temperature from 450-550 °C, after that it goes into the gravity dust collector to remove dust and tar, after that coal gas go throught the cyclone dust

collector for secondary cleaning, then coal gas was transported to use.

Model	QM0.8	QM1.0
Chamber diameter(mm)	800	1000
Hearth active surface(m²)	0.5	0.785
Suirable fuel	weak coherent gas carbon,anotherracite,burnt carbon
Fuel granularity(mm)	25-80	25-80
Fuel consumption quantity(kg/h)	40-100	70-140
Gasifying agent	Air ,steam	Air ,steam
Gas yield(Nm³/h)	140-350	245-490
Gas calorific valu(Kj/Nm³)	5020-5670	5020-5670
Water jacket heating area(m²)	4.02	5.02
Steam output(kg/h)	60	80
Gas outlet temperature(°C)	(400-500)Plants related with the coal
Gas outlet pressure(Pa)	<1000	<1000
Gas exportation diameter(mm)	219	325
Air pressure(Pa)	<3000	<3000
Saturated air temperature(°C)	50-60	50-60
Ashpan rotational speed(r/h)	0.177-1.77	0.177-1.77
Equipment gross weight(t)	3.5	4.5
Complete machine power(kw)	<6	<6
Tuyere diameter(mm)	108	108

4. working principle of the coal gasifier

5.Product show and delivery

6.Certificate
