Home > Products > Woven mesh > Steel Black Wire Cloth Panel
Steel Black Wire Cloth Panel
- TianJin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | YS | |
| Model Number | YS-S-554 | Material | Other, Plastic Coated Iron Wire, Low-Carbon Iron Wire, black iron wire | |
| Type | Wire Cloth | Application | Filter | |
| Hole Shape | Square | Aperture | 0.27-1.94mm | |
| Wire Gauge | 0.15-0.6mm |
Product Description
Steel Black Wire Cloth Panel
Steel Black Wire Cloth Panel Specification
Material: high quality low carbon mild steel wire
Mesh: 10 - 60 mesh
Wire dia: 0.15-0.6 mm
Length: usually 30m per roll.
Width: 36",48",0.6m, 1m, 1.2m or as requirement
Shape: can be in roll, or cutted to panels in square, rectangle, disc etc.
Weaving: Plain or twill woven wire cloth.
Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave.
Application: used for filter in rubber, plastic, oil, chemical industry, grain etc.
Steel Black Wire Cloth Panel Parameter
Mesh/Inch | Opening (mm) | Wire Diameter( mm) | Reference weight(kg/ter) |
10mesh x 10mesh | 1.94 | 0.6 | 1.8 |
10mesh x 10mesh | 1.98 | 0.56 | 1.56 |
12mesh x 12mesh | 1.52 | 0.6 | 2.16 |
12mesh x 12mesh | 1.56 | 0.56 | 1.88 |
18mesh x 18mesh | 0.96 | 0.45 | 1.82 |
18mesh x 18mesh | 1.0 | 0.41 | 1.52 |
18mesh x 18mesh | 1.04 | 0.37 | 1.23 |
18mesh x 18mesh | 1.06 | 0.35 | 1.1 |
20mesh x 20mesh | 0.86 | 0.41 | 1.68 |
20mesh x 20mesh | 0.9 | 0.37 | 1.38 |
22mesh x 22mesh | 0.74 | 0.35 | 1.33 |
22mesh x 22mesh | 0.79 | 0.30 | 0.99 |
24mesh x 24mesh | 0.7 | 0.35 | 1.5 |
26mesh x 26mesh | 0.63 | 0.35 | 1.66 |
28mesh x 28mesh | 0.6 | 0.31 | 1.36 |
30mesh x 30mesh | 0.64 | 0.31 | 1.46 |
32mesh x 32mesh | 0.5 | 0.29 | 1.36 |
34mesh x 34mesh | 0.47 | 0.28 | 1.3 |
36mesh x 36mesh | 0.47 | 0.28 | 1.3 |
38mesh x 38mesh | 0.41 | 0.26 | 1.1 |
40mesh x 40mesh | 0.39 | 0.25 | 1.2 |
40mesh x 40mesh | 0.41 | 0.23 | 1.06 |
40mesh x 40mesh | 0.43 | 0.21 | 0.88 |
42mesh x 42mesh | 0.365 | 0.24 | 1.1 |
44mesh x 44mesh | 0.347 | 0.23 | 1.0 |
46mesh x 46mesh | 0.332 | 0.22 | 1.0 |
48mesh x 48mesh | 0.319 | 0.20 | 0.96 |
50mesh x 50mesh | 0.318 | 0.19 | 0.91 |
50mesh x 50mesh | 0.338 | 0.17 | 0.72 |
56mesh x 56mesh | 0.248 | 0.17 | 0.81 |
60mesh x 60mesh | 0.27 | 0.15 | 0.68 |

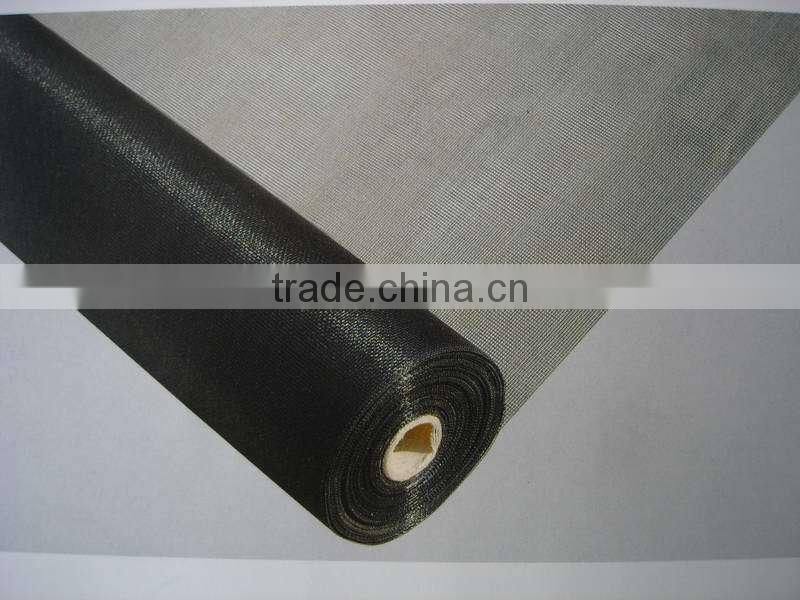

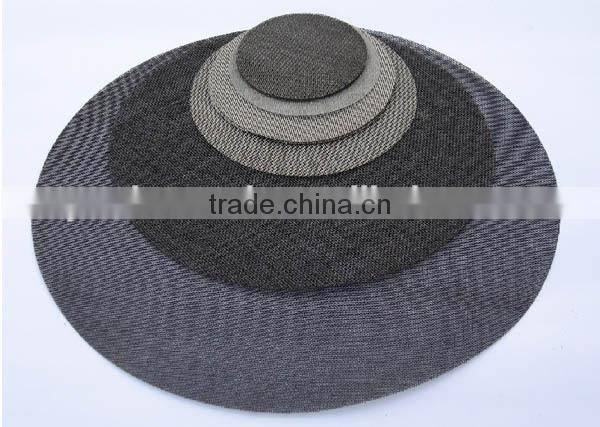

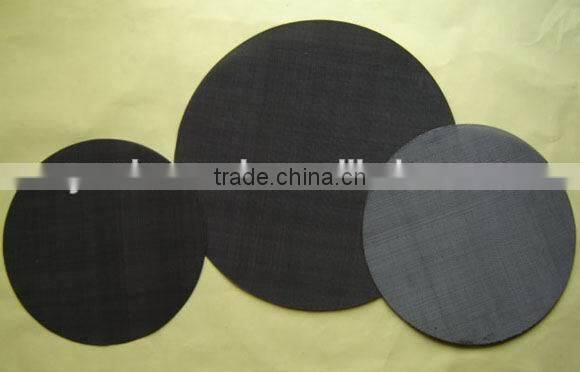

Steel Black Wire Cloth Panel Images
Company Introduction
Our company manufactures and exports of all kinds of black wire cloth, brass wire mesh, galvanized square wire mesh, expanded metal wire mesh, crimped wire mesh, fiberglass windows screening, and aluminum alloy window screen. At the same time we also supply the filter meshes.
We have expanded in this filed nearly 30 years. Our company has a good credit standing, and we promise to deliver your order on time. We can guarantee the quality for all our products.
