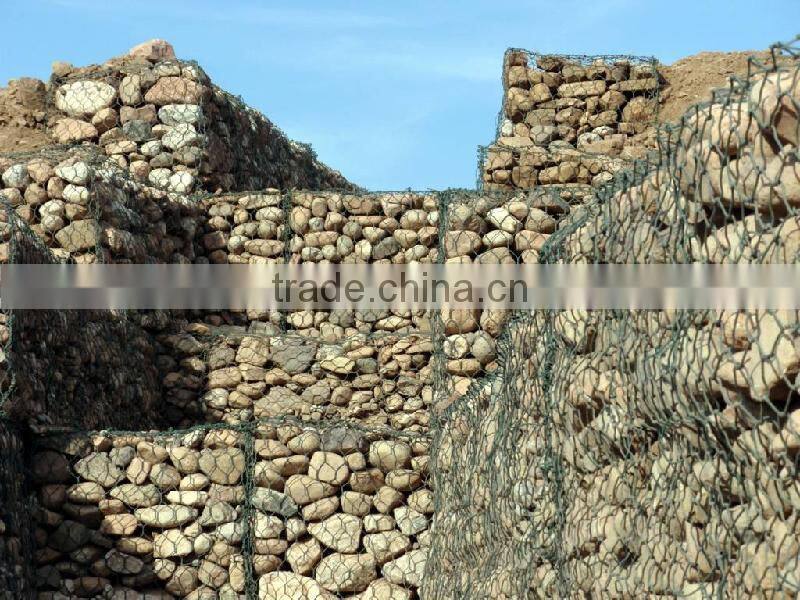

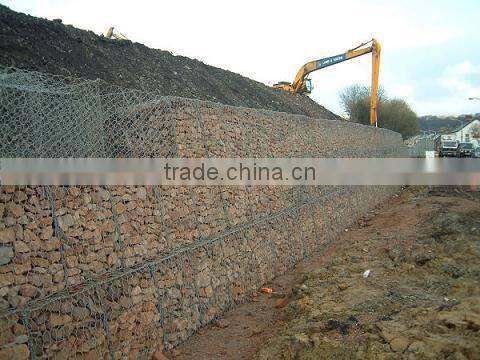

Gabion Gravity Retaining Walls

gabion gravity retaining walls

 Material:Galvanized iron wire and PVC coated wire

 Galfan(95%zinc-5%Alu Alloy)low carbon steel wire,which has good ability of resistance corrosion.

 Mesh wire:2.0mm-4.0mm

 Mesh size:6x8cm,8x10cm,10x12cm,12x15cm,16x18cm

 Size:1x1x1m,2x1x1m,3x1x1m,4x1x1m,2x1x0.5m,4x1x0.5m

 Applications:

1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.

 Advantages:
1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4. Affording Large scale distortion, but never be defeated.
5. The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
6. Excellent Penetrability, which can prevent from the whist by liquid.
7. Saving the transport costs. Which can fold while loading and transport, then assemble.

Regular size for gabion box

wire diameter:2.7x3.4x2.2mm,mesh size:80x100mm,box size:2x1x1m

Regular size for gabion mattress

wire diameter:2.2x2.7x2.2mm,mesh size:60x80mm,mattress size:3x2x0.3m

Regular size for gabion mesh roll

wire diameter:2.7x3.4mm,mesh size:60x80mm/80x100mm,roll size:2x50m

 MATTRESSES are also rectangular boxes which are larger in area and thinner in depth than gabions.They are made with a smaller mesh size and a thinner wire to provide a higher degree of flexibility.Like the gabions,the mesh is framely a thicker selvedge wire but due to the larger size of the mattress the lid is made of a separate panet of mesh to the base.Additional end panels and internal diaphragms at 1.0m centres are then wired to the base of thr mattress.
