Small 1dbi Ceramic UHF RFID Antenna used on metal
- 50000 Piece / Pieces per Month
- Shenzhen or HK
- Credit Card
You May Like
Product Details
| Brand Name | Sanray | Model Number | A4001N |
Product Description
Small 1dbi Ceramic UHF RFID Antenna used on metal
Electrical Characteristics of UHF RFID Ceramic Antenna A4001N
1 | Antenna model | 25*25*4mm |
2 | Frequency Range | 922.5MHz±1MHz |
3 | V.S.W.R | 1.5:1 |
4 | Band Width | >2 MHz |
5 | Impendence | 50 ohm |
6 | Gain(Typical) | 1dBic Based on 35×35mm ground plane |
7 | Polarization | RHCP |
Material of UHF RFID Ceramic Antenna A4001N
NO. | Part Name | SPEC |
1 | Antenna | Dielectric Ceramics |
2 | PCB | FR4 |
3 | RF Connector | SMA |
4 | RF Cable(Typical) | Φ2.7±0.3mm |
(L1=110mm.) |
Testing Conditions of UHF RFID Ceramic Antenna A4001N
1 | Working Temp | -20°C-+65°C |
2 | Storage Temp | -40°C-+85°C |
3 | Vibration | Sine sweep 1g(0-p) |
10-50-10Hz each axis |
Notes
Electrostatic sensitive device, Observe precautions for handling.

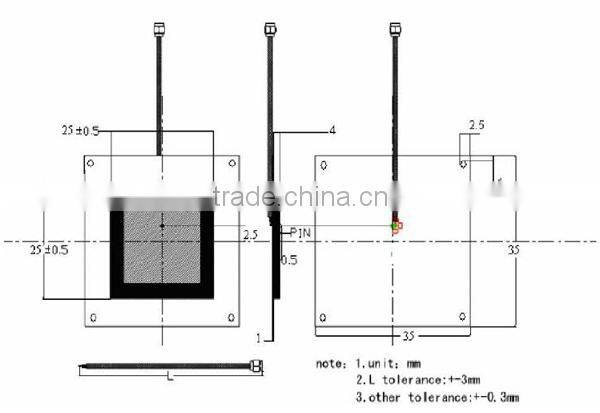

Structure of UHF RFID Ceramic Antenna A4001N

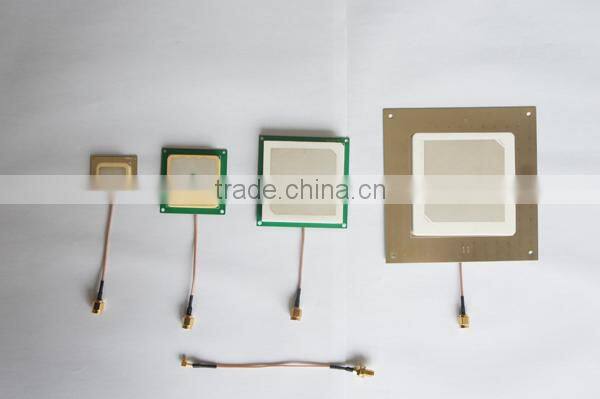

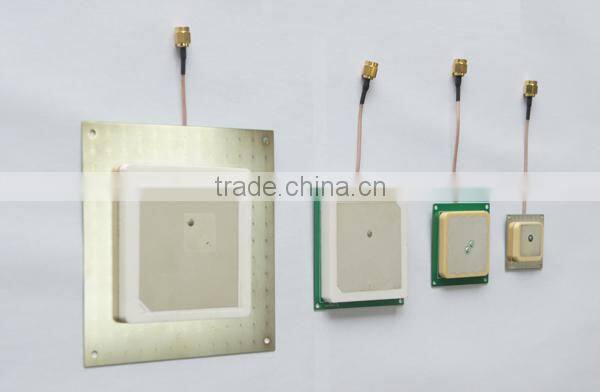

Pictures of UHF RFID Ceramic Antenna A4001N
How to order
Please chat with us through TradeManager or click "contact supplier" to leave massage about the quantity,special model you want or your requirement. Then we will reply to you ASAP.
After we confirm all detailed information, we Will Make PI (Performa Invoice) for you to confirm the order if you need.
Payment terms
1. We accept PayPal, Western Union and Bank transfer.
2. 30% deposit and 70% before shipping.
3. No payment collection. We only can deliver goods after getting full payment.
Contact
We also have different kinds of UHF RFID devices, such as modules, readers, antennas, inlays, metal tags, etc.. Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
