F5002-H Mini Desktop Portable Reader
- Shenzhen or HK
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sanray | |
| Model Number | F3003 |
Product Description
Specifications
Working Frequency: 840~960MHzBuilt-in Antenna Gain: -2dBi
Support Protocol:ISO18000-6C
Product name: F5002-H Mini Desktop Portable Reader
Support protocol: ISO18000-6C
Working frequency: 860MHz--960MHz

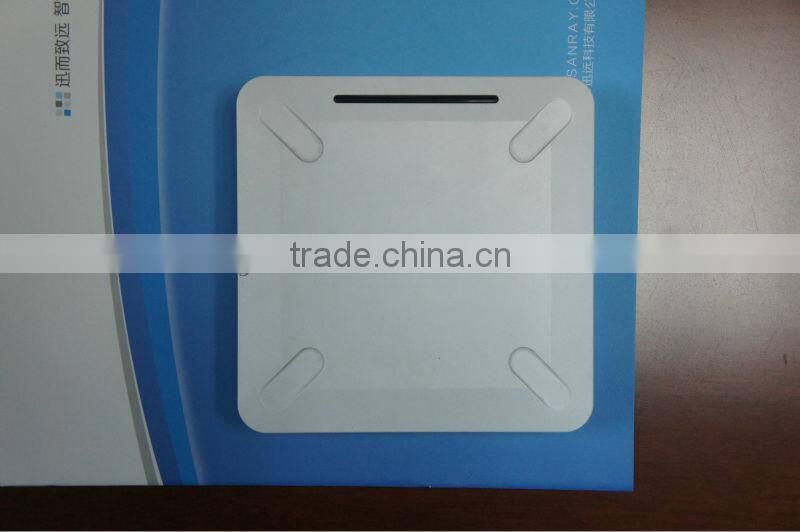

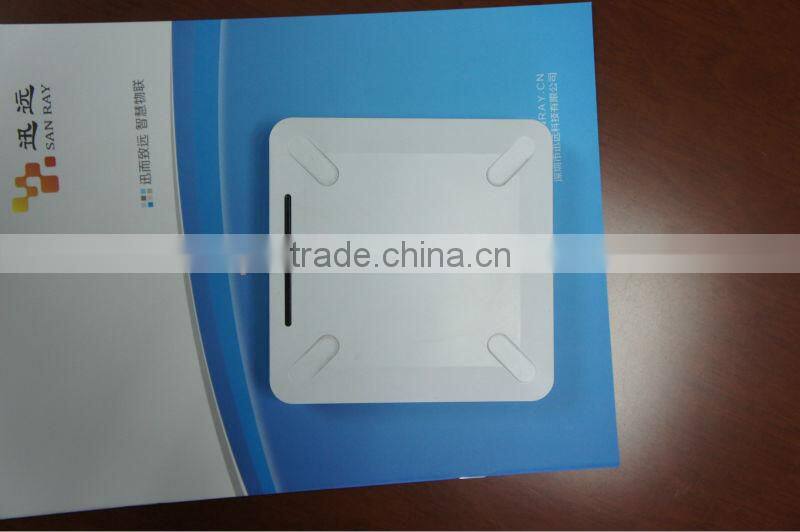

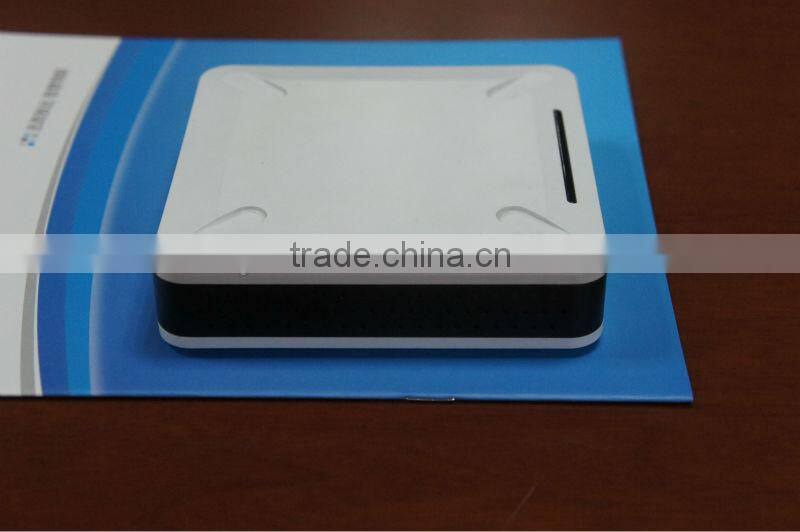

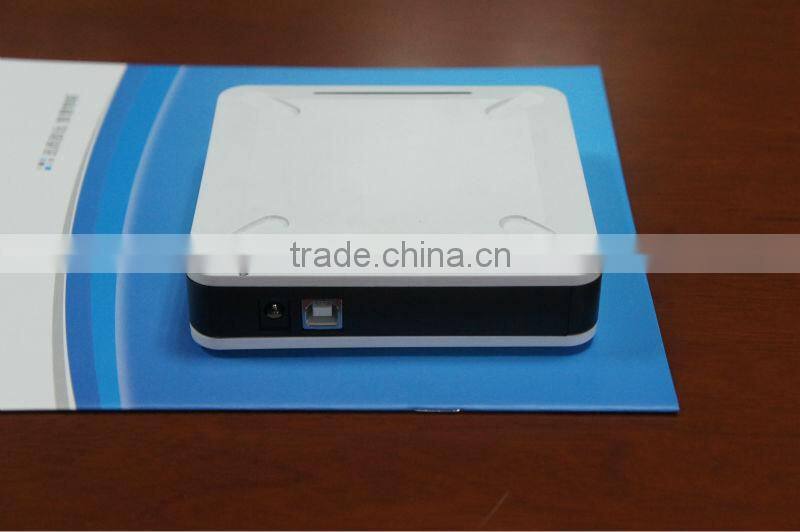

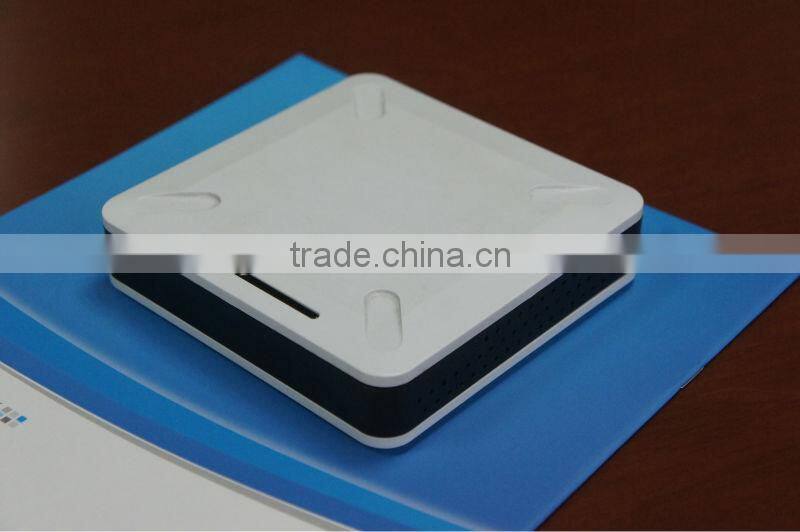

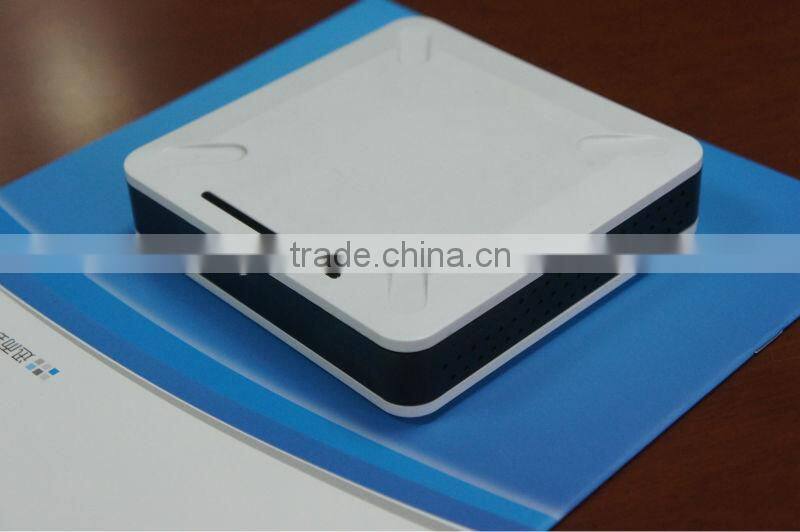

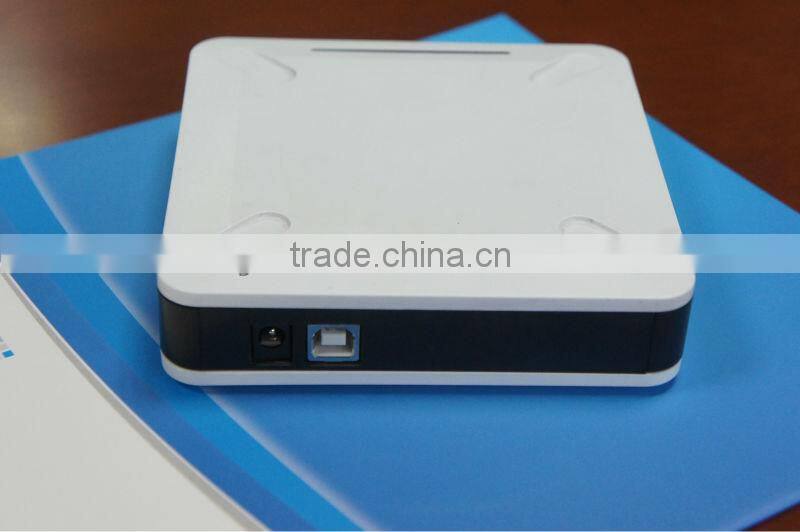

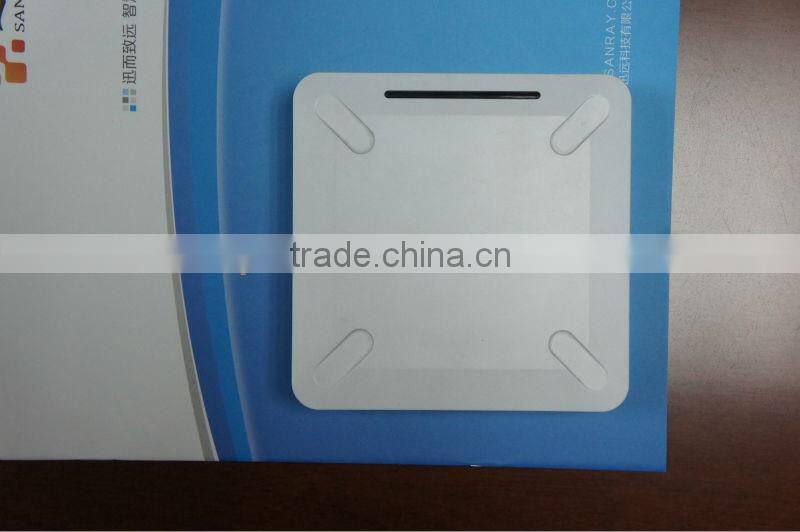

F5002-H Mini Desktop Reader is a small and portable integrative reader that is newly developed by Sanray Technology and is used for short distance identification or backstage reader management. Employing SR-M2210 RF Module as the core and basing on the newest IMPINJ R2000 RF chip make this reader’s performance and quality remarkable and stable. It is suitable for personnel access control, pictures or documents management, as well as electronic tags reading, writing, authorizing, formating and other background operations.
Technical Specifications
NO. | Parameters | |
1 | Support Protocol | ISO18000-6C |
2 | Built-in Antenna Gain | -2dBi |
3 | Working Frequency | 840~960MHz Support China2, China1, US, EU, Korea, Japan, etc. |
3 | Core RF Module | M2210, base on IMPINJ R2000 |
4 | Power | Software adjustable,step interval 1.0dB, maximum 30dBm |
5 | Mechanical Spec. | |
6 | Power Supply | 12V DC |
7 | Electric Current | Maximum Power Output 600mA,STDBY≤30 mA,Sleep≤1 mA |
8 | Communication Interface | Standard USB interface(RS232 optional) |
9 | Development Kit | Provide API and Demo |
10 | Working Temperature | -25~+65°C |
11 | Storage Temperature | -40~+80°C |
