Active RFID Tag 2.4GHz Long Distance RFID Tag 840-960MHz RFID Tag

Product Name: active rfid tag 2.4ghz long distance rfid tag  840-960MHz rfid tag

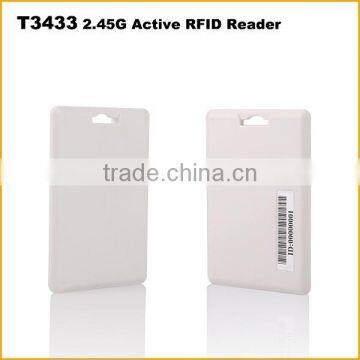

Model: SR-RFID3433(2.4G Active RFID Tag with RSSI function)

Key Features:

Long reading distance

Ultra  low  RF  power  consumption,  long life time

Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable

High protection grade

Large user memory, which can be used for many flexible applications

Intelligent  temperature  monitoring function

Support RSSI function

Technology specifications

Operating frequency: 2.4GHz~2.5GHz ISM

RF Power:-30.0dBm~1.0dBm

Reading distance:

0~50m (with standard matched 2dBi Omni-directional antenna)

0~200m(depends on antenna)

Operating current: <22uA, 3V (500ms transmitting interval)

Modulation: GFSK

Communication rate: 250Kbps

User memory: 4K byte

Working temperature: -20°C~+60°C 90%RH

Storage temperature: -40°C~+80°C

Life time:

Read and write: 3 years(500ms transmitting interval)

Read only: 5 years (500ms transmitting interval)

RSSI function: YES

Electric hint: alarm when low battery

Material: ABS(ROHS), flame retardant

Colour: White, blue, yellow, green

Environmental sealing: IP65

Drop test: 1.2m

Weight: 30g

Dimension: 87mm*56mm*5mm

Typical Applications

Cold chain logistic

Temperature monitoring and collecting

School students’ management

Vehicle and asset tracking
