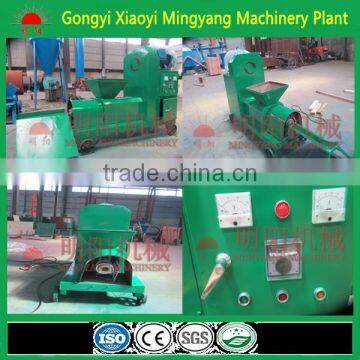

Brief description of wood briquette machine

This charcoal briquette making machine uses a large screw to grind, compress and extrude the biomass into briquettes. The briquette can be used for fuel direcitly or be carbonized into charcoal.

Technical data of wood briquette machine

There are two types machine
(1)Single machine
If the capacity you need is 120-450kg/h, you can choose one single machine, about the single machine, we have six types.

(2)Automatic Production line
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save many workers and cost.
Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.

 Raw material of wood briquette machine

  1)Sawdust,wood chips,branches

  2)Maize stalks,soybean stalks,broomcorn stalks,cotton stalks,rape stalks,sunflower stalks,peanut plants

  3)Palm husk,coffee husk,sugarcane residue,tea waste,ect.

Finish product and Application of wood briquette machine

1)After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

This bio-fuel briquette is 40-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.

2)As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :

Boilers :              It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units,

                       Oil Extraction Units,Solvent Extraction Plant and many other plants and industries..

Furnace & Foundries :  It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

Brick Kilns :          It is the total, substitute of steam coal.

Residential & Commercial Heating : For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.

 The production line of making wood briquette charcoal :

1)Crush the raw material into small pieces (diameter is about 3-5mm).
2)Dry the material by machine or dried it in the sun , till the moisture is less than 12%.
3)Put the material into feed let of briquette machine.
4)Produce the briquette stick from biomass material without any additive.
5)Carbonized the briquette stick.

click the picture you can find more information

crusher

dryer

carbonization stove

spare parts:
