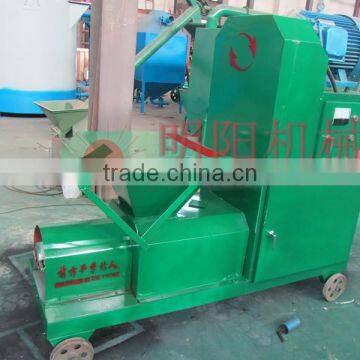

one year Warranty energy-saving wood sawdust waste briquette shaping machine

 1.introduction of the one year Warranty energy-saving wood sawdust waste briquette shaping machine

Briquetting is a process that biomass is compressed under high pressure and high temperature. The hexgonal shape wood sawdust powder briquette pressing machine for Kenya market uses a large screw to grind,compress and extrude the biomass into briquettes.

After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body. The bio-fuel carbon maintains the cleanliness and hygiene, and is suitable for family heating and barbecuing.

 2. How to choose the one year Warranty energy-saving wood sawdust waste briquette shaping machine

If you want to choose the suitable machine, you should pay attention of the factor

(1)   raw material ( because different material will need different machines ,especially for the crusher)

Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut

 (2)   the moisture and diameter of the raw material ( before the raw material into the briquette machine, we should confirm that

diameter (size) :3-5mm ( if can not meet the requirement, it will need a crusher

moisture: 8-12%, (if can not meet the requirement, it will need a dryer)

(3)   the finished product you need (you need the sawdust briquette or the charcoal )

the sawdust briquette :

the sawdust briquette very popular in Europe market, and it can be used as one kind of fuel

The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge,

The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

The available length could be :20cm,30cm, 40cm, 50cm

The feature of the final product : Specific gravity: 1300—1900kg/m  Calorific value: 4500—5000kcal/kg

 (4)   the output you need

For the sawdust briquette: we can offer from 150-2500kg/h

For the charcoal: we can offer from 1000kg-10000kg/24hours

(5) The electrical supply in your country.

In China, our electrical supply is 3Phase, 380V, 50Hz , if the electrical supply are different with us, we will change the electrical power for you.

(6) The final usage of the product

It will depends on the usage, if you just need the briquette stick do fuel, the briquette machine are ok (if your raw material meet the requirement).

but if you want to get charcoal, you need the other set of carbonization stove to carbonizing the wood

3.the flowchart and related machinery of one year Warranty energy-saving wood sawdust waste briquette shaping machine

one year Warranty energy-saving wood sawdust waste briquette shaping machine for Kenya market make the biomass material into briquettes. After the well preparement  of raw material, briquetting is easy at right operation of biomass briquette press. When machine rise to over 300 centigrade, the material can be feeding continuously into briquetting press. First, the color of briquettes may be a little dark even black, but after a while, the color will be light to normal level coming out of biomass briquette machine.

advantage of the one year Warranty energy-saving wood sawdust waste briquette shaping machine

• No binder is needed in briquetting process, since the high temperature pressing process will soften the lignin inside the biomass and makes it adhesive.
• The briquettes made by this machine have regular shape, high density, easy to combust and durable to burn, no ash, etc. So the briquettes are welcomed by many users.
• The screw shaft, inner former and other key parts are made by high hardness alloy steel to have longer service life than those made by other manufacturers.
• The gear box is equipped with lubricating device so that the main part can be lubricated regularly.
• The machine also adopts auto-cutting system to cut the briquettes into uniform length automatically.
• It has low price and high quality, which makes it cost-effective.

 the project and the customers of the one year Warranty energy-saving wood sawdust waste briquette shaping machine

 for the single machine, the machine are packing in the plywood cases, and for the whole production line, we will ask the container to the factory to loading it

• Gongyi Xiaoyi Mingyang Machinery Plant
•  one of the largest manufactures of the briquette machine in China
•  the earliest manufacture of the briquette machine in China with 20 years experience,
•  get the ISO certificate and SGS certificate
•  We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.
•  Every machine will test before delivery and we will send the test video and other realted video to our client
•  all the motor of the machine with the CE certificate
•  product quality get the local government guarantee
•  recommend clients for free, offer the layout drawing and the profit table
•  change the electrical power for free during warranty time.
•  offer the install video and free stuff training

We offer 24 hours on-line service, if you need any help, please contact with me,  we are glad to help you.
