Home > Products > coal and charcoal equipment > coal powder ball press/ high efficient carbon powder ball press machine

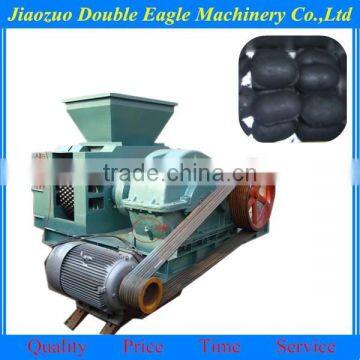

coal powder ball press/ high efficient carbon powder ball press machine
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
charcoal powder briquette machine/ carbon dust press machine
-
coal powder ball press machine/double rollers ball press machine price
-
high pressure and energy saving wood carbon powder ball press machine
-
double shaft Dry powder additives blending machine
-
double-shaft stirring mixing machine
-
horizontal shaft screw blender machine/industrial Double Shaft Mixing Machine price
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | shuangying | Model Number | SYYQ290 | |
| Voltage | 380V | Power(W) | 5.5-7.5KW | |
| Weight | 1000kg | Dimension(L*W*H) | Burner Size | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Introduction:
Coal ball press machine also is called coal powder press ball machine which can press variety powder or particle mineral powder into globular, elliptical, oval shape etc. The powder can be Iron ore powder, iron powder, fluorite powder, silicon powder, aluminum powder, magnesium powder. So this machine is a kind of energy conservation and environmental protection good machine.
The machine’s roll skin uses 65 manganese casting. After special heat treatment hardness can reach more than 58 degrees. Roll skin adopts combined assembly and can be replaced after wear and tear.
Also the machine has a buffer device and can better protect equipment from hard object impact.
Structure:
1. Feeding part: can reach quantitative feeding to ensure material evenly into the space of rollers.
2. Transmission part: motor-Triangle Strip-reducer-exposed gear-roller
3. Forming part:rollers
Technical parameter:
Model | SYYQ290 | SYYQ360 | SYYQ400 | SYYQ500 | SYYQ650 | SYYQ750 | SYYQ850 |
Power | 5.5-7.5KW | 7.5KW | 11KW | 18.5KW | 37-45KW | 45-55KW | 75KW |
Output | 1-2T/H | 3T/H | 4T/H | 6-8T/H | 22T/H | 30T/H | 40T/H |
Roller diameter | 290mm | 360mm | 400mm | 500mm | 650mm | 750mm | 850mm |
Weight | 1000kg | 1200kg | 1450kg | 2800kg | 3700kg | 8700kg | 9800kg |
