Home > Products > DAHUA Monitor Product > Dahua New Full 2Mp HD Network Auto-Tracking PTZ IR Wipe PTZ Dome Camera SD6AW220/230 -HNI

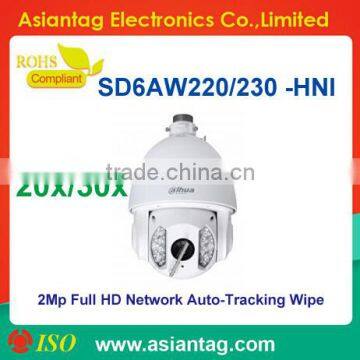

Dahua New Full 2Mp HD Network Auto-Tracking PTZ IR Wipe PTZ Dome Camera SD6AW220/230 -HNI

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Dahua
Model Number	DH-SD6AW220/230-HNI	Style	Dome Camera
Sensor	CMOS	Technology	Pan / Tilt / Zoom
Special Features	Waterproof / Weatherproof

Product Description

Specifications

Dahua New Full 2Mp HD Network Auto-Tracking PTZ IR Wipe PTZ Dome Camera SD6AW220/230 -HNI
Powerful 20x/30x optical zoom

Dahua New Full 2Mp HD Network Auto-Tracking PTZ IR Wipe Dome Camera SD6AW220/230 -HNI

Features

>Powerful 20x/30x optical zoom
>H.264 & MJPEG Three-stream encoding
>Max 60fps 720P and 30fps 1080P resolution
>Defog, DWDR, Day/Night(ICR), Ultra DNR, EIS, Auto iris, Auto focus
>Support Wipe
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 7/2 alarm in/out
>Support Auto tracking and IVS
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 150m

Technical Specifications

Model		DH-SD6AW220-HNI	DH-SD6AW230-HNI
Camera
Image Sensor		1/2.8" Exmor CMOS
Effective Pixels		1944(H) x 1092(V), 2 Megapixels
Scanning System		Progressive
Electronic Shutter Speed		1/1 ~ 1/30,000s
Min. Illumination		Color: 0.05Lux F1.6; B/W: 0.005Lux F1.6
S/N Ratio		More than 50dB
Video Output		BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC / HLC / DWDR (Digital WDR)
White Balance		Auto, ATW, Indoor, Outdoor, Manual
Gain Control		Auto / Manual
Noise Reduction		Ultra DNR (2D/3D)
Privacy Masking		Up to 24 areas
Digital Zoom		16x
Defog		On / Off
Wipe		Support
Lens
Focal Length		4.7mm~94.0mm (20x Optical zoom)	4.3mm~129mm (30x Optical zoom)
Max Aperture		F1.6 ~ F3.5	F1.6 ~ F4.7
Focus Control		Auto / Manual
Angle of View		H: 55.4° ~ 2.80°	H: 65.1°~ 2.34°
Close Focus Distance		10mm~ 1000mm	10mm~ 1200mm
PTZ
Pan/Tilt Range		Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed		Pan: 240° /s; Tilt: 200° /s
Preset		80(DH-SD), 255(Pelco-P/D)
PTZ Mode		5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup		Human-oriented focal length/ speed adaptation
Power up Action		Auto restore to previous PTZ and lens status after power failure
Idle Motion		Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task		Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol		DH-SD (Auto recognition)
IR Distance		150m (2 near IR LED+ 8 far IR LED)
Video
Compression		H.264 / MJPEG
Resolution		1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240)
Frame Rate	Main Stream	1080P (1 ~ 25/30fps) / 720P(1~50/60fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression		G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface		1/1 channel In/Out
Intelligent Function
Auto Tracking		Single-scene, multiple-scene, panorama-scene
IVS		Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger Mode		Manual / Auto (alarm triggered)
Tracking Trigger Event		Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 64GB
Alarm		7/2 channel In/Out
General
Power Supply		AC 24V/3A (±16%)
Power Consumption		20W, 43W (IR on, Heater on)
Working Environment		-40ºC ~ 70ºC / Less than 90% RH
Ingress Protection		IP66
Dimensions		Φ252(mm) x 385 (mm)
Weight		6.75kg

Application
