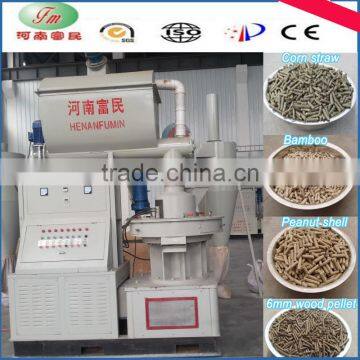

biomass pelletizer machine

Simple discription of 2t per hour biomass pelletizer machine

A.Specifications of unit biomass pelletizer machine  :

B.Working principle

• High capacity :Main power 90kw make sure it has a capacity usually of 0.8t/h-1t/h.
• It can produce 250t-312t per month every shift( 8h ) ,If two shift (16h) can produce 500-624t/month,the calculate is based on 26 working days per month.
• Main motor of wood pellet machine rotate with high speed and transfer the the power to reducer ,then the high speed power will change to slow but strong strength which have enough power to make the two gear rotation ,then the Centrifugal force of two gear will extruder the sawdust and press them to ring die ,then the pellet will come out .
• Accessory power :Screw conveyor 1.5kw,scraper discharge board 2.2kw,grease pump power 0.37kw,reducer gear pump 0.55kw ,belt conveyor 1.1kw,dust collector 1.5kw

• Spare parts of wood pellet making machine
•

Wood pellets machine of sawdust  Working scene :

 Two set wood pellet wood pellet line

Include:

1.One 5m screw conveyor (Or 6m belt conveyor)

 2.Two pellet machine (Two MXKJ-9S-3)

 3.Two electric control cabinet

 4.One dust collector

5.Capacity :2-3t per hour

As the same power ,two pellet machine can has big capacity than one pellet machine ,the capacity increase ratio “capacity/power”s than unit pellet machine with 4t per hour ,so it save the electric .

Pellet features

Density 0.9-1.6g/cm3,easy store and transportation ,3500-5500 Kilocalorie.

Pellet making machine wood delivery scene

Our customer :

1.Machine pellets installation service :

We can arrange a technician team to instruct and help you install the wood pellet machine line ,and training your woker ,make sure you can produce good pellet.

2.After sale service

During warranty time (One year )  , if  the  damage  of  components caused  by machine quality, then the components fee is free,the easy damage part such as gear and mold ,etc is not in this warranty,except that damage caused by person reason .

1.Material for wood pellet:

Palm fiber ,EFB,sawdust,straw,rice husk,wood waste.etc;

Moisture content <12%;

Material size <6mm.

2.Our main market :

United states,Thailand,Vietnam,Malaysia,Singapore,etc.

3.Work hours:

Our pellet machine has grease maintenance pump to lubricate two rotation roller and bearing ,also with gear pump to maintenance the reducer ,make sure machine can have a continuously work time more than 20hours.

4.Machine pellet wood making structure and advantage

Ring die mold ,flat (level) location,double layer mold ,when it working it just use the under layer to and totation gear to press pellet .When this layer worn out use the other layer mold ,make sure the motor and reducer can support enough strengh to the press rollers .Level mold make it easy to radiation and has little unformed pellet.
