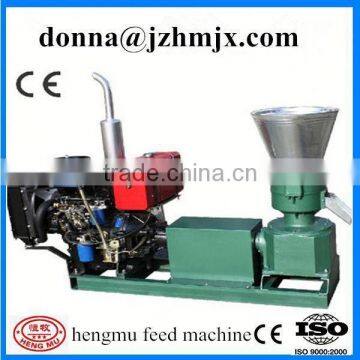

Low temperature rise and long working life mobile pellet plant

1). ZLSP series flat die pellet mill can produce flat-mode suppression of biomass particles.

2). Our product using cold forming technology and cosmetic polishing process.it has beautiful appearance and compact structure.

3). High output,low energy consumption ,low noise low failure ,fatigue and strong machine,continuous production,economic machine.

4). The whole machine uses a special high quality materials and advanced with shaftdrive,the key components of high quality alloy steel plus wear-resistance material.the use of German vacuum furnace heat treatment to extend the service life 5-7 years.

1.Our CE flat die pellet mill are Improved model stronger and square frame for making pellets,   Flat die is made with international advanced equipment for long lifespan, The key parts are made of alloy steel to be very strong and malleable.

2.Our Flat-die pellet press is for pressing all kinds of bio-mass material to be

solid pellets which is for burning fuel or animal feeding. Its ideal pellet press

for personal, family and small plants due to easy operation and maintenance.

3.Drive with heavy-duty gearbox, which can produce continuously in most

advantageous condition,  The important key elements are of high performance with long life and low maintenance cost.

4. The workable raw material can be any type of Agro waste; Fodder, Chemical; Forestry wastes; lumber leftover; Saw dust; Wood Chips, Widely used in pelletizing for wood, straw and rice hull and other biomass sources and so on,  Our household Pellet Mill is appropriate for crude fibre compression forming, such as: maize straw, peanut shell, rice husk, corncob, cotton seed hull, wheat-straw, sunflower seed shell, sawdust, cotton stalk, weeds, etc. all kinds of agricultural straws, house refuse, waste plastic and wastes in factory. It is also suitable for raw materials which are difficult to form with low bonding ratio. Furthermore, organic bacterial manure, organic fertilizer and compound fertilizer are applicable to pelletize under low temperature

5.Simple operation, easy to use: a high degree of automation, less labor, only need three people, the use of artificial feeding or conveyor automatic.

6.Roller autoregulation function:Roller autoregulation function: the principle of bi-directional rotation of the thrust bearing to automatically adjust the pressure angle, so that the materials are not crowded groups, not boring machine, to ensure that the material forming stable.

7.Materials adaptable: adapt to a variety of biomass materials, molding, straw from powder to 50mm length, moisture content  between 5 to 30%, can be processed shape.The final product pellet is dried, compressed, and formed into small eraser-sized bits. They are clean, pleasant smelling and smooth to touch.

Model

Motor

Capacity

(kg/h)

Dimension

(cm)

N.W./G.W.

(kg)

Raw material

moisture content

Wood pellet

Feed pellet

9KJ120A

8HP diesel

40-60

60-100

73*32*67

120/135

12%-20%

9KJ120B

2.2KW 220V 50HZ

40-60

60-100

75*31*62

80/100

12%-20%

3KW 380V 50HZ

9KJ150A

8HP diesel

50-100

100-200

76*43*71

130/150

10%-15%

9KJ150B

4KW 380V 50HZ

90-120

150-220

77*34*68

95/115

10%-15%

9KJ150Q

13HP gasoline engines

50-100

100-200

76*43*71

130/150

12%-20%

9KJ200A

15HP diesel

110-180

220-350

118*56*102

320/360

10%-15%

9KJ200B

7.5KW 380V 50HZ

100-150

200-300

100*43*95

190/210

10%-15%

9KJ200C

7.5KW 380V 50HZ

100-150

200-300

100*45*93

200/220

10%-15%

9KJ230A

22HP diesel

150-200

300-400

118*56*95

360/390

10%-15%

9KJ230B

380V 50HZ 11KW

150-200

300-400

114*50*97

280/310

10%-15%

9KJ230C

11KW 380V 50HZ

150-200

300-400

115*50*97

290/320

10%-15%

9KJ260A

30HP diesel

200-300

400-600

184*70*116

600/630

10%-15%

9KJ260B

15KW 380V 50HZ

200-300

400-600

120*50*103

330/360

10%-15%

9KJ260C

15KW 380V 50HZ

200-300

400-600

120*50*103

340/370

10%-15%

9KJ300A

55HP diesel

300-400

600-800

220*60*123

730/780

10%-15%

9KJ300B

22KW 380V 50HZ

300-400

600—800

132*53*107

430/470

10%-15%

9KJ300C

22KW 380V 50HZ

300-400

600-800

132*53*107

440/480

10%-15%

Spare part

Brand Name

Electric motor

SIEMENS (Germany)

Level detector

Autonics (Korea)

Crusher Bearing

NSK(Japan)

Pellet machine bearing

SKF(Sweden)

IPC(industrial personal computer)

ADVANTECH Industrial Controlled Computer (Taiwan)

position switches

Omron (Japan)

Reduction box

Itc cathay Pacific (Jiangsu China)

1. Q: Are you a trading company or a manufacturer?

A: We are a manufacturer, which has almost 19 years of experience in this industry.

2. Q: How can I get to your company?

A: You can get a flight to Xinzheng Airport. We are just about 50 mins away from the

Airport.

3. Q: How long is your guarantee?

A: One Year (Calculated from the equipment arrives the customer’s side.). After

this period we will definitely still support you when needed. You will be welcome to

contact us with any problem and experience.

4. Q: Will you send engineers to install the plant?

A: yes, but at an extra cost payable by the customer.
