Export to Russian 500kg capacity Vertical sawdust dryer price

Company Information

Jinan Xinneng Machinery Equipment Co., Ltd. located in Jinan City, the capital of Shandong Province.

It has been specialized in biomass energy’s technology development and promotion since 2006, won lots of national technical patents in the field of biomass energy’s utilization.

With professional R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of biomass energy’s utilization and all our products have got CE certificates.

Main Products:

Biomass briquette machine, Wood crusher, Vertical dryer, Biomass burner and Gasifier.

 Product Description

Biomass sawdust dryer price with dust collector series wood dryer adopts vertical kiln structure, with several cloth screens inside.Raw material could be sent into the dryer by a screw feeder, and come out from another screw outlet. On each cloth screen, materials will be stirred and rolled into next cloth screen, during this process the materials will be heated for several times, then reduce the moisture.

Both the screw feeder and the draught fan use frequency conversion control, to control the speed of feeding and the amount of the heat, so as to realize that using energy efficiently. The dryer also surronded by thermal insulation material, which can prevent the heat loss and accidental burnt.

The whole machine of sawdust dryer price

Technicals

Model: XNH-500A

Application Initial Moisture: 30%-50%

Final Drying Moisture13-18%

Drying Capacity 500-600Kg/H

Fan Power 7.5KW

Fan Wind Capacity 5800 m³/h

Drying Pipe Diameter 325mm

Drying Pipe Material Q235-B

Thickness Of the Drying Pipe 4mm

Temperature of the Inlet: 250-300

Temperature of the Outlet: 60

Direct Burning Hot Wind Stove Size:1200*800*1200mm

Fuel (firewood) Consumption 40-50kg/h Biomass fuel

Max Height Of the Drying Pipe 3.8-4 Meters

Saw Dust Drying Travel Distance In Drying Pipe 35Meters

Machine Weight: 3500kg

 Vertical dryer raw Materials

Vertical dryer is used in sawdust, straw, millet straw, wheat straw, corn straw, peanut straw,

bean straw, tree leaves, cottonseed husk, cotton straw, shrubs and many other types of agro-forest waste.

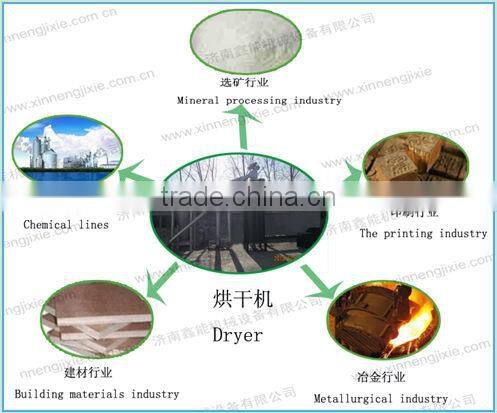

 Applications for Vertical dryer

Vertical dryer is widely used in mineral processing industry, the printing industry, metallurgical industry,

build materials industry and chemical lines. It’s good to high temperature, reduce the moisture, dry materials.

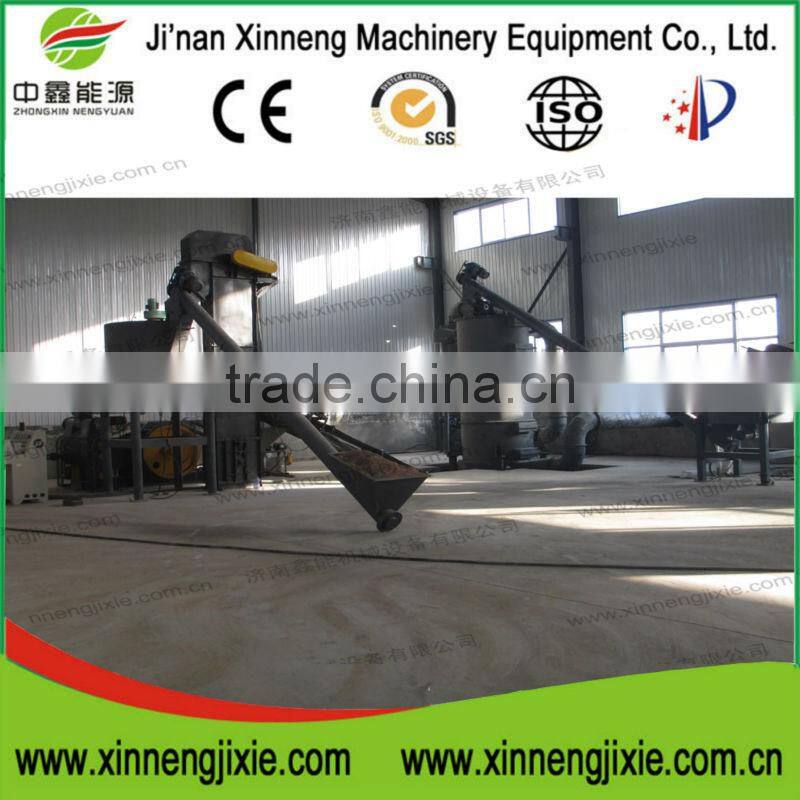

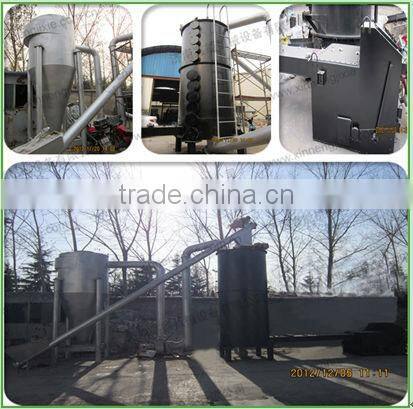

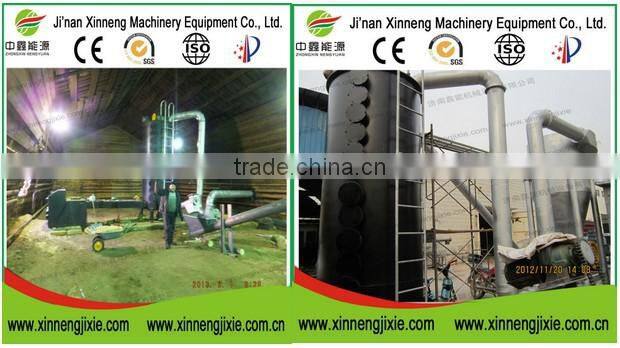

 Customers production site

Customers production site for sawdust dryer price

Our Services
Our services for sawdust dryer price
1. The warranty is 12 months.
2. We provide after-sale services through the email, fax or telephone and we will definitely response within 24 hours once we received the message or any information.
3. Our engineers could provide complete design plans based on your materials or any other equipments according to your data and information.
4. We also provide engineers to go to your factory and train your technicians.
5. OEM Services.

Patented and CE certificates

Patented and CE certificates for all our Biomass sawdust dryer price and other machines.

Contact information

Talk with us. We will be happy to advise you.
