India High Cpacity Sawdust Wood Chip Dryer for Sale

Company Information

Jinan Xinneng Machinery Equipment Co., Ltd. located in Jinan City, the capital of Shandong Province.

It has been specialized in biomass energy’s technology development and promotion since 2006, won lots of national technical patents in the field of biomass energy’s utilization.

With professional R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of biomass energy’s utilization and all our products have got CE certificates.

Main Products:

Biomass briquette machine, Wood crusher, Vertical dryer, Biomass burner and Gasifier.

 Product Description

Vertical wood chip dryer adopts vertical kiln structure, with several cloth screens inside.Raw material could be sent into the dryer by a screw feeder, and come out from another screw outlet. On each cloth screen, materials will be stirred and rolled into next cloth screen, during this process the materials will be heated for several times, then reduce the moisture.

Both the screw feeder and the draught fan use frequency conversion control, to control the speed of feeding and the amount of the heat, so as to realize that using energy efficiently. The dryer also surronded by thermal insulation material, which can prevent the heat loss and accidental burnt.

The whole machine of wood chip dryer

Technicals

Name: Biomass Dryer Machine

Model: XNY-1000A

Application Initial Moisture: 30%-40%

Final Drying Moisture: 15-20%

Drying Capacity: 1000-1200Kg/H

Fan Power: 4KW

Fan Wind Capacity: 3932m³/h

Direct Burning Hot Wind Stove Size: 1400*1100*1200mm

Fuel (firewood) Consumption 80-150kg/h Biomass fuel

Max Height Of the Drying Pipe 4.5 Meters

Machine Weight 13000kg

 Vertical dryer raw Materials

Vertical dryer is used in sawdust, straw, millet straw, wheat straw, corn straw, peanut straw,

bean straw, tree leaves, cottonseed husk, cotton straw, shrubs and many other types of agro-forest waste.

 Applications for Vertical dryer

Vertical wood chip dryer is widely used in mineral processing industry, the printing industry, metallurgical industry, build materials industry and chemical lines. It’s good to high temperature, reduce the moisture, dry materials.

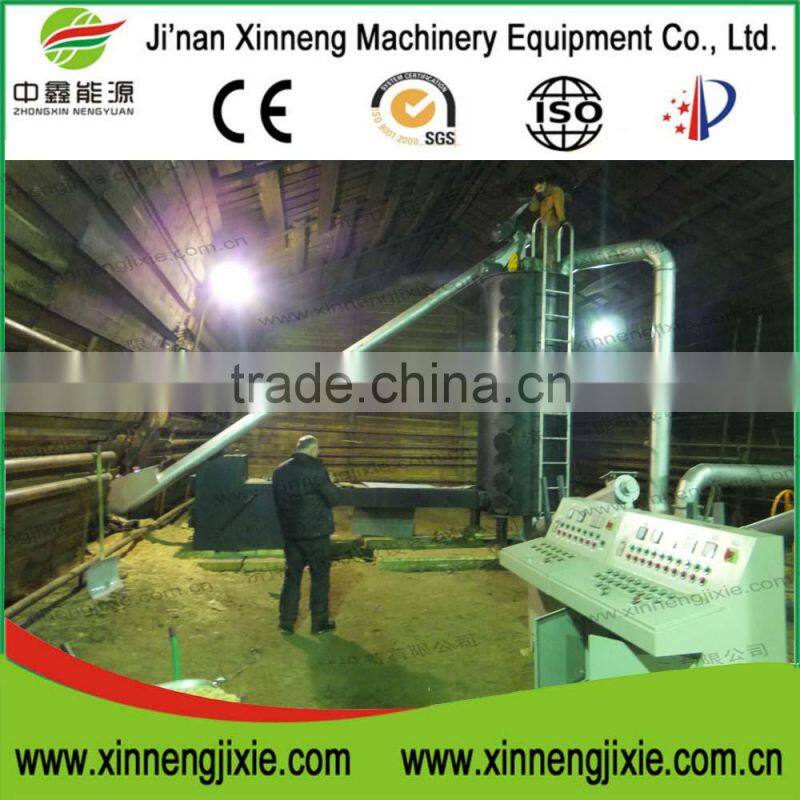

 Customers production site

Customers production site for wood chip dryer

Our Services
Our services for vertical wood chip dryer
1. The warranty is 12 months.
2. We provide after-sale services through the email, fax or telephone and we will definitely response within 24 hours once we received the message or any information.
3. Our engineers could provide complete design plans based on your materials or any other equipments according to your data and information.
4. We also provide engineers to go to your factory and train your technicians.
5. OEM Services.

Patented and CE certificates

Patented and CE certificates for all our vertical wood chip dryer and other machines.
