Home > Products > Motor Grader > China Brand Construction Machinery MOTOR GRADER XCMG GR135 for Sale

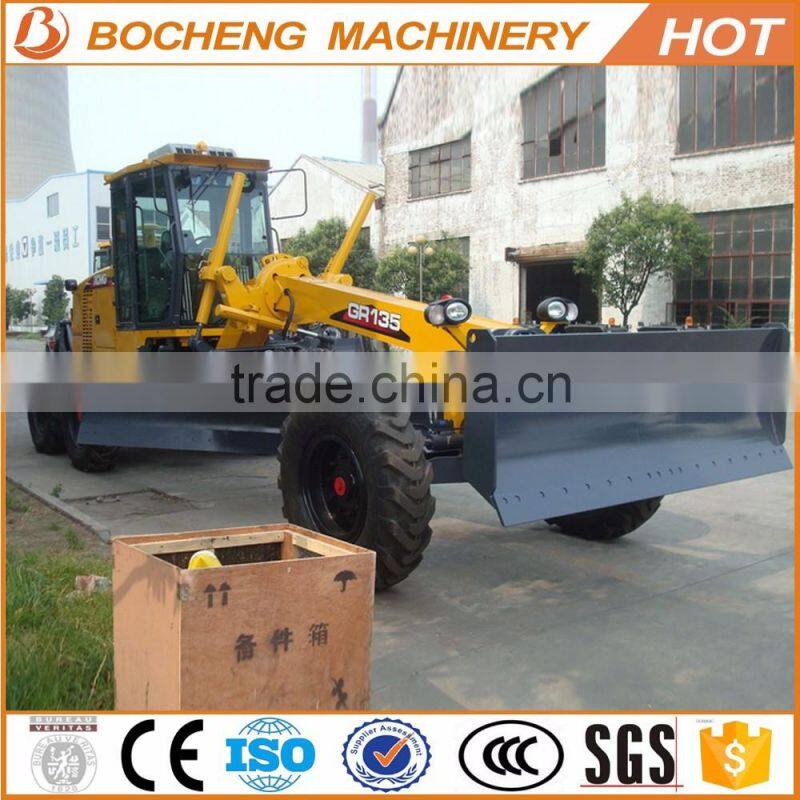

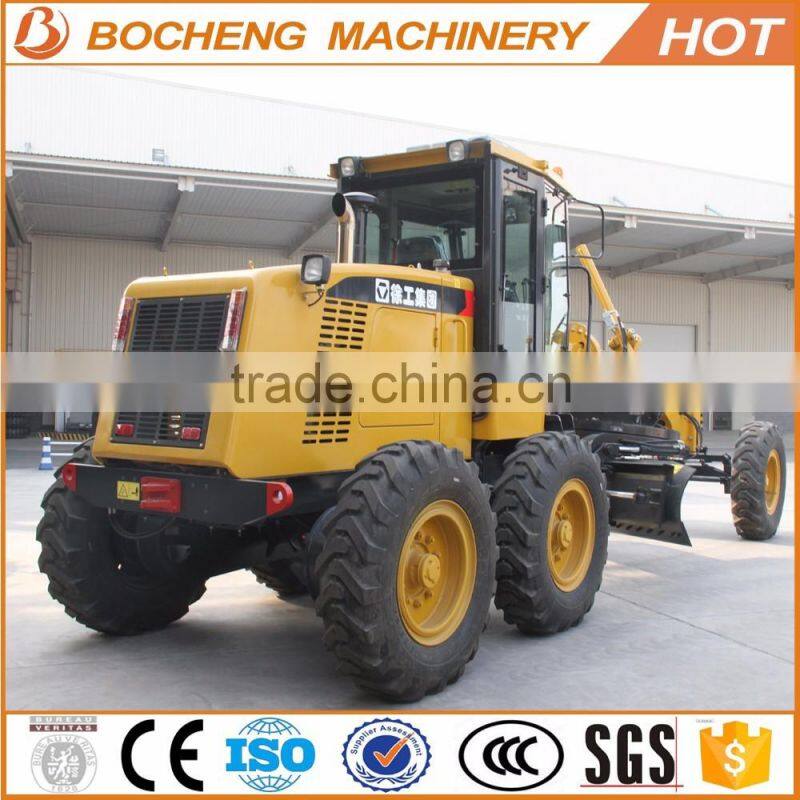

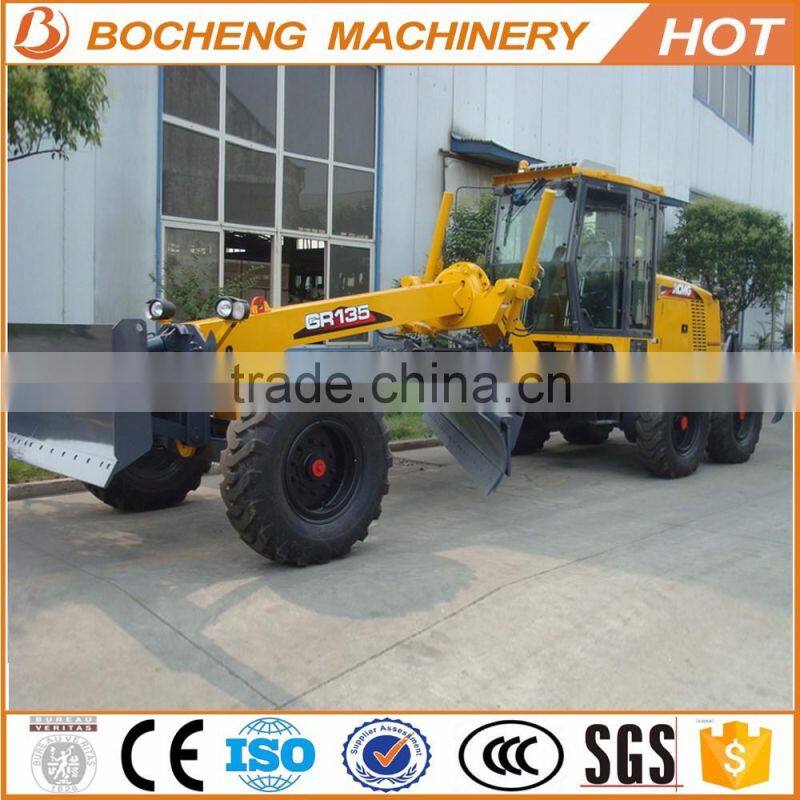

China Brand Construction Machinery MOTOR GRADER XCMG GR135 for Sale
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Cheap XCMG Motor Grader GR180 With High Quality for Sale
-
China Brand Construction Machinery MOTOR GRADER CTB135MG for Sale GR135
-
Low Price XCMG Motor Grader GR135 With Rippers For Sale
-
Best Price China XCMG GR135 Mini Motor Grader For Sale
-
Grader Price China Motor Grader GR135
-
China Road Machinery Cheap Price XCMG Motor Grader GR135 For Sale
Product Details
| Condition | New | Forward Speed(km/h) | 42 | |
| Reverse Speed(km/h) | 30 | Place of Origin | Jiangsu, China | |
| Brand Name | XCMG | Model Number | GR135 | |
| Weight | 11ton | Dimension(L*W*H) | 8015x2380x3050 | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
135hp Motor Grader
Basic specification | |
Engine model | 6BT5.9 |
Rated power/speed | 100/2200kw/rpm |
Dimension(LxWxH) | 8015×2380×3050mm |
Operating weight(Standard) | 11000kg |
Performance specification | |
Travelling speed ,forward | 5,8,13,20,30,42km/h |
Travelling speed ,reverse | 5,13,30km/h |
Tractive force(f=0.75) | 61.3KN |
Max. gradeability | 20% |
Tire inflation pressure | 300kPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±49° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 16 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 6.6m |
Blade | |
Maximum lift above ground | 410mm |
Maximum depth of cutting | 535mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 3710×610mm |
