Home > Products > PVC Valve & Fitting > ball valve socket weld
ball valve socket weld
- 500000 Piece / Pieces per Month
- Ningbo
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
Standard or Nonstandard | Standard | Structure | Shutoff | |
Pressure | Medium Pressure | Power | Hydraulic | |
Material | Plastic | Temperature of Media | Medium Temperature | |
Media | Water | Port Size | socket and thread | |
Place of Origin | Zhejiang, China | Model Number | 910301 | |
Brand Name | ball valve |
Product Description
Products Name: ball valve socket weld
Material | Nut: Polypropylene Body: PVC Clinching-Ring: POM O-ring: Rubber NBR or EPDM |
Color | GRAY |
thickness | 1.2mm-2.5mm |
Specifications | DN15-DN100 |
Working temperature | for cold water ≤ 60 °C during transfer |
Working Pressure | From diameter 16mm to 63mm, PN16; above 63mm, PN10 |
Conventional pressure | 0.1Mpa-2.5Mpa Note: You can also according to customer requirements for pipe material, thickness, size and pressure in areas such as customized |
Connection | threaded connections |
Size: | 1/2"-4" |
Standard | ANSI. DIN.BS.JIS |

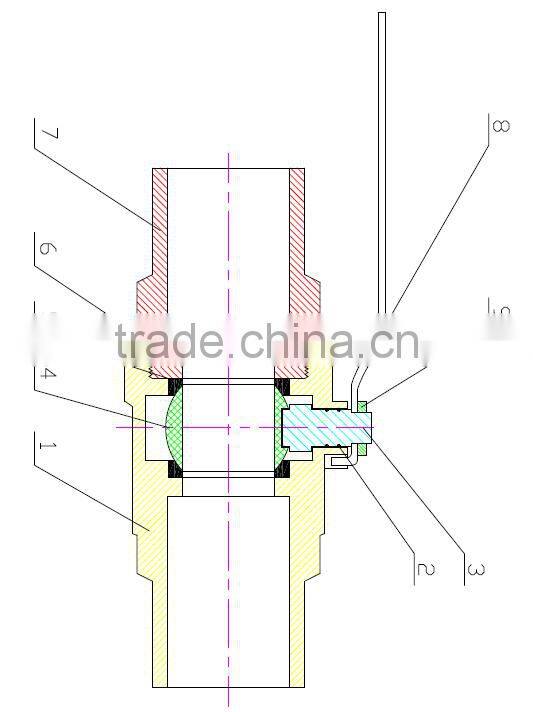

Material List for 2pcs ball valve:
NO. | PART | MATERIAL | Q'TY | |
1 | Body | PVC | 1 | |
2 | Stem O-Ring | EPDM, FPM(NBR) | 1 | |
3 | Stem | PP | 1 | |
4 | Ball | ABS PLATED WITH CHROME | 1 | |
5 | Seat Seal | TPE | 1 | |
6 | Carrier O-Ring | EPDM, FPM(NBR) | 1 | |
7 | End Connector | PVC | 1 | |
8 | Handle | STAINLESS STEEL WITH PLASTIC COVER | 1 | |
9 | Union Nut | BRASS | 1 |
Adavantages
1) light weight, convenient handling and corrosion-resistant
2) chemical stability , fluid resistance
3) anti-aging, long life
4) Healthy and non-toxic, free of stain and scale
5) Smooth inner wall ,reducing pressure loss and increasing flow speed
6) Low noise ,reduced by 40% compared to galvanized steel pipes
7) Soft colors and excellent design, suitable for installation either exposed or hidden
8) Easy and fast installation, making cost minimized
9) Ball valve ,plastic ball valve, pvc ball valve
Application
Ball valve is applied to construction, electrical conduit, agricultural irrigation, industrial sewage and other projects using .
1) Cold and hot water supply systems for civil and industrial constructions, e.g.in residential buildings, hospitals, hotels, school and office buildings, ship building
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems

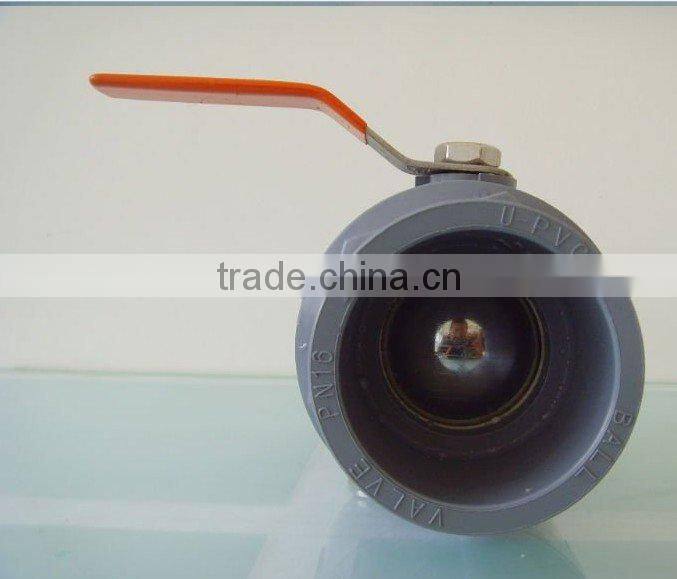

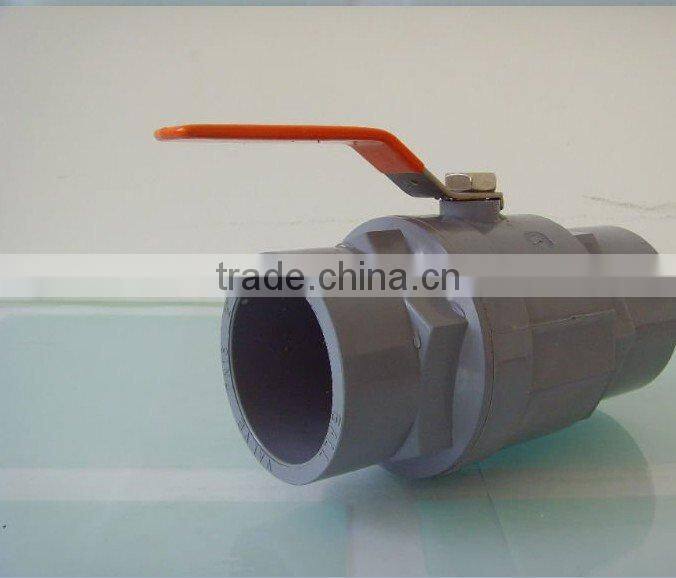

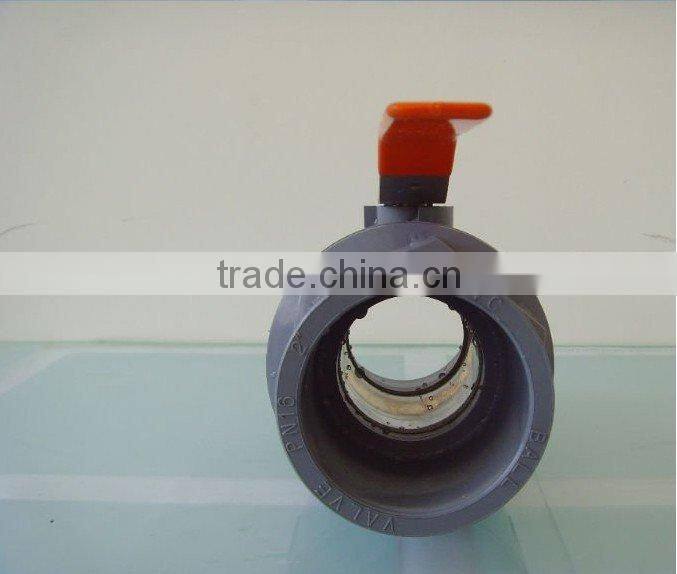

Products Real Picture:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Service Advantage:
1. 10 years manufacturing and exporting experience in agriculture field.
2. Professional technical support and solution by Chief Engineer.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Multilingual communication services (English, Spanish, French, Portuguese, Japanese etc.)
6. Full range of irrigation products for choice.
7. Accept sample order before Mass Order.
8. OEM/ODM services.
Quick Response:
NINGBO EVERGREEN IRRITECH CO., LTD.
Attn.: Grace Xu
Tel and whatsapp: +86-180 0665 5726
TradeManager:CN200845070
Skype: nbevergreen05
