ISO Certificate High Quality Manure Fertilizer Pellet Machine

ISO certificate Pellet making machine wood pellet mill wood pellet machine

General Description of wood pellet machine

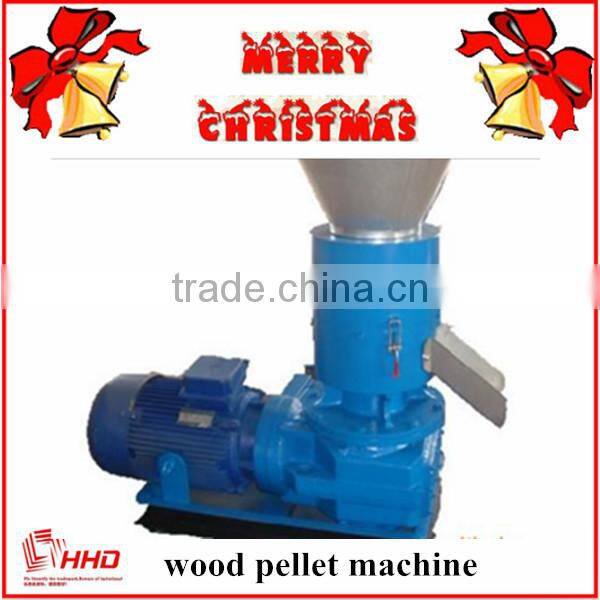

wood pellet machine

1.Power: 22KW

2.Capacity:200kg/h

3.CE&ISO approved

4.Pellet diameter:6—10mm

  Brief Introduction of  wood pellet machine

Pellet machine is suitable for making straw pellet, sawdust pellet and feed pellet. It is multifunction.The materials can be grain stalk,grass,sawdust,corn straw,wheat straw,corn,grain,wheat and so on.

1.For wood pellets use:

This series flat die pellet presses can be used for producing wood pellets and biomass pellets, tooWood pellets are made of all kinds of wood waste. Biomass pellets are made of peanut sheller, corn stalk and other biomass materials.

2.For feed pellet use:

The compressed straw piece is suitable to be used as fuels and feedstuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for large farms, and organic herbal medicine and chemical industry etc.

Features of  wood pellet machine :

1. We manufacture the machines in accordance with the European standard.

2. All of our machines have passed CE certificate.

3. Our flat die type pellet machine is for pressing biomass materials to be solid pellets which is for burning or animal feed.

4. You can use nearly all kinds of biomass as raw materials, such as agricultural waste, straw, fodder, forestry wastes, lumber leftover, sawdust, wood chips and so on.

5. As for the power, you can choose the gasoline engine driven, diesel engine driven or electric motor driven. And we have many different models with different output, they can meet different required capacity.

6. Our pellet machines are ideal pellet press for personal, family and small plants. They are very easy to operate and maintain.

7. SW series pellet machine is one of our latest improved models. It is specially for making wood pellets, Unique design for motor and gearbox, new roller rotating instead of previous die rotating. More than 20% output capacity increase than old models.

Wood pellet machine parameter:

Advantages of wood pellet machine

1). Structure: This series of wood pellet machines are consist of Electric motor/Diesel Engine, Gear Box, Axis, Flat Die, Roller, Feeding room, Cutting blade, Outlet.

2). Working principle:  This series pellet machine uses the diesel engine or electric motor as power. The gears derive the spindle and die. The raw materials are forced out of the die holes by the squeezing action of the die and roller. Then the high quality pellets are produced. The length of the pellets can be controlled by adjusting the position of the tool bit.

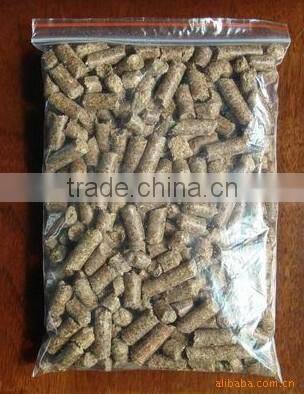

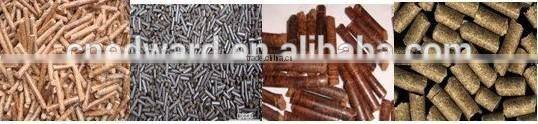

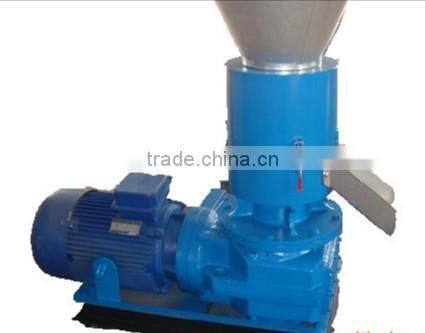

Picture of  wood pellet machine

FAQ of wood pellet machine  :

Q1: The machine works well, but it can not make pellets, it is hard to form pellets. What can I do?

Answer: If the moisture is too high or too low, it is hard to form pellets. It would be better if the moisture is between 13-25%, and the moisture depends on the raw materials. Different raw materials, different moisture.

Q2. How can I make shining wood pellets without any additive?

Answer: Control the moisture of raw material. Proper moisture can help you make beautiful pellet. Or try to add some waste oil, the oil can help the pellets forming and make the pellet machine life longer.

Q3. The capacity becomes smaller after a period of time use, why?

Answer: Probably because the gap between die and rollers is too big. Please decrease the gap between die and rollers. Or it is because the moisture of raw materials is too low. Add some water to increase water content.

 .
