Home > Products > Wheel loader > Mini Payloader Zl28f With Epa
Mini Payloader Zl28f With Epa
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Brand Name | FM | |
| Model Number | ZL28F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6500x3050x2100 mm | Rated Load | 3000kg | |
| Certification | CE, EPA, ISO | Warranty | 13 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE approved ZL28F wheel loader for Australia market
Engine | |
Model | Weichai 4RMAZG – 83KW |
Engine Type | In-line arrangement, water-cooled, four-cycle diesel Engine |
Rated power | 83kw |
Rated speed | 2400r/min |
Fuel Consumption ratio in standard working condition | 230g/kw.h |
Transmission System | |
Type | Fixed-spindle Power shift |
Rated input speed | 2500 (rpm) |
Bucket | |
Bucket Capacity | 1 CBM |
Bucket width | 2000mm |
Bucket type | Heavy-duty bolt on teeth |
Max. Breakout Force | 62KN |
Rated Load | 3000kg |
Operating Weight | 6100kg |
Overall Dimensions | |
Overall Length (Bucket on ground position) | 6500mm |
Overall Height | 2100mm |
Overall Width | 3050mm |
Operating Specifications | |
Steering System | Articulated Frame with hydraulic power steering |
Min Turning Radius | 4500mm |
Driving System | Hydraulic converter |
Brake System | |
Service Brake | Four Wheel Hydraulic spread-shoed brake |
Parking Brake | Hand operated |
Tyre | |
Model | 16/70-24 Big Tyre |
Wheelbase | 2100mm |
Track | 1500m |
Shipment | 2 units in 40’HQ |

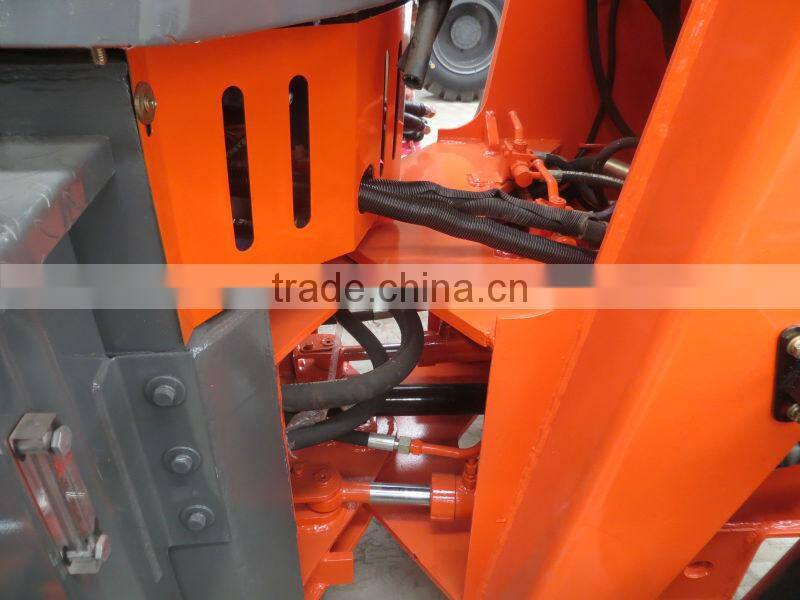

Articulate and floating valve
Contact Us
- Weifang Fumei Import & Export Co., Ltd.
- Contact nameEric Lee Chat Now
- Phone0086-536-8073928
- AddressHi-Tech Zone, Weifang, Shandong, China , Weifang, Shandong
