Wheel Loader Zl20f ,pallet Fork
Negotiable
/ Unit
1 Unit(Min. Order)
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | FM | |
| Model Number | ZL20F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5800*2000*2750mm | Rated Load | 2000KG | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
2.0 ton ZL 20 wheel loader with cummins engine1.Engine model: LUOTUO 4108
2.Rated bucket capacity: 1.00CBM
2.0 ton ZL 20 wheel loader with cummins engine
| ZL20F | |
| Model | ZL20F(Automatic gear) |
| Rated loading weight | 2000kg |
| The minimal circle diameter | 310mm |
| Rated bucket capacity | 1.00CBM |
| Track base | 1500mm |
| Wheel base | 2350mm |
| Min.swerve diameter | 4600mm |
| Min.ground clearance | 350mm |
| Dump height fully raised | 2800mm |
| Reach fully raised | 1050mm |
| Lifting time | ≤5.0s |
| Driving mode | Four-wheel full hydraulic drive |
| Transmission gear box form | 2 gear hydraulic variable speed changes |
| Operating weight | 5900kg |
| Dimension(L×W×H) | 5800*2000*2750mm |
| Engine model | LUOTUO 4108 |
| Rated power | 60kw |
| Rated speeds | 2400rpm |
| Max.tilt anglle | 30° |
| Max.bucket breakout force,lift cylinder | 60KN |
| Mzximum Speed | 25km/h |
| Tire type | 16/70-20 |
| Drive Mean | Four are drive |
| Brake mode | Four-wheel hydraulic spread-shoed brake |
| Minimum order quantity | 1Unit |
| Port | Qingdao |
| Packaging details | Nude package,2Units/40's HQ |
| Delivery time | 20days after confirm the order |
| Supply ability | 100units per month |

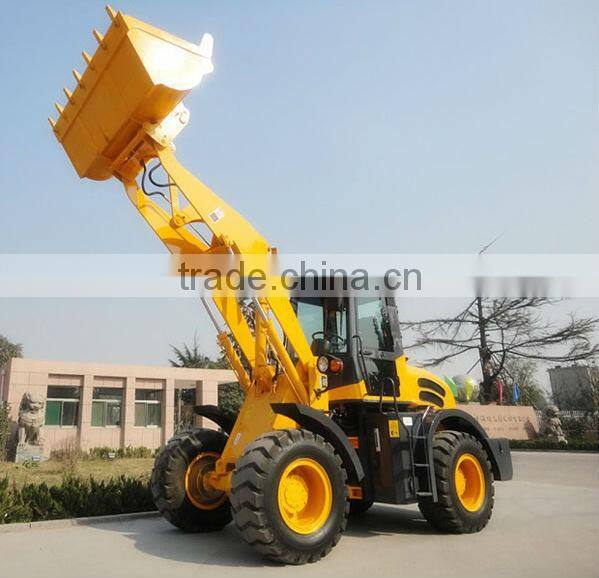

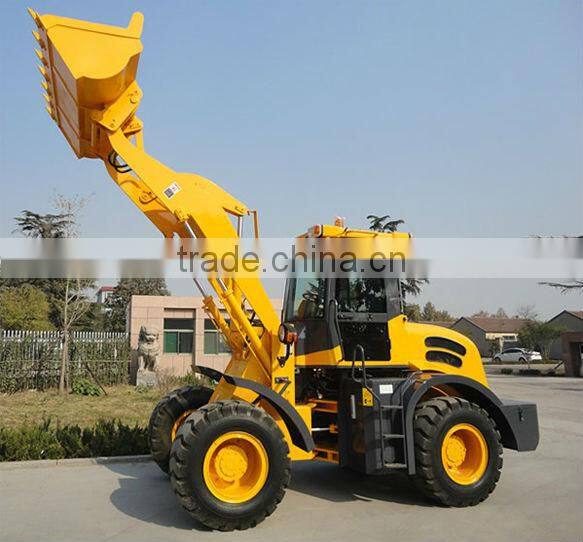

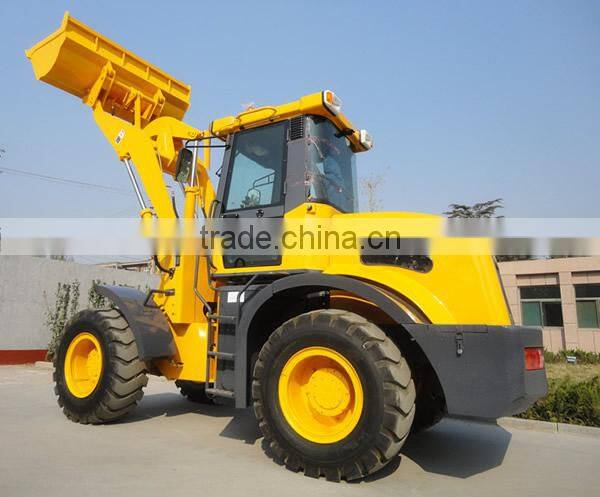

Wheel loader with standard bucket and quick hitch(optional)

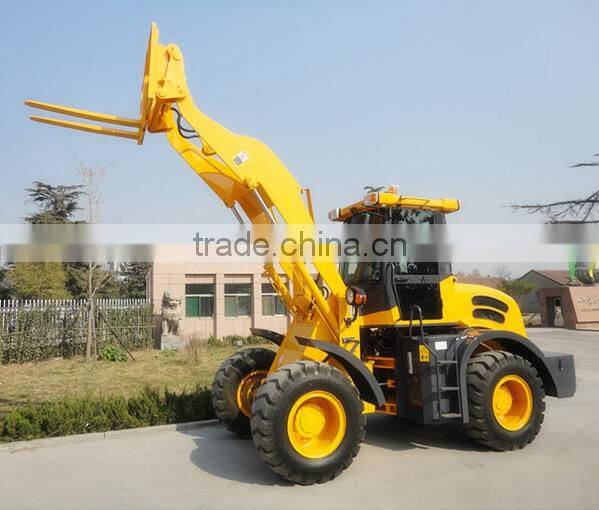

Wheel loader with pallet fork and quick hitch(optional)

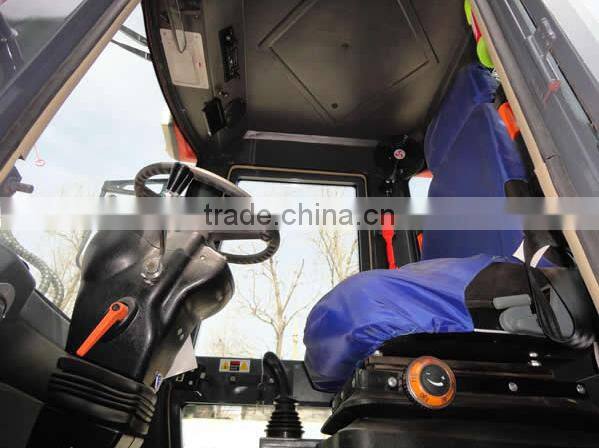

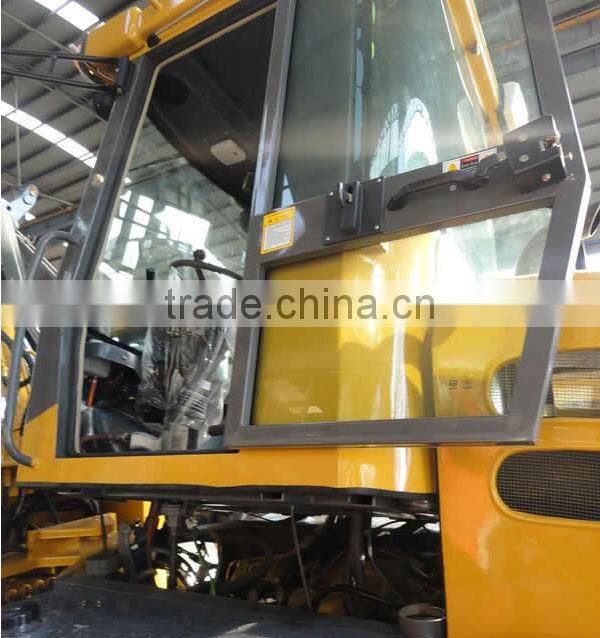

Tapping cabin, convenient for maintaining

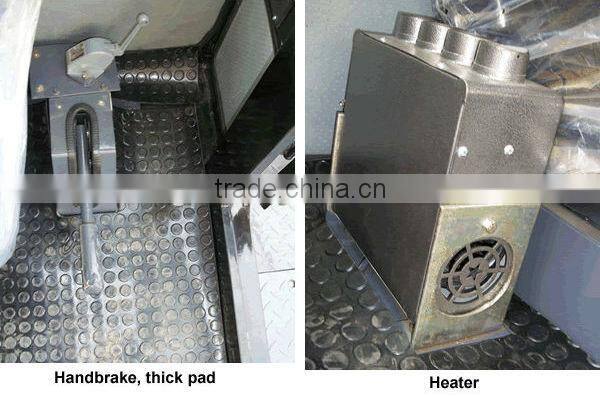

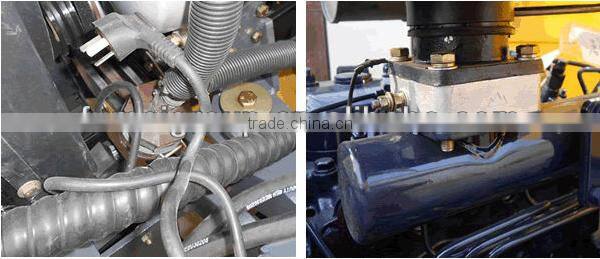

220V independent preheater and preheating device, make the engine
easy to start in cold weather very time-saving and efficient

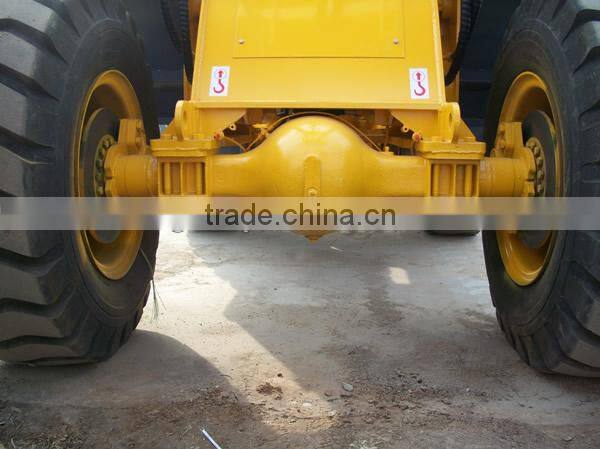

Big hub reduction drive axle

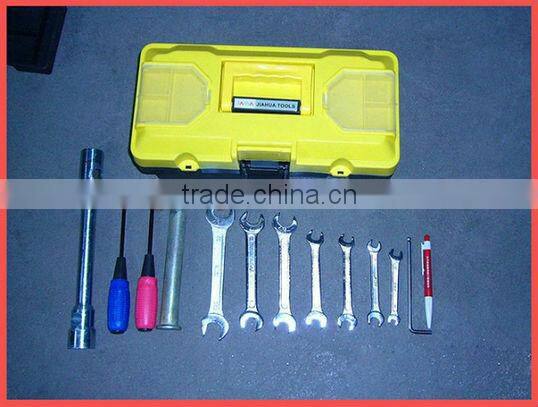

Tools

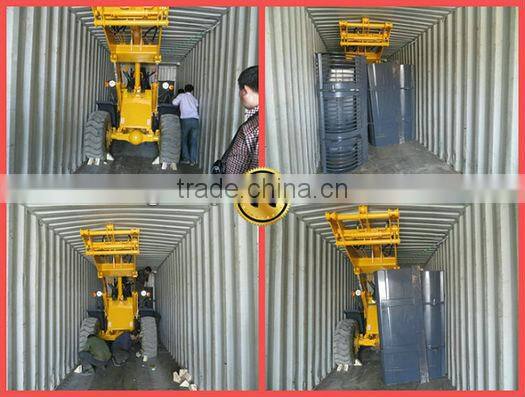

Loading container process
