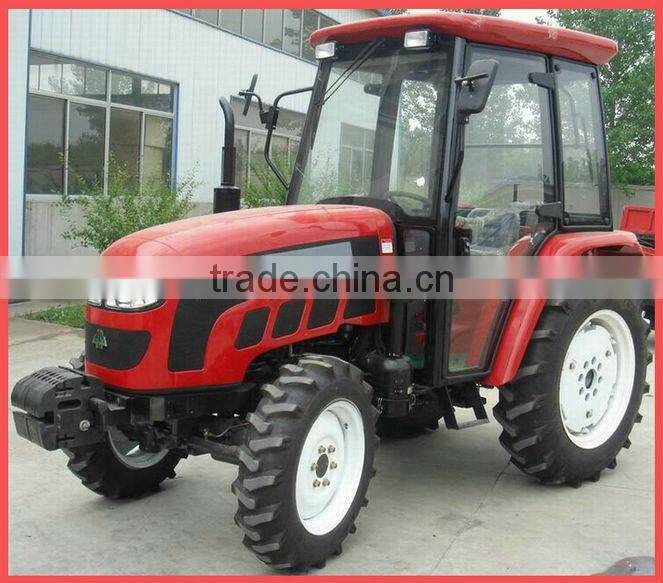

Compact Tractor 504 From China

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	36.7
Certificate	CE	Brand Name	FM
Model Number	504	Place of Origin	Shandong, China
After-sales Service Provided	Overseas third-party support available

1. 504 farm tractor
2. 50hp wheel tractor
3.4*4 wheel drive
4.Various farming implements

Tractor Model			TY 504
Type			4WD Wheeled Type
(mm)Dimensions of Tractor	Length (to front ballast)		3835
	Width		1620
	Height (to the exhaust vent)		2135
	Tread	Front Wheel	1280
		Rear Wheel	1300 Fixed or 1200~1500 Adjusted
	Axle Base		2030
	Min.Ground Clearance		325
Structure weight (kg)			1734
Ballast weight (kg)	Front ballast		168
	Rear ballast		300
Rated traction force (kg)			1150
Engine	Model		498/4100
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		36.7
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		8.3-20
	Rear Wheel		12.4-28
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift
Suspension Type			3-point links
PTO	Type and Rev		Semi-independent Type 540/1000
	Spline Size		F35 Rectangle Spline with 6 teeth

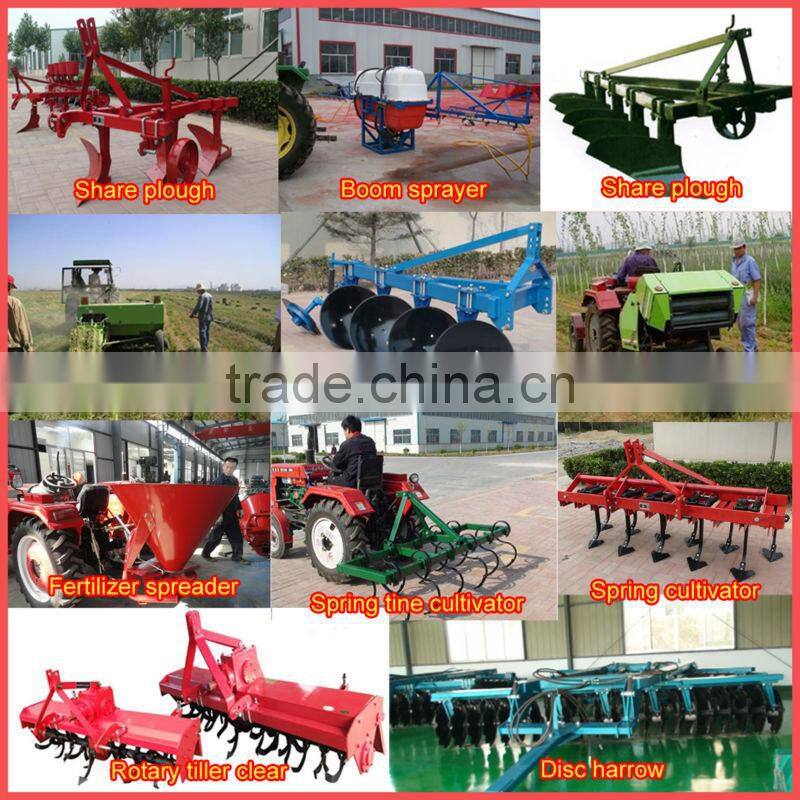

Attachments as follows:
