80hp 4wd Tractor With Cabin With Front End Loader

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	59kw
Certificate	CE	Brand Name	FM or OEM as required
Model Number	804	Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas

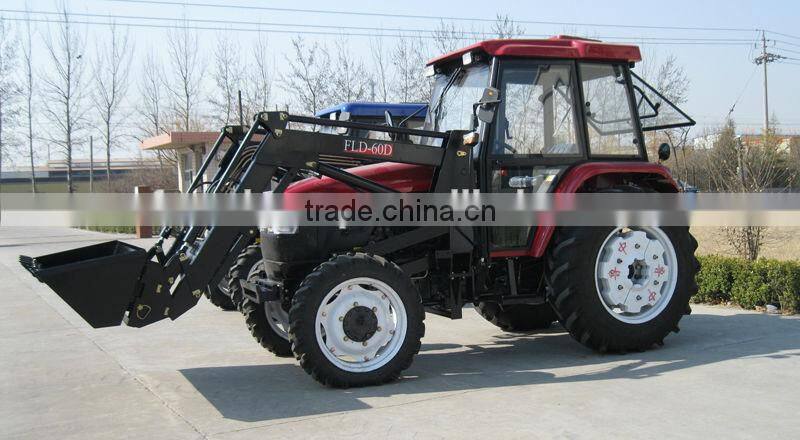

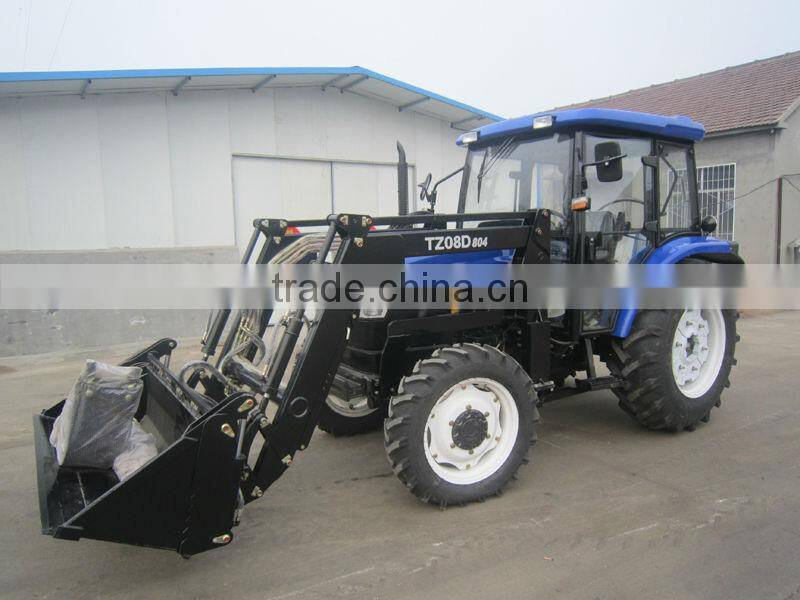

80hp 4wd tractor with cabin with front end loader
1.Engine model:LR4B5-23(59kw)
2.Tire(front/rear wheel):8.3-24/14.9-30

80hp 4wd tractor with cabin with front end loader

Feature:

1.Adopting Dong fang hong famous diesel engine,good reliability,large torque reserve,low fuel consumption, high economic benefits;

2.Operate independently double clutch ,high transfer ability,reliable effect,operation more comfortable;

3.Gear box use 4X(4+2),16 forward gears,8 reverse gears, gear are reasonable,high working efficiency;

4.Adopt independent power output device,steady transmission,large bearing capacity;

5.Using independent oil hydraulic steering system operation,flexible operation,reliable energy saving;

6.Using disc brakes,large braking torque,good braking effecting;

7.Using forced type lifter, reliable use, convenient maintenance;

8.Final drive adopts planetary reduction structure,compact structure, large reduction ratio;

9.New streamlined appearance, greaceful ,HY,fashion

Model	804
Type	4WD Wheeled Type
Length(to the front ballast)	4090mm
Width	1900mm
Height (to the exhaust vent)	2690mm
Front Wheel Tread	1455mm
Rear Wheel Tread	1520mm
Axle Base	2316mm
Min. Ground Clearance	350mm
Structure weight	2940kgs
Front ballast	250
Rear ballast	170kg,340kg,510kg,(optional)
Rated traction force	1520kgs
Engine Model	4108
Engine Type	4-Cylinder
Cooler type	Water
Stroke	4 Stroke
Rated Power	59kw
Rated Speed	2200r/min
Fuel	Diesel
Front Wheel Tyre	8.3-24
Rear Wheel Tyre	14.9-30
Clutch	Dual-stage clutch
Steering	Power steering
Transmission Type	8+2 or (8+2)×2 with creeper shift
Suspension Type	3-point links
Type and Rev	Semi-independent Type 540/1000
Spline Size	F35 Rectangle Spline with 6 teeth

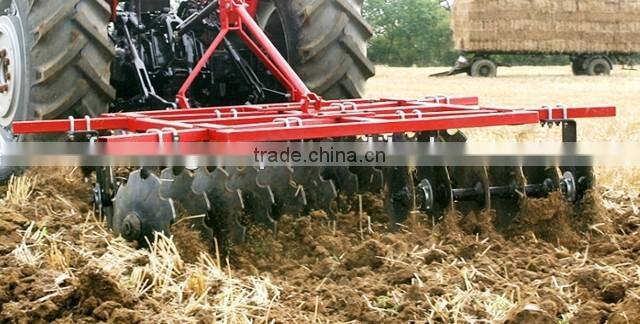

Harrow

Sub soiler

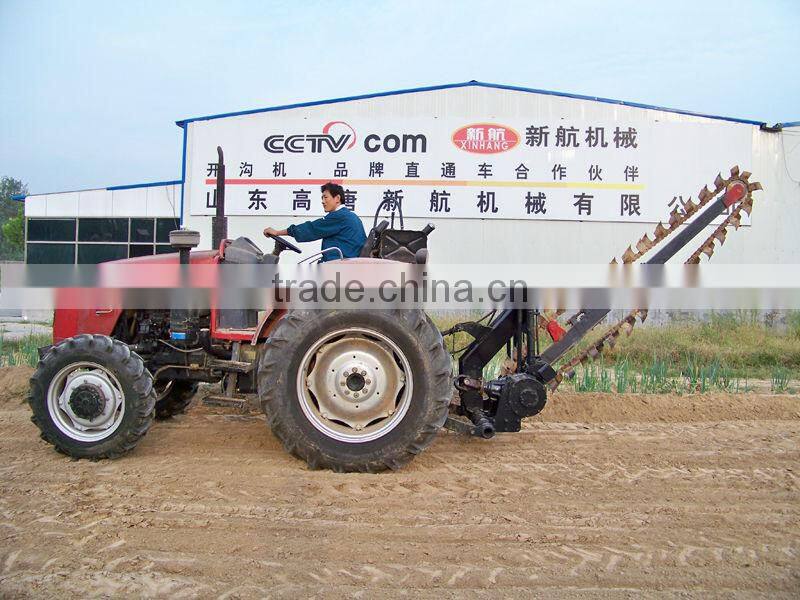

Ditching machine

Popular accessories
