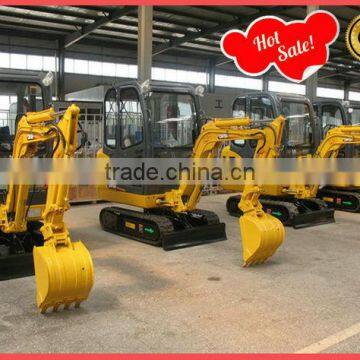

Hot Sale Crawler Excavator 18-7B With CE

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	CT
Model Number	GY18-7B	Condition	New
Moving Type	Crawler Excavator	Operating Weight	1800KG
Bucket capacity	0.06-0.1CBM	Maximum Digging Height	3149mm
Maximum Digging Depth	2091mm	Max Digging Radius	3680MM
Rated Speed	2.15/3.83KM/H	Certification	CE
After-sales Service Provided	No overseas service provided

1.crawler excavator GY18-7B
2.engine:Japan Yanmar 3TNV82A diesel engine
3.rated power:16KW
4.bucket capacity:0.06-0.1cbm

Specifications	Item	GY 18-7B
	Power/speed	16KW/2200rpm
	Operating weight	1.8t
	Bucket capacity	0.06-0.1m3 Standard
	Bucket digging force	11.44kn
	Arm digging force	8.04kn
	Pressure of Hydraulic system	16mpa
	Hydraulic pump	10+10 (ml/r)
	Swing Speed	10.6rpm
	Traveling speed	2.15/3.83km
	Tracking force	11.54kn
	Grade ability	30°
	Ground pressure	23 kpa
	Swing angle of arm	Left 65°/right 52°

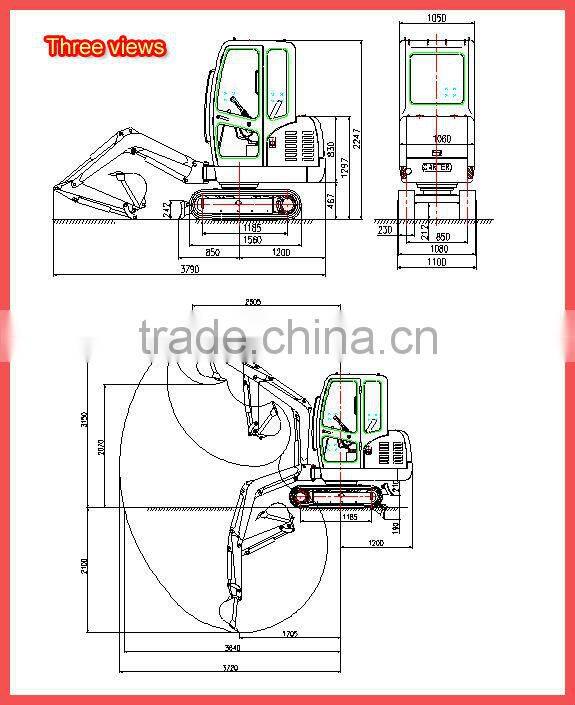

Dimensions	Undercarriage Width	1050 mm
	Center clearance between tracks	850 mm
	Undercarriage Width	1080 mm
	Length on the ground	1260 mm
	Dozer height	242 mm
	Dozer width	1100 mm
	Dozer lifting height	210 mm
	Dozer cutting depth	192 mm
	Rear swing radius	1200 mm
	overall length for transportation	3760 mm
	Overall height	2250 mm
	Clearance under upper structure	467 mm
	Clearance under engine cover	1297 mm
	Front swing radius	1612 mm
	Track width	230 mm
Working range	Max digging height	3149 mm
	Max. digging radius	3680 mm
	Max. digging depth	2091 mm
	Max. dumping height	2076 mm
	Max digging radius on the ground	3602 mm
