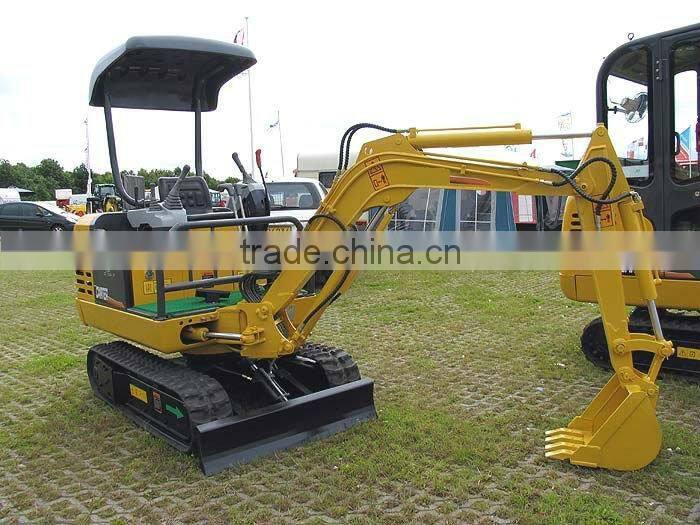

Mini Excavator CT18-7B,tilting Bucket

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	CT
Model Number	18-7	Condition	New
Moving Type	Crawler Excavator	Operating Weight	1950KG
Bucket capacity	0.06-0.1CBM	Maximum Digging Height	3149mm
Maximum Digging Depth	2091mm	Machine Weight	1700KG
Max Digging Radius	360	Certification	CE
After-sales Service Provided	Overseas third-party support available

Item	CT18-7
Power/speed	16KW/2200rpm
Operating weight	1.7t
Bucket capacity	0.05-0.1m3 0.06M3 Standard
Bucket digging force	11.44kn
Arm digging force	8.04kn
Pressure of Hydraulic system	16mpa
Hydraulic pump	10+10 (ml/r)
Swing Speed	10.6rpm
Traveling speed	2.25/3.83km
Tracking force	11.54kn
Grade ability	30°
Ground pressure	23 kpa
Swing angle of arm	Left 65°/right 52°
Undercarriage Width	1050 mm
Center clearance between tracks	850 mm
Undercarriage Width	1080 mm
Length on the ground	1260 mm
Dozer height	242 mm
Dozer width	1100 mm
Dozer lifting height	210 mm
Dozer cutting depth	192 mm
Rear swing radius	1200 mm
overall length for transportation	3760 mm
Overall height	2250 mm
Clearance under upper structure	467 mm
Clearance under engine cover	1247mm
Front swing radius	1612 mm
Track width	230 mm
Max digging height	3149 mm
Max. digging radius	3680 mm
Max. digging depth	2091 mm
Max. dumping height	2076 mm
Max digging radius on the ground	3602 mm
