Home > Products > Feed Production Line > Computer Controlled 8-10 T/H Fully Automatic Pig Cattle Chicken Feed Pellet Making Line

Computer Controlled 8-10 T/H Fully Automatic Pig Cattle Chicken Feed Pellet Making Line

FOB Price

US$ 150,000 - 260,000 / Set

1 Set(Min. Order)

Port The Pig Feed Pellet Making Line will be delivered to Qingddao port by containers
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	RICHI	Model Number	SZLH420 Pig Feed Pellet Making Line
Type	Feed Pellet Machine	Voltage	The voltage of Pig Feed Pellet Making Line is 380V 50HZ
Power(W)	about 400kw	Dimension(LWH)	151525m
Weight	20000 kg	Certification	CE ISO SGS
Warranty	The warranty of cattle feed production line is one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Fully automatic Cattle Sheep Feed Pellet Production Line including the following systems:

1. Cleaning and Crushing system;

2. Batching and Mixing system;

3. Pelleting, Cooling and Crumbling system;

4. Pellet sieving and Packing system

1. Cleaning and Crushing system.

As we all know that all the raw materials we get always mixed with some kinds of impurities, and they will affect the quality of the final pellets and bring damage to the machines. So we have to remove them before sending to the hammer mill. The cleaning machines inclduing the pre-cleaner and the permanent magnetic sleeve.

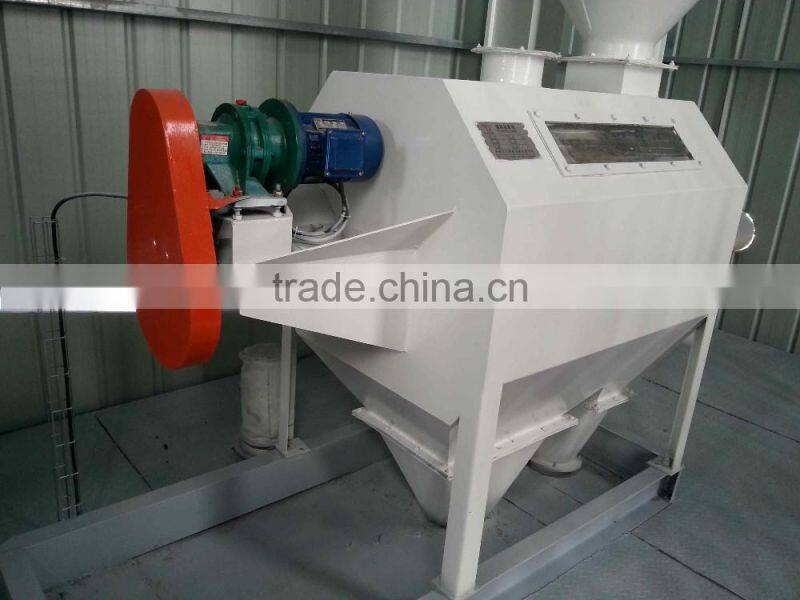

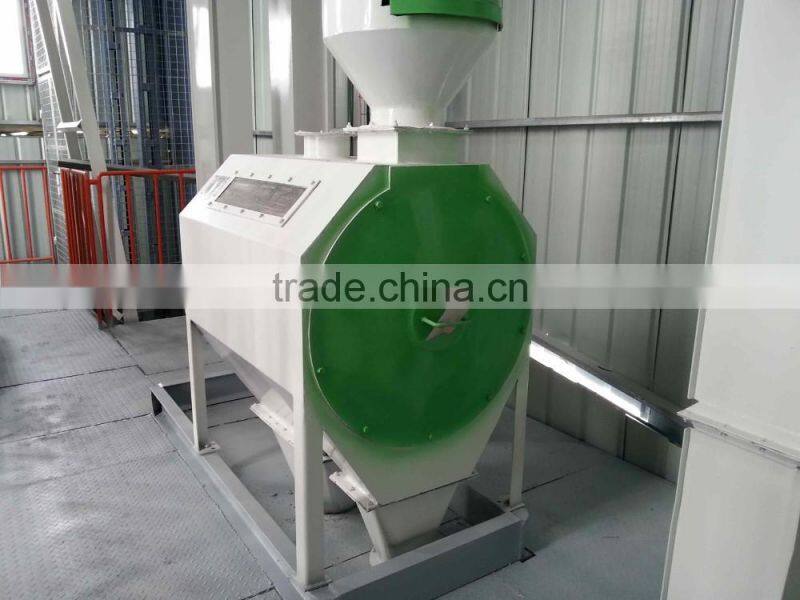

Drum Type Pre-cleaner.

This machine is used to clean the impurities mixed in the grains.

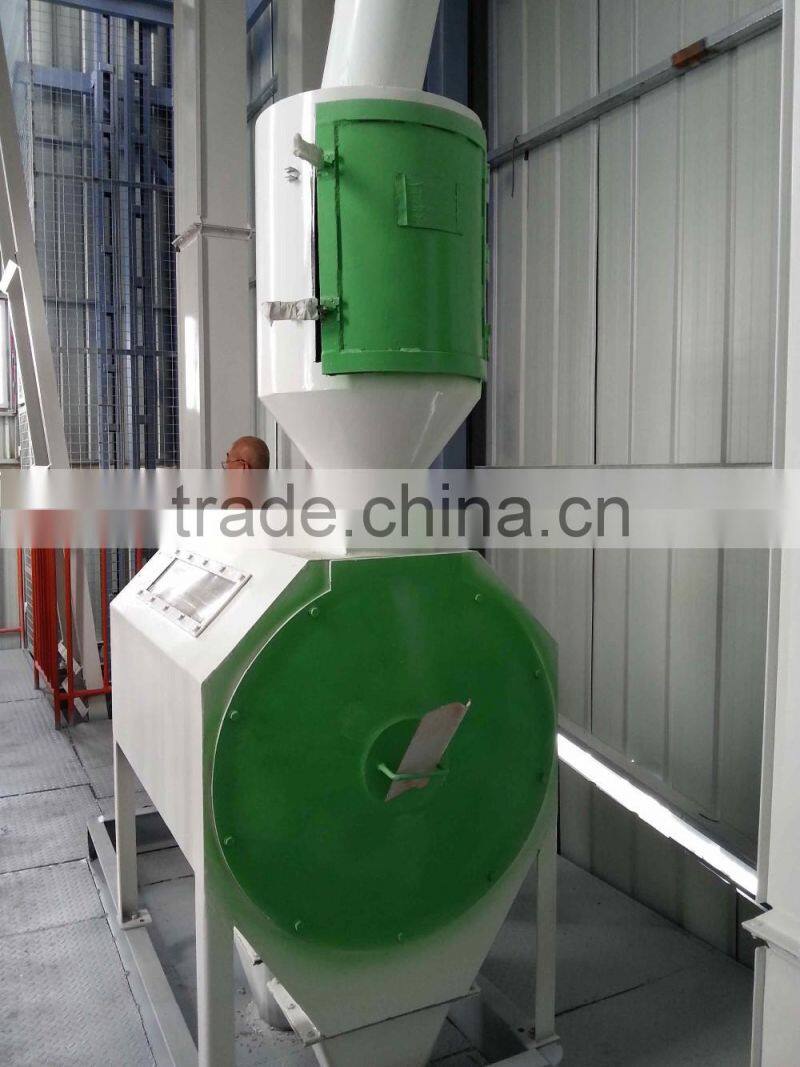

Permenant magnetic sleeve.

Remove the iron, steel, nails.

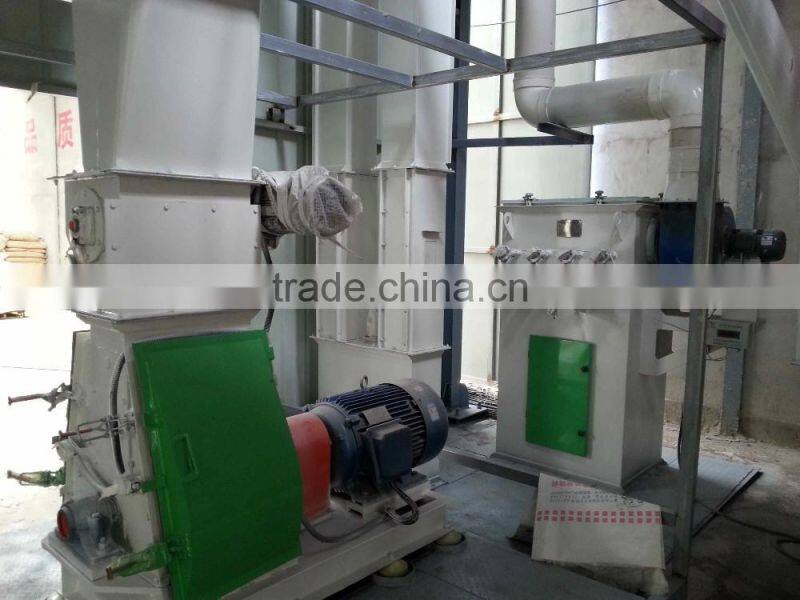

Hammer mill.

Crush the materials to 3mm size powder.

2. Batching and Mixing system

To make high quality animal feed pellets, all the factories have their own formula. Each animal feed making formula includes several different materials. This systems realizes the volume of all the materials flow into the mixer exactly according to the formula.

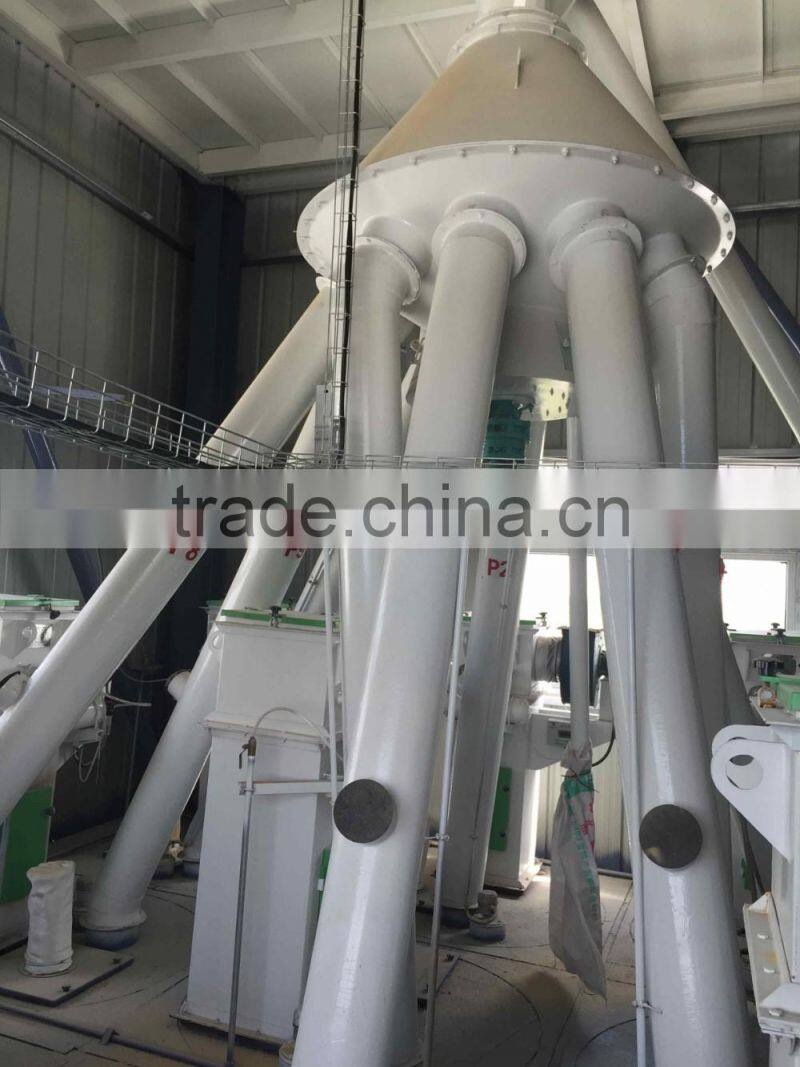

Rotary distributor.

The function of this machine: deliver the materials to the pointed silos for storage .

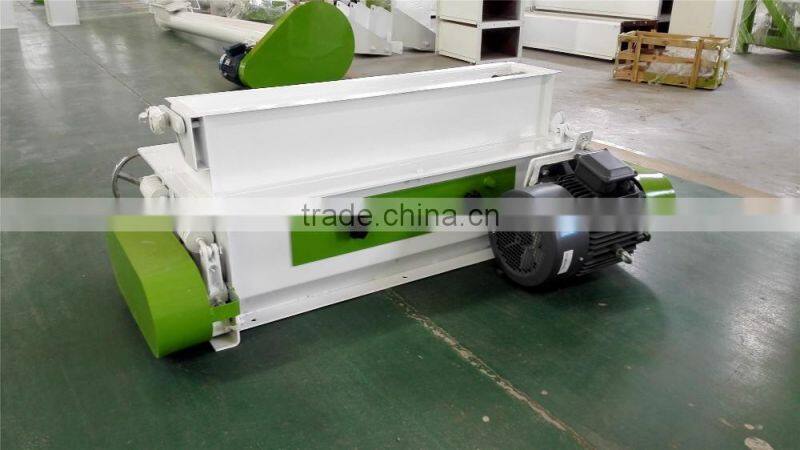

Outlet screw conveyor.

The conveyors are under the silos, used to deliver the materials to the batching scale. One is made by Stainless steel, it is used to deliver the vitamins or minerals etc.

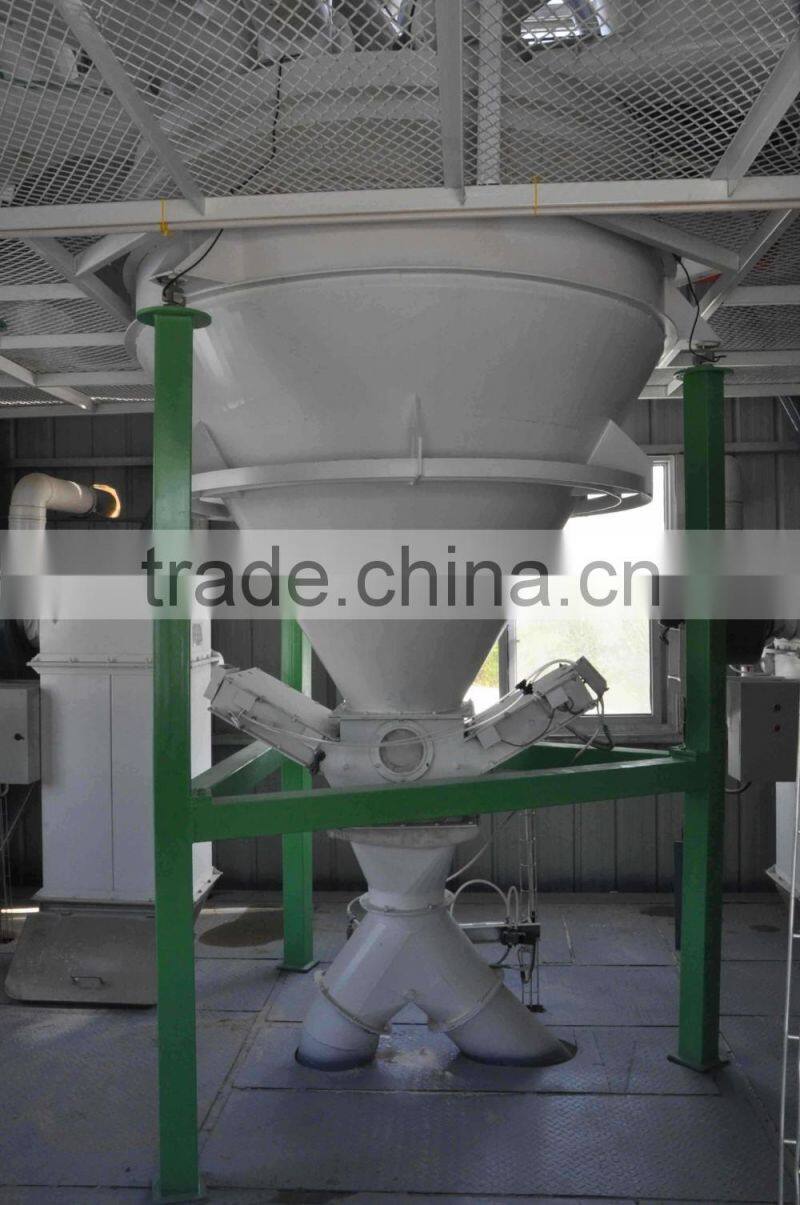

Batching scale.

Controled by the computer, one batch 1000kg, when reaches this capacity, it will aautomatically dropped to the bins under it.

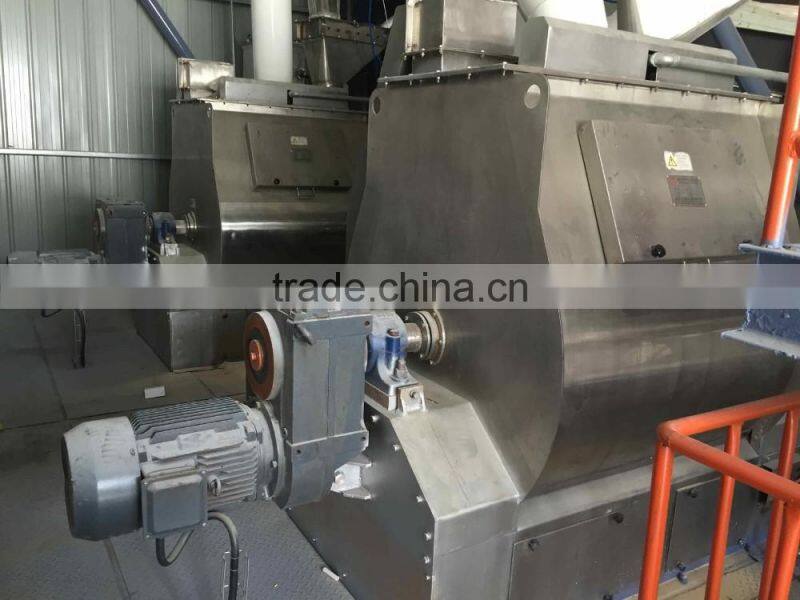

Stailess steel mixer.

This Stainless steel mixer is used in the premix production line.

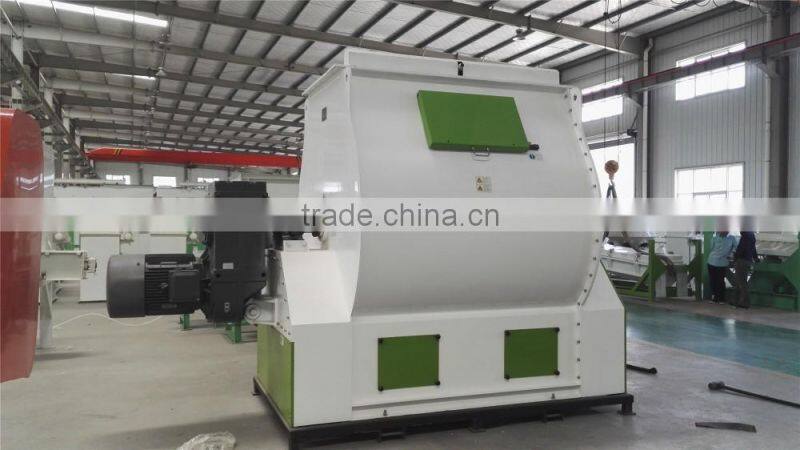

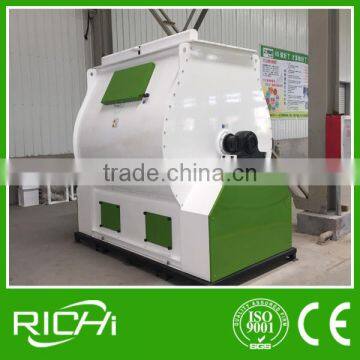

Mixer.

Single shaft high efficiency mixer.

Capacity: 1000 kg/batch.

CV is more than 97.7%.

Low power consumption, high efficiency

3. Pelleting, Cooling and Crumbling system;

In this system, the boiler system is needed. Hot seam is required for the pellet machine. The function of the hot steam is to kill the becterias and to soft the materials, which increases the quality of the final pellets and the capacity of the whole production line.

Cooling machine is needed to cool down the pellets to the room temperature, and to reduce the moisture, to make the pellets suitable for long time storage;

Crumbling machine is to break the pellets to small sizes, specially used in the chicken feed pellet production line, to make pellets for small baby chickens;

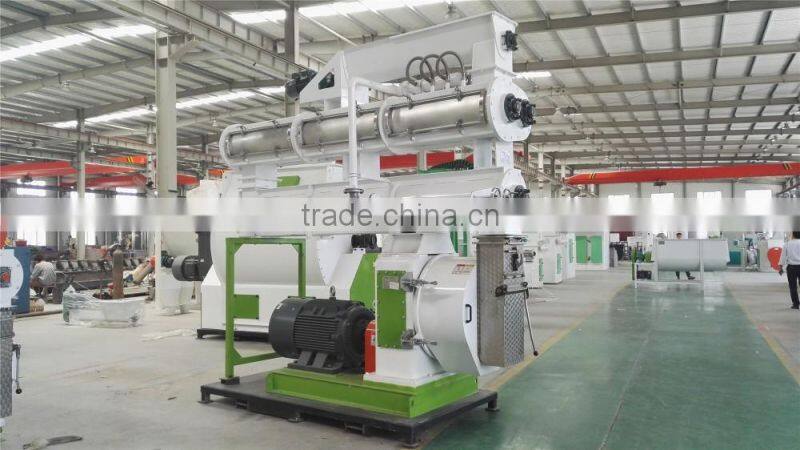

Pellet machine.

1. SZLH420, capacity 8-10 t/h;
2. Siemens motor
3. Stainless steel conditioner

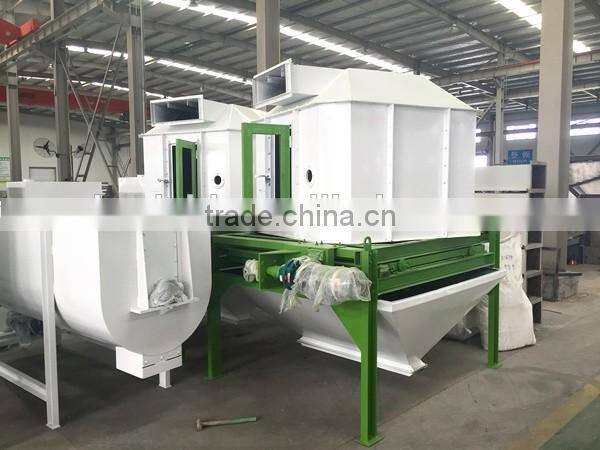

Cooler and crumbler.

Cooling machine is put on top of the crumbler.

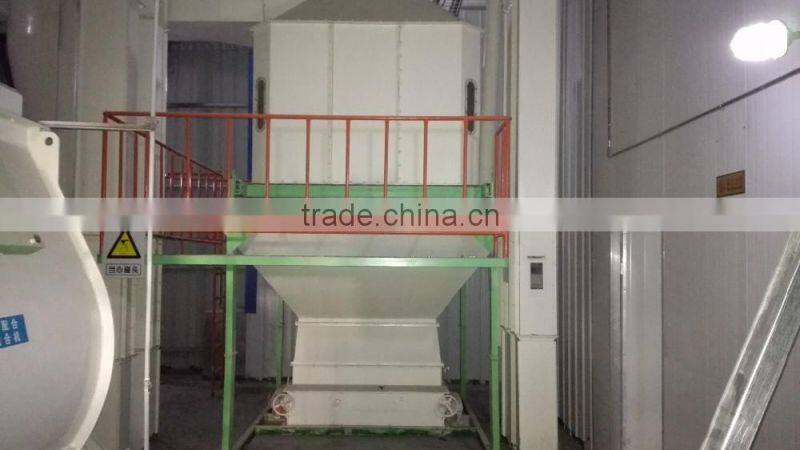

Cooling machine.

To cool down the pellets to the room temperature, and to reduce the moisture.

Crumbling machine.

To break the pellets to small sizes.

4. Pellet sieving and Packing system.

Rotary screener and the automatic packing machines are the main parts of this system in this Cattle Sheep Feed Pellet Production Line.

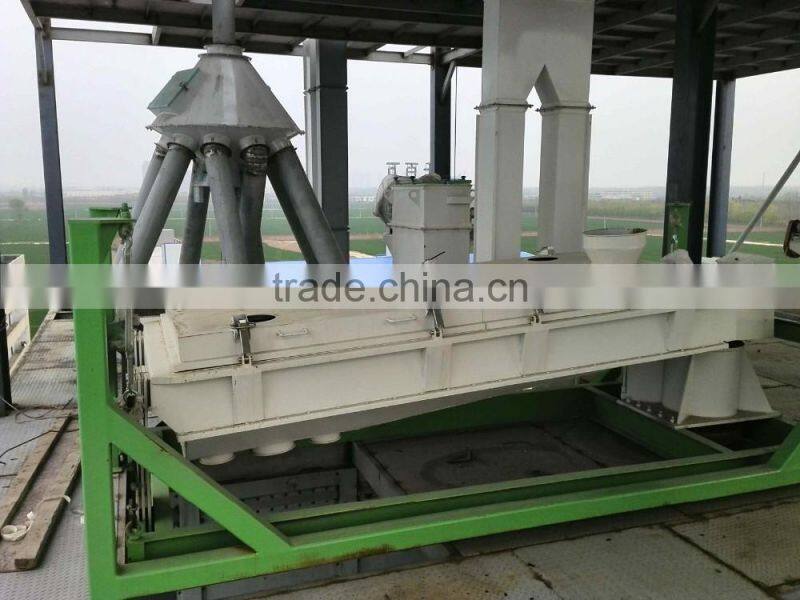

Rotary Screener.

It has three outlets, the qualified pellets will go directly to the packing machines. The biggers will go back for re- breaking; the smallers will go back for re-pelleting.

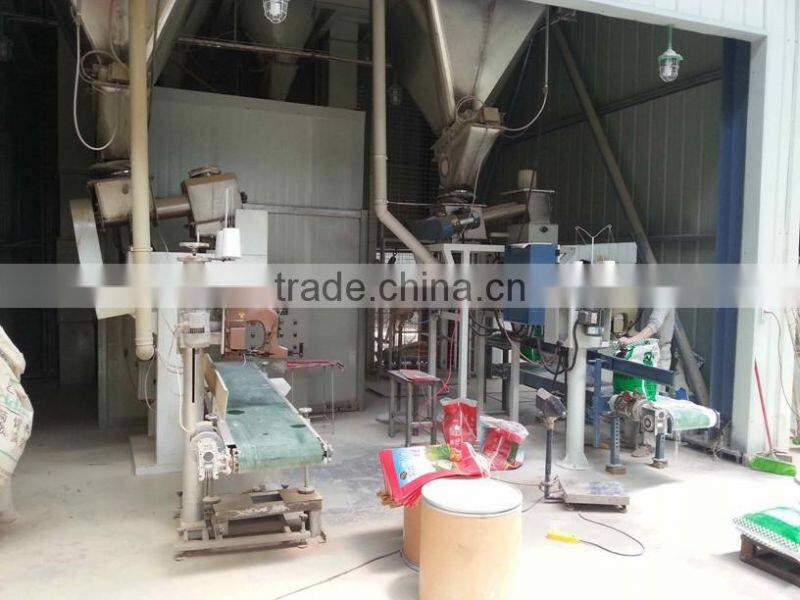

Packing machine.

You can set the capacity for each bag. One or more persons are needed for packing and delivering the packed bags.

Related machines

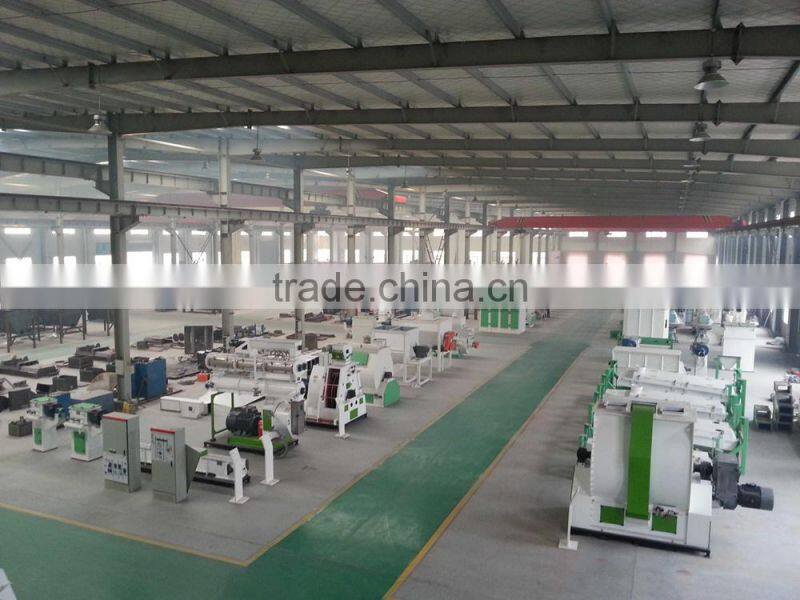

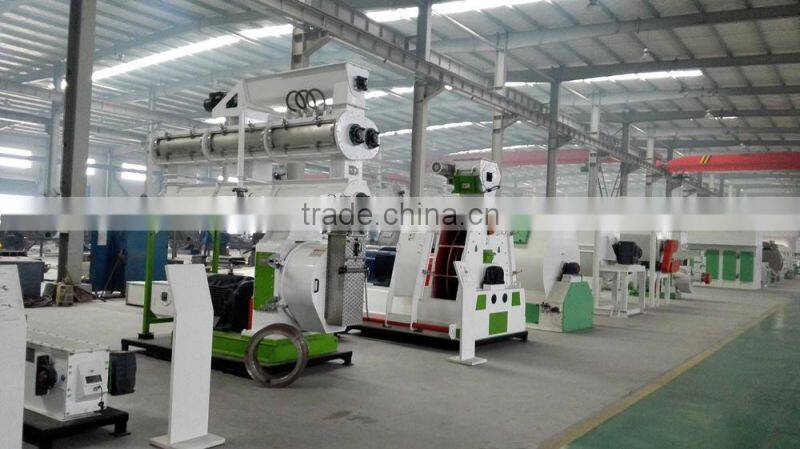

Our factory

Henan Richi Machinery Co., Ltd was established in 1990.

Our company is a qualified manufacturer which specializes in developing, producing and marketing topclass Pig Feed Pellet Making Line, feed pellet production lines, feed curing machines, various biomass granule production lines designation,manufacturing and installation.

There are over 500 workers in our company, among them there are about 80 engineers and over 100 technician.

Our outstanding Richi Team and strict and scientific management system, which enable us to supply high quality and convenient turn- key projects to our clients.

Delivery pictures

Steel packing

The single machine will be packed in the steel structure cases.

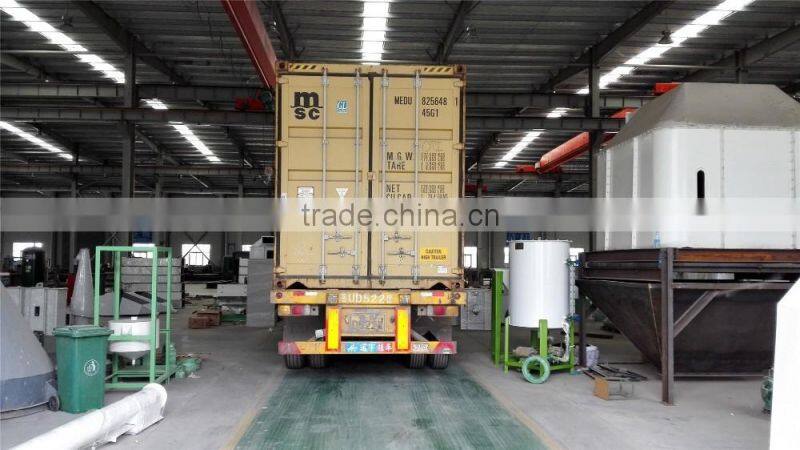

Containers

The complete production line will be delivered by the containers.

Hot selling models

1-2 T/H cattle feed production line
Dimension	13(L)3(W)8(H)m
Capacity	1-2 t/h
Introduction	This Small cattleFeed Pellet Line can make poultry feeds and livestock feeds, also can make powder feeds and pellet fees. Pellet size is from 1.5-8.0mm

3-5 t/h sheep feed production line
Dimension	9(L)5(W)12(H) m
Capacity	3-5 t/h
Information	This line can make poultry feeds and livestock feeds, also can make powder feeds and pellet fees. Pellet size is from 1.5-6.0mm
