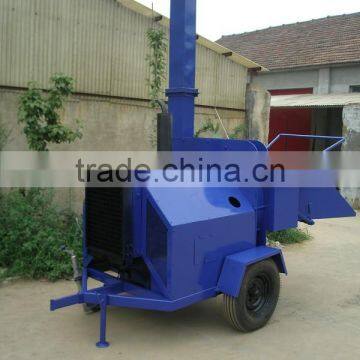

wood crusher with diesel engine Hydraulic feed system

Our WC-6 and WC-8 PTO wood chipper has gotten CE certification already, it is the most

reliable wood chipper on the market, at the guaranteed lowest price for dealership. It can

easily tear through a 6" or 8" limb, mulch a pile of leafs, and shred brush. This chipper will

work on any tractor from18HP up to 45HP with a 3 point hitch.

The wood chipper features a fully adjustable debris deflector on the exhaust chute that

allows you to easily raise or lower the angle of the chip stream. Also have 360 degree

rotary implements on exhaust pipe, so the exhaust pipe can be easy rotary 360 degree.

This unit operates off a 540 RPM PTO shaft, which is included with the chipper. This tractor

implement will work on just about any tractor.

No Need to burn or waste your branches and clippings - NOW you can make your own

chip/mulch for your garden assisting growth, minimising water demand, protecting plants

saving money.

Uses:
Orchard Clippings
Storm Clean Up
Garden Maintenance
Landcare
Recycle Garden Waste
PTO Driven Standard Spline
Heavy Flywheel
Multi Belt Drive
Removable Cutting Blades
Full Safety Guards
Adjustable Feed Roller
3 Point Linkage
Variable Exit Port

Our wood chipper is also the best sold PTO wood chipper in the US market (also named as

Jinma wood chipper). It is price compeitive compared with other brands. If you are in the

market to buy an affordable or cheap PTO wood chipper with good quality, then you have

the right choice. Our sales volume in 2009 for overseas market is 3000 units.

Model WC-6
Dimensions(l*w*h) 1680*1400*1620mm
Structure weight 370kg
Radius of blade disc 302mm
Chipping diameter 150mm
Working efficiency 7-8m3/h
Pto turnning speed 540r/min
Pto spline 6*8*520mm
Power required 25-30HP

Model WC-8
Dimensions(l*w*h) 1680*1400*1620mm
Structure weight 370kg
Radius of blade disc 320mm
Chipping diameter 200mm
Working efficiency 8-9m3/h
Pto turnning speed 540r/min
Pto spline 6*8*520mm 6*8*520mm
Power required 25-30HP 30-45HP
