CE approved pine wood corn stalk hammer mill with cyclone/wood pellet crusher/animal feed grinder

specification:

1.Factory supply directly.

2.With CE and ISO certificate.

3.Warranty:one year.

4.High quality & good reputation.

5.Moisture Content:10%-20%.

Technical Parameters

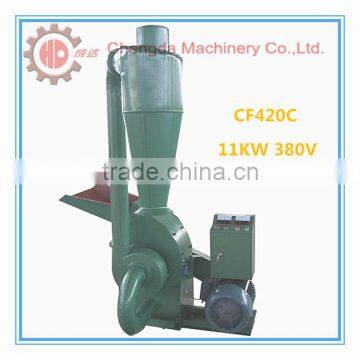

       CF420C hammer mill

Introduction to CF420C electric hammer mill

1. With capacity 200kg---500kg/h, this hammer mill can satisfy a large production demand on a daily basis. 2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill. 3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen 4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part. 5. The angle of the screen can be 180° which allows for high throughput at lower power consumption. 6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing. 7. The rotor of hammer mill operates at 3,500 RPM to produce high hammer tip speed, thus the finished powder can be uniform with a smaller size.

Knowing your machine

Advantage of CF420C hammer mill

• Driven by electric motor, the household hammer mill is easy to operate.
• It will reduce lumber up to 50 mm diameter into 3-5 mm generally.
• The screen sizes can be offered as per your request.
• Smallest capacity makes this CF158 wood hammer mill most suitable for making your own wood pellets and feed pellets.

Application of CF420Chammer mill

1. This smallest wood hammer mill is most suitable for home use with small capacity and tiny dimension.
2. Equipped with hammers, this wood hammer mill is more suitable to crush soft agricultural crops such as wheat stalks, alfalfa, corn straws, switch grass, peanut soybean shell and bamboo.
3. A cyclone can be equipped to collect finished wood particles to prevent dust leakage.
4. This wood hammer mill can be used in home-made wood pellet production which can be used as animal bedding, heat fuel and fodder.

Kinds of raw material

Where you can used for with the final pellets

Wood hammer mill working principle

There are three main parts in the whole wood hammer mill: feed hopper, grinding cell, winding system. Cyclone is sold separately which can be used to collect wood particles and dust and reduce its harm to human.

• While working, wood material is fed into the crushing chamber though feed hopper. Crushed by high speed rotating hammer, large particles hit the gears with strong impact force. Got repetitive collision and friction press from hammers and gears, raw material is gradually being ground into small chips and sawdust.
• These light wood particles are blowing out wood hammer mill with the help of winding machines. If there is not cyclone on your machine, light wood chips will be blowed everywhere and you should place a dust bag to gather them. If your wood hammer mills are equipped with a cyclone, these crushed wood chips will be automatically separated from strong airflow.

How to choose a good quality wood hammer mill

A wood hammer mill is usually applied in wood pellet production for fuel pellets and animal bedding. As a pre-processing device in wood pellet processing line, the quality of wood particles crushed by wood hammer machines will directly effect the final wood pellets production. So what’s the best wood hammer mill? How to choose a suitable wood hammer mill?

---Choose a reliable wood hammer mill manufacturer.

achines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheaper compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

--- With or without a cyclone

Our CF158 wood hammer mill with smallest power and compact structure is designed for home use. Due to the low yield and cost, there is no need to buy a professional cyclone to collect wood particles. While for other large capacity wood hammer mill, we recommend to equip a cyclone with your hammer mill. These micro particles mixed in air will do a harm to your lungs and breathing system. A cyclone will collect these mixed air firstly and then separate wood chips from air with the help of gravity.

--- After-sale Service

fter-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Chengda Machine can offer you 12 months warranty for main parts to protect your interests and save your money.
