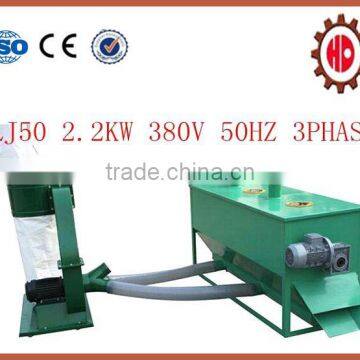

High performance horizontal pellet cooler ,wood pellet cooler, feed pellet cooler

Specifications

1.Power:2.2kw 380v 50hz 3phase

2.Capacity:150-350kg/h

3.Packing size:138x78x95cm

4.N/G weight:150/180kg

5.Warranty: 1 year

Combined Cooler and Sieve

Combine Cooler and Sieve is base on the drum of Rotary Sieve which is made up of Drum Sieve and Frame. There is one certain degree between the Rotary Drum Sieve and ground. The outside of the Sieve is covered by closed steel to reduce the noisy pollution. On the adjustable speed system, the drum sieve is rotating on certain speed; the pellet is separated and cooled from top to bottom on the rotating of Drum Sieve. The fine powder is discharged from the front of Drum Sieve, and the good pellet is outlet from the back of Drum Sieve. During the cooling and sieving process, the rotating is evenly, low impulsion and vibrating, and stable. The installation of Combined Cooler and Sieve is easy which can be directly put on the ground, floor board or under the storage. This machine is easy to closely collect dust and maintain.

Main Technical Parameter of Combined Cooler and Sieve

Operation and maintain on Combined Cooler and Sieve as follows:

1. The Combined Cooler and Sieve only can start under the situation without any loading. In another word, the operator must guarantee without any material. Only after the Combined Cooler and Sieve start for a while, the material can be feeding.

2. When feeding material into Combined Cooler and Sieve, the speed must be slow till to the rated

capacity gradually, the feeding must be evenly. Otherwise the material will be clogged and damage the machine.

3. In order to guarantee the starting of Combined Cooler and Sieve without any loading, before the Combined Cooler and Sieve stops work, all the material inside the Combined Cooler and Sieve must be discharged completely without any resting.

4. Please prohibit any big material inletting the Combined Cooler and Sieve mixing with the small

material. For the big material will be clogged and damage the machine.

Certification

Packing & Delivery

About our company

Laizhou Chengda Machinery Co., Ltd. is one of the most earliest manufacturer of wood /feed machinery in China.

With a wide range, good quality, favorable prices and stylish designs,our products are extensively used in agriculture and other industries.

Please feel free to visit our production facility in Laizhou Shandong, we sincerely welcome tours!
