Home > Products > Test Sieve > sieves shaker of xinxiang hengyu
sieves shaker of xinxiang hengyu
- Shanghai Qingdao or request
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | HENG SHUN | |
| Model Number | HY-200 | Power | Other, mechanical | |
| Usage | Vibration Testing Machine |
Product Description

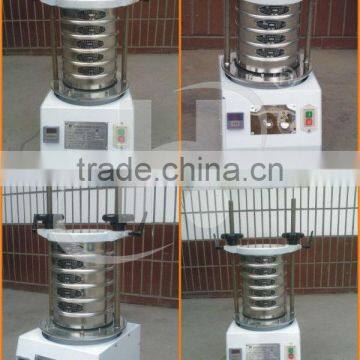

Vibrator sieves shaker of xinxiang hengyu
Full Technical support and Spares Service to keep your Lines Running.
vibrator sieves shaker from Hengyu
• CE Certificate
• OEM and Very Reasonable Price
• Sieve from 5mm-75 Micro
• 365 days warranty
Functions: determines the particle size distribution, whatever particles or powder.
Advantages:
1.This type of test sieve is primarily used to determine particle size range for dry materials,whatever particles or powder.
2.Sieve sizes range from 4 mesh(4750micro opening) to 500mesh(25 micro opening).
3.Typically requires 50-150g of sample material.
Technical data
No. | item | unit | data |
1 | diameter | mm | φ200 |
2 | layers | layer | 5 |
3 | vibration frequency | n/min | 1400 |
4 | amplituter | mm | 1-4 |
5 | vibration force | KN | 1-4 |
6 | under pan level | mm | ≤0.6 |
7 | power motor rotate speed | km r/min | 0.12 1400 |
8 | overall dimension | mm | length*width*height 370*350*650 |
9 | time | min | 1-15 |
Machine and its Spare parts
