High precision 200mm stainless test sieves machine
- shanghai qingdao tianjin
- T/T D/P D/A Credit Card
You May Like
-
High precision 200mm lab analysis sieve machine
-
China stainless steel 200mm diameter laboratory sieve test
-
China good quality 200mm diameter lab vibratory screener
-
HY series 200mm laboratory test equipment
-
HY brand multilayer lab grading analysis machine
-
High precision 200mm laboratory analysis equipment
Product Details
| Condition | New | Type | Circular | |
| Application | Other, particle size analysis | Place of Origin | Henan, China | |
| Brand Name | HENG SHUN | Model Number | HY-200mm-8S | |
| Voltage | 220v, 380v or as your requirement | Power(W) | 0.12kw | |
| Dimension(L*W*H) | 370*350*650mm | Weight | 37kg | |
| Certification | ISO, CE, BV |
Product Description
HY200 models are both suitable for the particle size analysis of grains, powder and the solids content test of the liquid in laboratory and Quality Control Department. It has features of low noise, high efficiency and precision.
Product Advantages:
1. Suitable for dry or wet sieving
2. Excellent separation efficiency even with short sieving times
3. Sieve stack up to 450 mm height
4. Free adjustment of all process parameters (time, amplitude)
5. Patent vibrating motor drive with 3D motion
6. Silent operation, ergonomic design
7. Comfort clamp available
Structure
Technical data
No. | Item | Unit | Data | |
1 | Sieves | Layer | 8 | |
2 | Diameter | Mm | 200 | |
3 | Material size | Mm | 0.038 – 3 | |
4 | Noise | Db | Less than 50 | |
5 | Vibration amplitude | Mm | 3 – 5 | |
6 | Vibration motor | Voltage | V | 220 – 240 |
Rotate speed | Rpm | 1400 | ||
Power | KW | 0.12 | ||
7 | Overall dimension ( length*width*height ) | Mm | 370x350x650 | |
8 | Net weight | kg | 37 | |
Working principle
All laboratory analysis equipment of HY200 type work with an vibration motor drive. This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface.
The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.

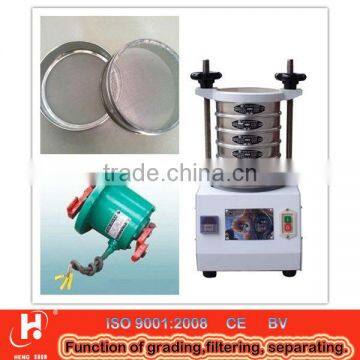

Product components show
Picture of sieves
Picture of vibrating motor
Picture of machine base
If you need more information, please contact us now!
We can accept your special customization.
