Diamond Dotted Paper
- XINGANG PORT
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | ENC | |
| Model Number | DDP | Type | Insulation Paper | |
| Material | Other, Paper,Epoxy resin | Application | Other, Oil transformers | |
| Rated Voltage | Techinical data | Tensile Strength | Technical data |
Product Description
Specifications
Diamond dotted PaperThickness:0.05mm - 0.50mm
Width : 1000mm or in smaller size (tape)

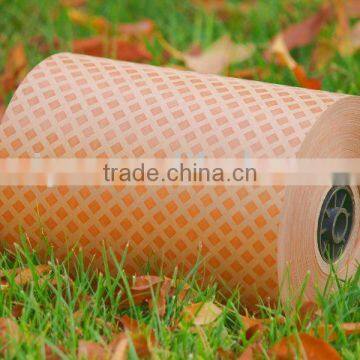

The Diamond Dotted Paper
Alias such as: epoxy adhesive diamond Paper, Diamond Dotted Presspaper, Double sided Diamond Pattern Paper, DDPP, DPRCP, D.D.P, DPP, Diamond Dotted Insulating Paper, Varnished Paper, etc.
It is used in oil-immersed transformers for the insulation between of coils.
It is a kind of material with inertia, dry and no conglutination at normal temperature (below 30 degree C), The Diamond Dotted Paper will make the electric conductor forever felt up as a hard unit under the high temperature by its internal latency substance. When the temperature is rising up to 90 degree C, The Diamond Dotted Paper begins one-off thaw and then one-off solidification. When to keep the temperature at 90 degree C for 90 minutes, the epoxy resin would paste on neighboring cable and paper safely. The felt intensity is as high as to 70psl at 100 degree C (The value at least is equal to 0.275Mpa, America standard).
ITEM | TYPICAL VALUES
| MATTER OF FACT
|
Caliper (inch) (millimeter) | 0.003 0.08 | |
Thickness mm | ±0.008mm | 0.84(0.087,0.091,0.085) |
Width mm | 1050±5mm | 1041 |
Apparent density g/cm3 | 0.85 to 1.0 | 0.92 |
Moisture content , percent | 4.0 to 8.0 percent | 5 |
PH water extract | 6.0 to 8.0 | 7.5 |
Ash content, maximum | 1 percent | 0.43 |
Elongation MD CMD | 4 9 | 5 9.5 |
No-pollution oil of transformer | Non-pollution | Non |
Coating thickness per side mm | 0.006 to 0.012 | 0.008 |
Tensile strength,N/mm2 Machine direction Cross machine direction |
90 30 |
95 40 |
Mullen burst strength min (Psi) | 40 | 45 |
Dielectric breakdown (volts/layer ,dry test) | 750 | 887(900,880,880) |
Bond strength: Kpa | 450kpa | 650 |
