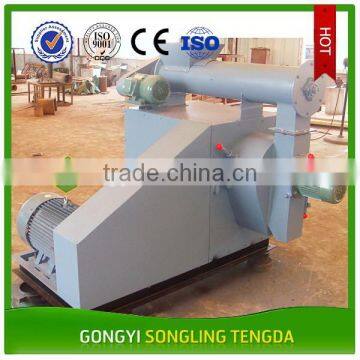

Best price Wood Pelletizing Machine with 500kg/h

Best price Wood Pelletizing Machine with 500kg/h

What is ring die pelletizing machine?

The two principle designs of particle making machine are either flat die particle machine, or in this case a ring die particle making machine. Ring die particle making machine get the name for the circular "ring" shape of their extrusion die. There are small wheels in the middle of the ring ride on the die and force the raw material through the extrustion hoels.

There are almost 20 kinds of aperture molds in this machine, they apply to the different material granulation, to achieve the best effect.

How are the pellets made by the ring die pelletizing machine?

It's easy to make the biomass particle,small size material feeding into the particle machine, two rollers woll press thematerial into the 6or8mm stainless steel ring die to form a solid particle. However, different material needs different ring die, mainly depending on the material compress ratio, we design the taper and thickness to creat press for the lignin to reach sufficient temperature and bind the material together.

Application scope of pelletizing machine:

The model has a simple structure, it can be widely used in small aquaculture, grain feed factory, farm, poultry farm, as well as individual farmers.

The machine has the following characteristics:

1.Feed processing by the models, the temperature rise moderately well keep raw material of various trace elements, palatable, animal feed, in favor of digestion and absorption of various nutrients.
2.Particle constituents of uniform, uniformity, the surface is smooth, diameter can transform between 1.5-6mm (die) needs to be replaced, length can be adjusted between 5-20mm, and the particle density, for easy storage and transport, suitable for a variety of cultural objects in different period of need.
3.Processing fish feed energy remains in the water for extended periods of time, improving the utilization of the feed. To prevent water pollution.
4.The model on a very wide adaptability of the item, to process all the different requirements of full price feed.
5.The type of powder with low moisture content can be processed feed, but also can process a higher water content of live feed.

Feed pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.

Raw materials to make pellets:

Technical parameters of pelletizing machine:

Final products of pelletizing machine:

Spare parts of wood pelletizing machine:

Whole production line of wood pellet making:

Any interest in our pelletizing machine, plz feel free to contact us by the following contact information. We are here ready to help you, welcome!
