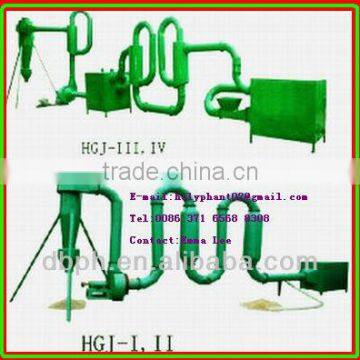

HGJ pipe sawdust dryer

FOB Price

USD $1,000 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drying Equipment
Place of Origin	Henan, China	Brand Name	HYPH
Model Number	HGJ-I,II,III,IV	Voltage	380V
Power(W)	4-15kw	Dimension(LWH)	200.852.2m
Weight	2000-4500kg	Certification	ISO,CE
Warranty	one year

Product Description

Specifications

1.High dry capacity, smooth rotation,
2.Low energy consumption,
3.Easy operation, high output

Working Principle

In the dryer, high speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream

speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large, so the heat transfer rate is high.

It's peculiarly suitable for drying heat sensitive material like sawdust, rice husk, milled wheat straw, milled cotton/corn stalks etc. Also it is used for dry the grain better.

The HGJ Series dryer has the feature of low cost and high efficient. It can reduce moisture from 40-45% to 8-12%.

Fuel for the furnace: wood waste, coal, waste oil, etc

Main Data

Model	HGJ-I	HGJ-II	HGJ-III	HGJ-IV
Capacity-kg/h	300-500	600-800	1000-1500	2000-2500
Diameter of raw-mm	< 3mm & < 5mm	< 3mm & < 5mm	< 3mm & < 5mm	< 3mm & < 5mm
Air temperature-°C	180°C~250°C	180°C~250°C	180°C~250°C	180°C~250°C
Centrifugal power-Airlock power-kw	4	5.5	7.5-11	11-15
Material in feed	20mm	20mm	20mm	20mm
Consumption-kg/h	10kg/h	20kg/h	25-30kg/h	40-50kg/h
Weight/kg	2000	3000	4500	5500
Dimension-meter	200.852.2m	300.852.5	500.952.7	601.12.9
Moisture-max-°C	35-45	35-45	35-45	35-45
Dried-max-°C	8-12	8-12	8-12	8-12
