2013 high quality electric roaster/roasting for coffee bean/peanuts/sesame/cashew/chestnut/walnut/almond 0086 15038228936

Application and working principle:

Roaster machine mainly used for roasted peanuts, peanut, peanut, walnut, chestnut, almond, swallow beans, coffee beans, sesame, seeds and other granular nuts food. This machine with electric as heat source, the use of conduction of heat radiation principle baking material ;  materials doesn't contact with fireworks when baking, During the baking process material in the drum within the spiral sheet continuously push, form continuous rolling, is heated evenly, effective guarantee the baking quality, color, taste.

Structure and performance:

Composed by the hopper, a out hopper, frame body, thermal insulation layer, internal cylinder body, motor and reducer chain, transmission assembly, electrical cabinet.

Positive rotation roasted, reverse rotary discharge.Heating assembly thermostatic control: normal temperature -300 degrees.

Main Data:

Internal cylinder body,:Stainless steel sieve 3mm

Chain Wheel:6min(19.05) 28tooth  14tooth

Chain:6min(19.05)

Reduction motor:2.2KW

Machine body:carbon steel

One set electrical control cabinet assembly

Bearing pedestal:1511,1510

Bearing:6308,6309

Note: Fuel can be electric, gas, coal and wood.

Model:MHK--1 (the contact part with the raw material is stainless steel)

Capacity:100kg/h

Size:2900*1400*1700

Temperature: 300°C(automatic constant temperature)

Power: 1.1kw  Heating power 18kw

Voltage:380V(50hz)

Weight: 700KG

Model:MHK--2 (the contact part with the raw material is stainless steel)

Capacity:200--300kg/h

Size:2900*2200*1700

Temperature: 300°C(automatic constant temperature)

Power: 2.2kw / the heating power:40kw

Voltage:380V(50hz)

Weight: 1400KG

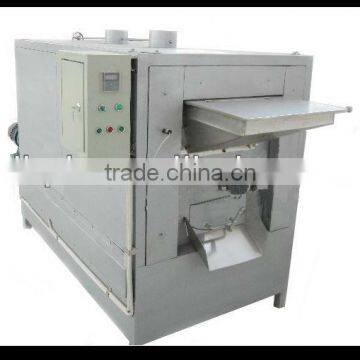

 Detail Pictures:
